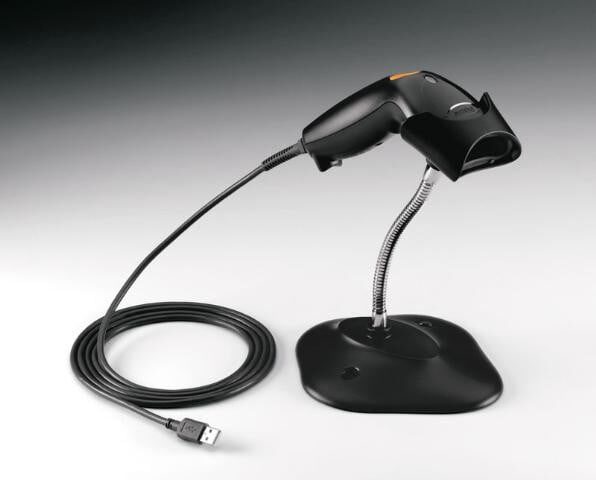

Zebra Symbol LS1203 1D Black

The Motorola Symbol LS1203 is a 1D scanner with a working distance of 26 cm and a maximum read rate of 100 reads per second. It offers standard interfaces such as RS-232, USB, and Keyboard wedge. The scanner comes in black and has certifications including FCC Part 15 B, ICES-003 B, EMC, SMA, and VCCI/MITI/Dentori. It operates at an input voltage of 5 V and has a power consumption of 100 mA. The weight of the scanner is 122 grams.

Scanning

Scanner type
Scanner type
1D
show more


Working distance
26 cm
show more


Read rate (max)
100 reads/s
show more


Light levels (direct sunlight)
5 – 95 lx
show more


Wavelength
Wavelength
650 nm
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-60 – 60°
show more


Tilt angle range
-30 – 30°
show more


Decoding standards
UPC/EAN, UPC/EAN, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (RSS), Chinese 2 of 5
show more

Ports & interfaces

Standard interfaces
Standard interfaces
RS-232, USB, Keyboard wedge
show more

Performance

Product colour
Product colour
Black
show more


Certification
FCC Part 15 B, ICES-003 B, EMC, SMA, VCCI/MITI/Dentori
show more

Power

Input voltage
Input voltage
5 V
show more


Power consumption
100 mA
show more

Weight & dimensions

Weight
Weight
122 g
show more

Packaging data

Cables included
USB
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Logistics data

Harmonized System (HS) code
84716070
show more

Other features

Safety
Safety
IEC Class 1, UL1950, CSA C22.2 No. 950, EN60950/IEC950
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
60 x 180 x 62 mm
show more
