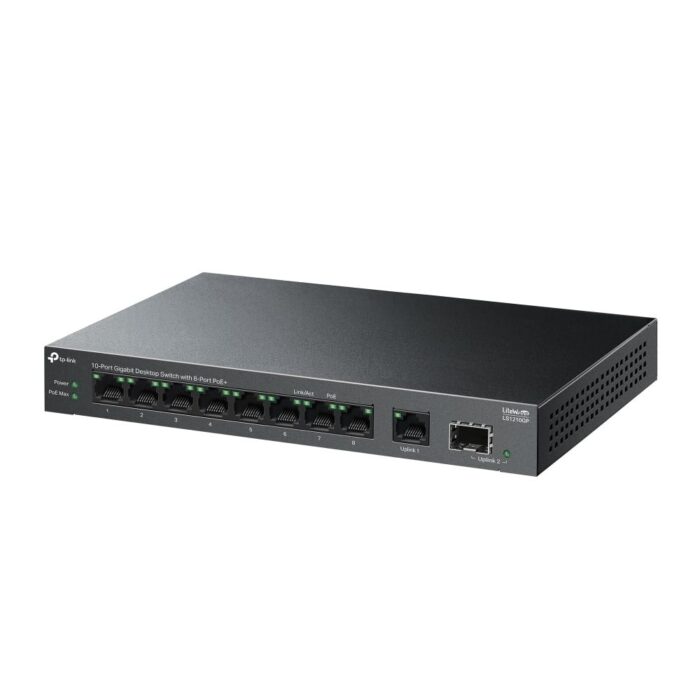

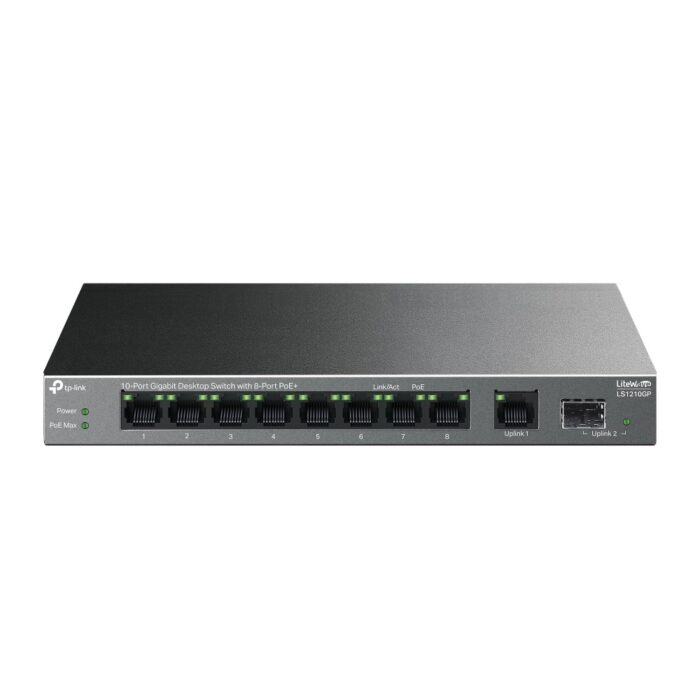

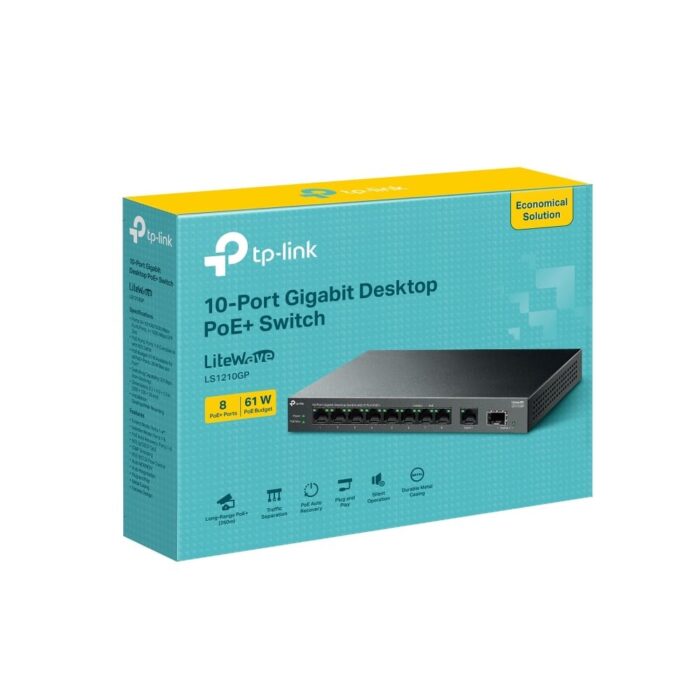

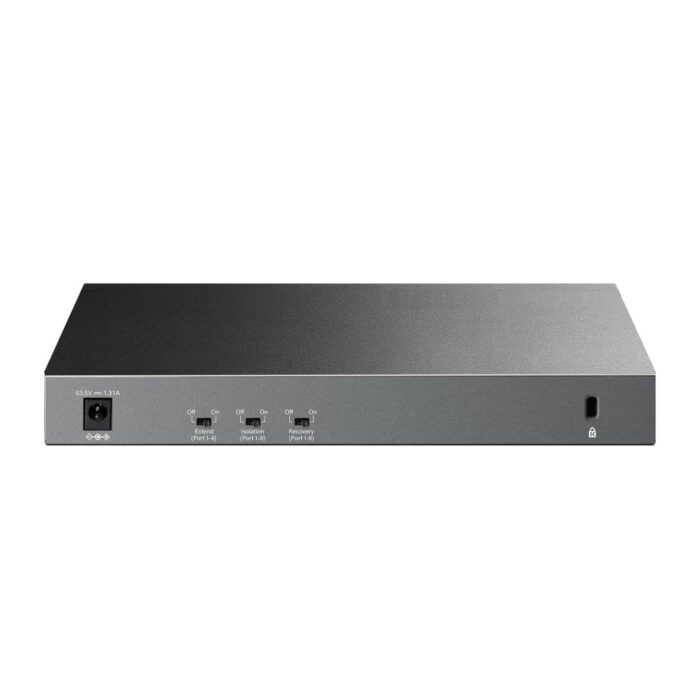

TP-Link LS1210GP 10-Port Gigabit Desktop Switch with 8-Port PoE+

The TP-Link LiteWave LS1210GP is an advanced 10-port Gigabit desktop switch designed to enhance networking capabilities. Featuring 8 Power over Ethernet (PoE+) ports, this switch offers seamless connectivity for various devices, making it ideal for small to medium-sized business networks. The LS1210GP supports Gigabit Ethernet (10/100/1000) through nine basic switching RJ-45 Ethernet ports, ensuring high-speed wired connections for critical applications.

With a robust MAC address table that can store up to 4000 entries, the TP-Link LiteWave LS1210GP provides a remarkable switching capacity of 20 Gbit/s, allowing for efficient handling of network traffic. It adheres to multiple networking standards, including IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, enhancing its compatibility and performance in diverse networking environments.

A standout feature of the LS1210GP is its ability to utilize PoE technology, simplifying installation by supplying power to connected devices without the need for extra power cables. This not only streamlines the setup but also reduces clutter, making it easier to manage network infrastructure. The TP-Link brand is known for reliability and performance, ensuring that the LiteWave LS1210GP easily meets the demands of modern networking needs.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
9
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
1
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
No
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


Forwarding rate
14.88 Mpps
show more


MAC address table
MAC address table
4000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames
16000
show more

Design

Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
53.5 V
show more


Power consumption (max)
Power consumption (max)
76.96 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
61 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
261.66 BTU/h
show more

Weight & dimensions

Width
Width
209 mm
show more


Depth
Depth
126 mm
show more


Height
Height
26 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
CE, FCC, RoHS
show more
