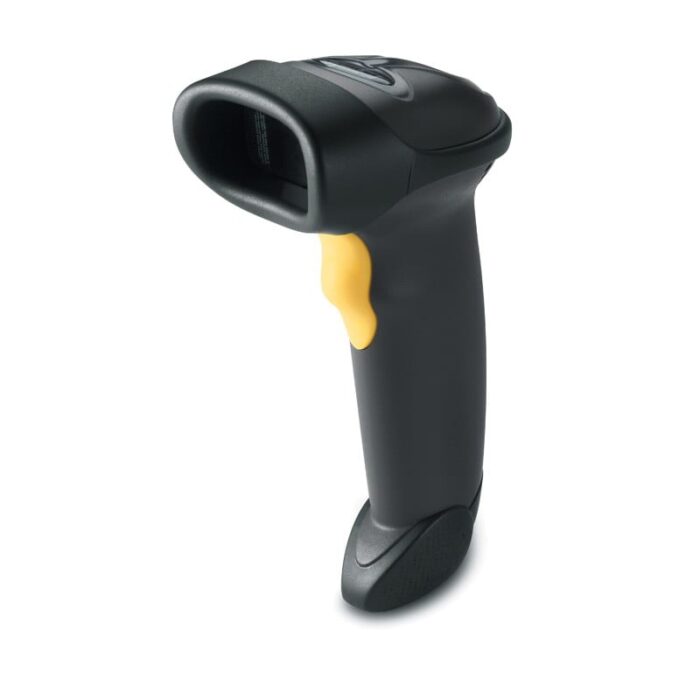

Zebra LS2208 Laser Black

The Motorola LS2208 is equipped with a laser sensor and offers a tilt reading angle range from -30 to 30 degrees, as well as a pitch reading angle range from -65 to 65 degrees. It features standard interfaces including RS-485, USB, Keyboard Wedge, and RS-232. This product comes in a black color, requires an input voltage of 5 volts, and has a power consumption of 130 mA. The weight of the device is 146 grams.

Scanning

Sensor type
Sensor type
Laser
show more


Tilt reading angle
-30 – 30°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-60 – 60°
show more


Scan speed
Scan speed
100 sec/page
show more


Decoding standards
UPC/EAN
UPC/EAN + Supplementals
UCC/EAN 128
Code 39
Code 39 Full ASCII
Code 39 TriOptic
Code 128
Code 128 Full ASCII
Codabar
Interleaved 2 of 5
Discrete 2 of 5
Code 93
MSI
Code 11
IATA
GS1 DataBar
Chinese 2 of 5
show more

Ports & interfaces

Standard interfaces
Standard interfaces
RS-485, USB, Keyboard wedge, RS-232
show more

Performance

Product colour
Product colour
Black
show more

Power

Input voltage
Input voltage
5 V
show more


Power consumption
130 mA
show more

Weight & dimensions

Weight
Weight
146 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Logistics data

Harmonized System (HS) code
84716070
show more

Other features

Light source
650nm
show more


Electromagnetic emissions
FCC Part 15 Class B, ICES 003 Class B
show more


Safety
Safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
63 x 84 x 152 mm
show more
