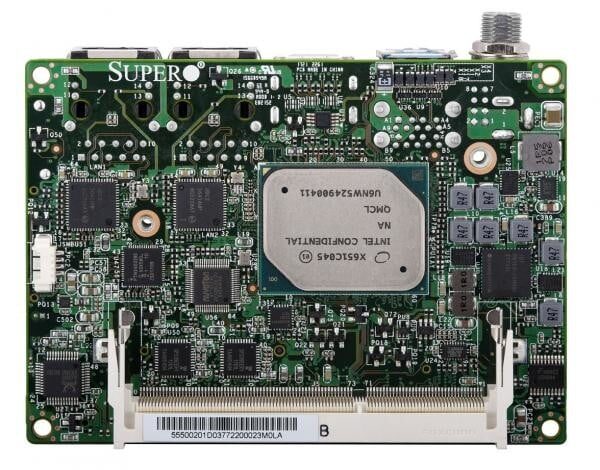

Supermicro A2SAP-E BGA 1296 Pico ITX

The Supermicro A2SAP-E is a component designed for use in Mini PCs. It features a processor manufactured by Intel and utilizes a BGA 1296 socket, making it compatible with the Intel Atom® processor series. The unit supports DDR3L-SDRAM memory types and has a maximum internal memory capacity of 8 GB, with memory slots available in the SO-DIMM format. For networking, it is equipped with a Gigabit Ethernet interface. The motherboard follows the Pico ITX form factor and belongs to the Intel chipset family. Additionally, it operates with a UEFI AMI BIOS type.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
BGA 1296
show more


Compatible processor series
Compatible processor series
Intel Atom®
show more


Processor cores
Processor cores
4
show more


Processor thermal power (max)
9.6 W
show more

Memory

Supported memory types
Supported memory types
DDR3L-SDRAM
show more


Number of memory slots
1
show more


Memory slots type
Memory slots type
SO-DIMM
show more


Memory voltage
Memory voltage
1.35 V
show more


ECC сompatibility
Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
1866 MHz
show more


Supported memory module capacities
4GB, 8GB
show more


Maximum internal memory
Maximum internal memory
8 GB
show more


Unbuffered memory
Yes
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
1
show more


Serial port headers
2
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


HDMI ports quantity
HDMI ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more

Features

Component for
Component for
Mini PC
show more


Motherboard form factor
Motherboard form factor
Pico ITX
show more


Power source type
Power source type
ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
5.0
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-30 – 75 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-40 – 85 °C
show more


Storage relative humidity (H-H)
10 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
101.6 mm
show more


Depth
Depth
71.9 mm
show more

Packaging content

Bundled software
Bundled software
SuperDoctor® 5, Watchdog
show more

Other features

LVDS connector
Yes
show more


Number of M.2 (E) slots
1
show more
