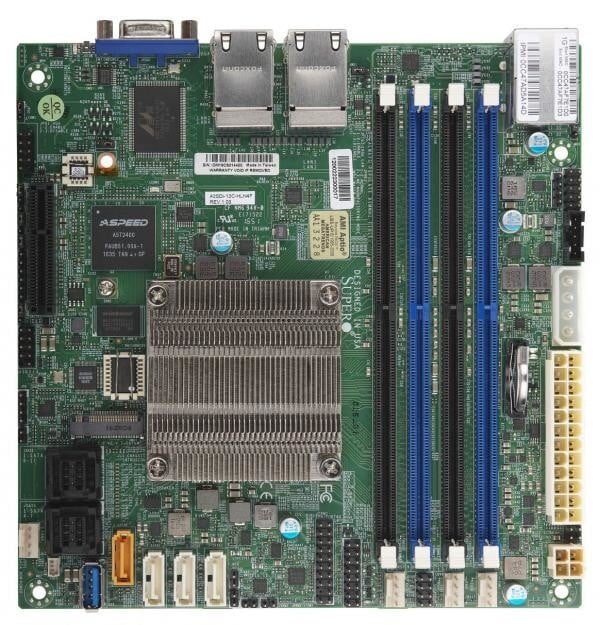

Supermicro A2SDi-16C-HLN4F mini ATX

The Supermicro A2SDi-16C-HLN4F is a server motherboard featuring an Intel processor. It is compatible with the Intel Atom® series and equipped with the C3955 processor model. This motherboard supports DDR4-SDRAM memory types and can accommodate up to 256 GB of internal memory via DIMM slots. For storage, it supports interfaces such as PCI Express and SATA III. The graphics capabilities are provided by the ASPEED graphics card family, specifically the AST2400 model. Additionally, it features a Gigabit Ethernet interface for network connectivity.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Compatible processor series
Compatible processor series
Intel Atom®
show more


Processor model
Processor model
C3955
show more


Processor cores
Processor cores
16
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory voltage
Memory voltage
1.2 V
show more


Supported memory clock speeds
Supported memory clock speeds
2400 MHz
show more


Supported memory module capacities
4GB, 8GB, 16GB, 32GB, 64GB
show more


Maximum internal memory
Maximum internal memory
256 GB
show more

Storage controllers

Supported storage drive interfaces
PCI Express, SATA III
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


Graphics card family
ASPEED
show more


Graphics card
AST2400
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard form factor
Motherboard form factor
mini ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


System Management BIOS (SMBIOS) version
2.7.1
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
0 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-40 – 85 °C
show more


Storage relative humidity (H-H)
10 – 95%
show more


Operating relative humidity (H-H)
10 – 85%
show more

Weight & dimensions

Width
Width
170.2 mm
show more


Depth
Depth
170.2 mm
show more
