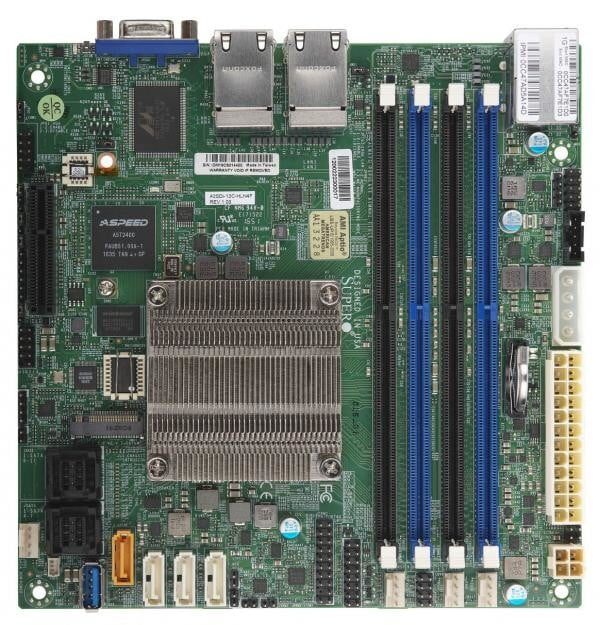

Supermicro A2SDi-8C-HLN4F Mini ITX

The Supermicro A2SDi-8C-HLN4F is a motherboard designed for use in PCs, incorporating an Intel processor. It is compatible with the Intel Atom® processor series. This motherboard supports DDR4-SDRAM memory types and has a maximum internal memory capacity of 256 GB. It features DIMM memory slots and includes a Gigabit Ethernet interface for network connectivity. The component is designed in a mini ITX form factor and belongs to the Intel motherboard chipset family. Additionally, it uses the UEFI AMI BIOS type, ensuring modern and efficient firmware functionality.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Compatible processor series
Compatible processor series
Intel Atom®
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Memory slots type
Memory slots type
DIMM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
1600,1866,2100,2400 MHz
show more


Maximum internal memory
Maximum internal memory
256 GB
show more


Supported memory module capacities
4GB, 8GB, 16GB, 32GB, 64GB
show more


Unbuffered memory
Yes
show more


Maximum RDIMM memory
256 GB
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
12
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more

Features

Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
mini ITX
show more


Power source type
Power source type
ATX, DC
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more


DC input voltage
12 V
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 60 °C
show more


Storage relative humidity (H-H)
10 – 95%
show more


Operating relative humidity (H-H)
10 – 85%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
170.2 mm
show more


Depth
Depth
170.2 mm
show more

Packaging content

Bundled software
Bundled software
IPMI2.0, KVM w/ dedicated LAN, NMI, SuperDoctor® 5, Watchdog
show more

Other features

PCI Express x4 (Gen 3.x) slots
1
show more


Maximum UDIMM memory
64 GB
show more


Registered
Yes
show more


Supported RDIMM clock speeds
2400 MHz
show more
