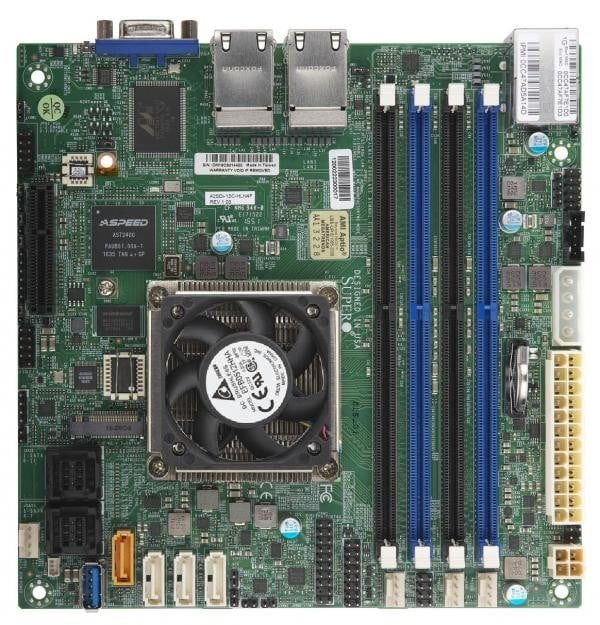

Supermicro A2SDI-8C+-HLN4F Mini ITX

The Supermicro A2SDI-8C+-HLN4F is equipped with an Intel-manufactured processor compatible with the Intel Atom® series. It features a maximum processor thermal power of 25 watts. This motherboard supports DDR4-SDRAM memory types and includes DIMM slots with a memory voltage of 1.2 volts. It has a Gigabit Ethernet interface for network connectivity. Designed for PCs, this motherboard follows the mini ITX form factor and utilizes an Intel chipset family. The BIOS type provided is UEFI AMI.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Compatible processor series
Compatible processor series
Intel Atom®
show more


Processor cores
Processor cores
8
show more


Processor thermal power (max)
25 W
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
1600,1866,2133,2400 MHz
show more


Supported memory module capacities
4GB, 8GB, 16GB, 32GB, 64GB
show more


Unbuffered memory
Yes
show more


Maximum RDIMM memory
256 GB
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
12
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more

Features

Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
mini ITX
show more


Power source type
Power source type
ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
0 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-40 – 85 °C
show more


Storage relative humidity (H-H)
10 – 95%
show more


Operating relative humidity (H-H)
10 – 85%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
170.2 mm
show more


Depth
Depth
170.2 mm
show more

Other features

PCI Express x4 (Gen 3.x) slots
1
show more


Maximum UDIMM memory
64 GB
show more


Supported RDIMM clock speeds
2400 MHz
show more
