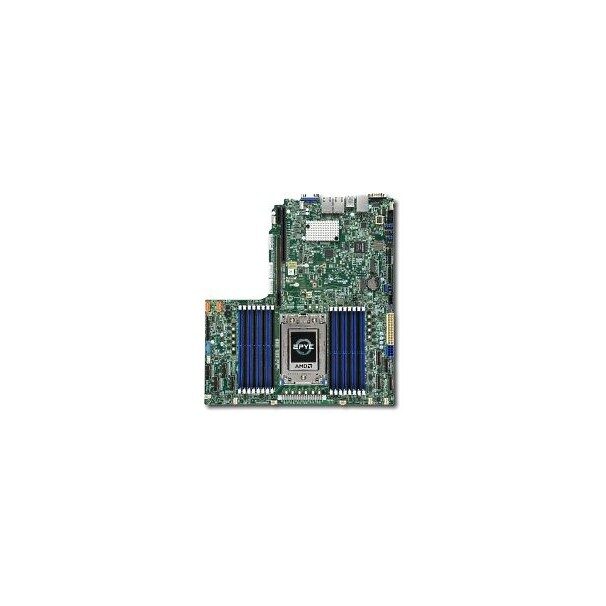

Supermicro MBD-H11SSW-NT-O H11 AMD EPYC UP Platform with Socket SP3 Zen Core CPU, S

The Supermicro MBD-H11SSW-NT is a high-performance server motherboard designed for AMD processors. It features a Socket SP3 processor socket and supports AMD EPYC processor series. The motherboard is compatible with DDR4-SDRAM memory types and requires a memory voltage of 1.2 V. It also supports Error-Correcting Code (ECC) memory for enhanced data integrity.

For storage, this motherboard supports NVMe and SATA III drive interfaces, providing versatile storage options. It includes an on-board graphics card model, the Aspeed AST2500, to handle display tasks efficiently.

In terms of networking capabilities, the Supermicro MBD-H11SSW-NT is equipped with Gigabit Ethernet interfaces. It includes an Intel I210 LAN controller and a Realtek RTL8211E LAN controller to offer reliable and fast networking performance.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket SP3
show more


Compatible processor series
Compatible processor series
AMD EPYC
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
16
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2666 MHz
show more

Storage controllers

Supported storage drive interfaces
NVMe, SATA III
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more


On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
2
show more


Chassis intrusion connector
Yes
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel I210, Realtek RTL8211E
show more


Wi-Fi
Wi-Fi
No
show more

Features

PC health monitoring
CPU, Fan, LED, Temperature
show more


Component for
Component for
Server
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more

Expansion slots

Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
AMI
show more


BIOS memory size
128 Mbit
show more


ACPI version
5.1
show more


Clear CMOS jumper
Yes
show more


Clear CMOS button
Yes
show more


System Management BIOS (SMBIOS) version
3.1.1
show more


Desktop Management Interface (DMI) version
2.3
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more

Weight & dimensions

Width
Width
340 mm
show more


Depth
Depth
312 mm
show more

Other features

Supported DIMM module capacities
8GB, 16GB, 32GB, 64GB
show more
