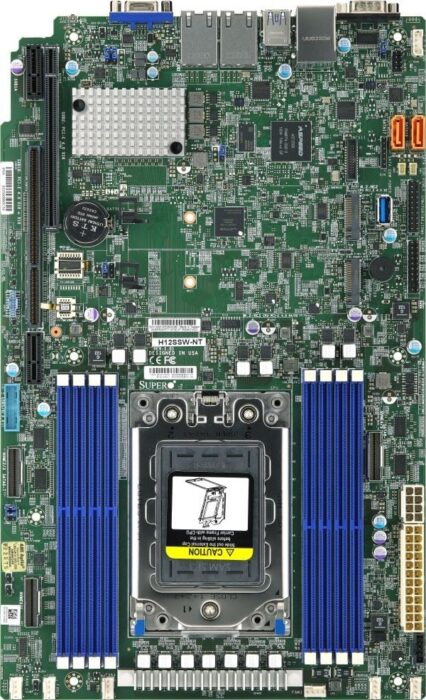

Supermicro MBD-H12SSW-NT-O Motherboard Socket SP3 ATX

The Supermicro MBD-H12SSW-NT-O is a high-performance motherboard designed for AMD processors. It utilizes the AMD EPYC series and fits processors into a Socket SP3. Regarding memory capabilities, it supports DDR4-SDRAM and can accommodate up to 2 TB of internal memory, operating at a memory voltage of 1.2 V. For storage, it supports SATA III interfaces. Graphics needs are managed by the on-board Aspeed AST2500 graphics card. Network connectivity is robust with a 10 Gigabit Ethernet interface, supported by the Realtek RTL8211E LAN controller. This combination of features makes it a powerful foundation for demanding computing tasks.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket SP3
show more


Compatible processor series
Compatible processor series
AMD EPYC
show more


Processor number of cores supported
Processor number of cores supported
64
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
3200 MHz
show more


Maximum internal memory
Maximum internal memory
2 TB
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more

Graphics

Parallel processing technology support
Parallel processing technology support
Not supported
show more


On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
16
show more


Number of chassis fan connectors
6
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


LAN controller
Realtek RTL8211E
show more


Wi-Fi
Wi-Fi
No
show more

Features

Component for
Component for
Server
show more


Motherboard form factor
Motherboard form factor
ATX
show more

Expansion slots

PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
2
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
AMI
show more


BIOS memory size
256 Mbit
show more


ACPI version
5.1
show more


Desktop Management Interface (DMI) version
2.3
show more

Processor special features

Trusted Platform Module (TPM) version
1.2
show more


Trusted Platform Module (TPM)
Yes
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more


Storage relative humidity (H-H)
5 – 96%
show more


Operating relative humidity (H-H)
8 – 90%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
207.1 mm
show more


Depth
Depth
331.4 mm
show more

Packaging content

Bundled software
Bundled software
Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0
show more

Other features

Supported DIMM module capacities
8GB, 16GB, 32GB, 64GB, 128MB
show more


Disk on Module (DOM) power connector
Yes
show more


Number of processors supported
Number of processors supported
1
show more


Number of DIMM slots
Number of DIMM slots
8
show more
