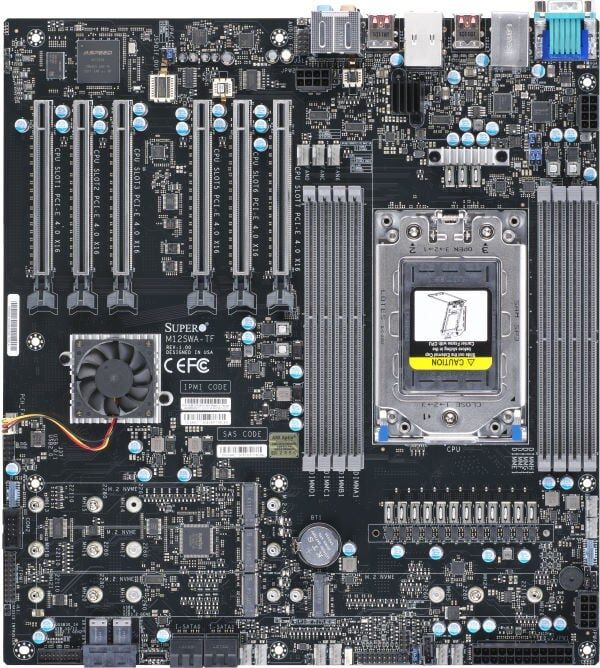

Supermicro MBD-M12SWA-TF Socket sWRX8 Extended ATX

The Supermicro MBD-M12SWA-TF is a high-performance motherboard designed for AMD processors, specifically compatible with the AMD Ryzen Threadripper 1000 Series. It features a Socket sWRX8 and supports DDR4-SDRAM memory, accommodating a maximum internal memory of up to 2 TB across its DIMM slots. The motherboard is equipped to handle storage through M.2 and SATA III interfaces and offers RAID levels 0, 1, 5, and 10 for enhanced data management and redundancy. It includes an onboard graphics card, the Aspeed AST2600, providing basic video output capabilities. Networking is robust, with a 10 Gigabit Ethernet interface powered by the Intel® I210-AT LAN controller.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket sWRX8
show more


Compatible processor series
Compatible processor series
AMD Ryzen Threadripper 1000 Series
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
8
show more


Memory slots type
Memory slots type
DIMM
show more


Memory channels
Octa-channel
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory module capacities
2GB, 4GB, 16GB, 32GB, 64GB, 128GB
show more


Maximum internal memory
Maximum internal memory
2 TB
show more


Unbuffered memory
Yes
show more


Maximum RDIMM memory
2 TB
show more

Storage controllers

Supported storage drive interfaces
M.2, SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2600
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


TPM connector
Yes
show more


Number of COM connectors
1
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


LAN controller
Intel® I210-AT
show more

Features

Audio output channels
Audio output channels
7.1 channels
show more


PC health monitoring
CPU, Fan, LED, Temperature
show more


Component for
Component for
Server
show more


Motherboard form factor
Motherboard form factor
Extended ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more

Expansion slots

PCI Express x16 (Gen 4.x) slots
6
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
AMI
show more


BIOS memory size
256 Mbit
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-5 – 55 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Logistics data

Harmonized System (HS) code
84733020
