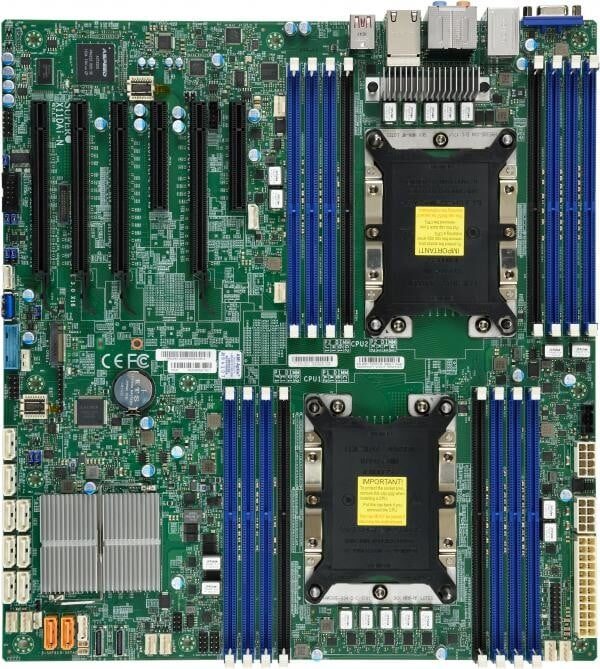

Supermicro X11DAi-N Intel C621 LGA 3647 (Socket P) Extended ATX

The Supermicro X11DAi-N is designed to support Intel processors and features an LGA 3647 (Socket P) for reliable connectivity. It offers a system bus rate of 10.4 GT/s for efficient data transfer. This motherboard supports DDR4-SDRAM memory types, accommodating up to a maximum of 2.05 TB of internal memory, and operates at a memory voltage of 1.2 V. For data management, it supports RAID levels 0, 1, 5, and 10. The motherboard is built in an Extended ATX form factor and incorporates the Intel C621 chipset. It provides 7.1 channel audio output for an immersive sound experience. The BIOS is of the UEFI type and has a memory size of 128 Mbit.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 3647 (Socket P)
show more


System bus rate
System bus rate
10.4 GT/s
show more


Processor number of cores supported
Processor number of cores supported
28
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666 MHz
show more


Maximum internal memory
Maximum internal memory
2.05 TB
show more


Maximum RDIMM memory
64 GB
show more

Storage controllers

RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


Headphone outputs
Headphone outputs
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel® C621
show more


Audio output channels
Audio output channels
7.1 channels
show more


Motherboard form factor
Motherboard form factor
Extended ATX
show more

Expansion slots

PCI Express x8 (Gen 3.x) slots
PCI Express x8 (Gen 3.x) slots
2
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
4
show more

BIOS

BIOS type
BIOS type
UEFI
show more


BIOS memory size
128 Mbit
show more

Processor special features

Trusted Platform Module (TPM)
Yes
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-20 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage relative humidity (H-H)
10 – 95%
show more


Operating relative humidity (H-H)
10 – 85%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
304.8 mm
show more


Depth
Depth
330.2 mm
show more

Other features

PCI Express x4 (Gen 3.x) slots
1
show more


Supported DIMM module capacities
64GB, 128MB
show more


Maximum LRDIMM memory
64 GB
show more


Supported RDIMM clock speeds
2133,2400,2666 MHz
show more


Number of processors supported
Number of processors supported
2
show more


Number of DIMM slots
Number of DIMM slots
16
