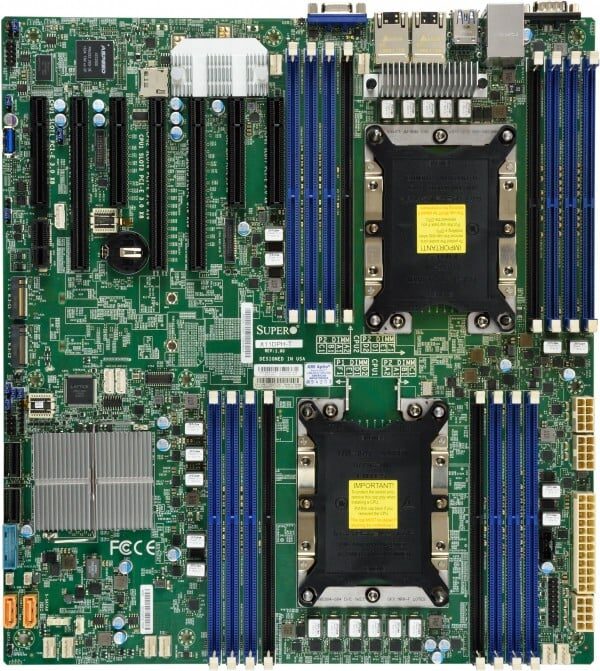

Supermicro X11DPH-TQ Intel C628 LGA 3647 (Socket P) Extended ATX

The Supermicro X11DPH-TQ is a high-performance motherboard designed for Intel processors and features the LGA 3647 (Socket P). It operates with a system bus rate of 10.4 GT/s, ensuring efficient communication between components. This motherboard supports DDR4-SDRAM memory types and can accommodate up to 2.05 TB of internal memory, with a memory voltage of 1.2 V. For storage, it supports SATA III interfaces and offers RAID levels 1, 5, and 10 for data redundancy and performance. The network capabilities include a 10 Gigabit Ethernet interface, controlled by the Intel® X557 LAN controller, providing high-speed connectivity options. The motherboard follows the Extended ATX form factor and is built on the Intel® C628 chipset, making it suitable for advanced computing needs.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 3647 (Socket P)
show more


System bus rate
System bus rate
10.4 GT/s
show more


Processor number of cores supported
Processor number of cores supported
28
show more


Processor thermal power (max)
205 W
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC & Non-ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666 MHz
show more


Maximum internal memory
Maximum internal memory
2.05 TB
show more


Maximum RDIMM memory
64 GB
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
1, 5, 10
show more

Internal I/O

Number of SATA III connectors
Number of SATA III connectors
10
show more

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
2
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


LAN controller
Intel® X557
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel® C628
show more


Motherboard form factor
Motherboard form factor
Extended ATX
show more

Expansion slots

PCI Express x8 (Gen 3.x) slots
PCI Express x8 (Gen 3.x) slots
3
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
3
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more

Processor special features

Trusted Platform Module (TPM) version
2.0
show more


Trusted Platform Module (TPM)
Yes
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
304.8 mm
show more


Depth
Depth
330.2 mm
show more

Technical details

Compliance certificates
RoHS
show more

Other features

PCI Express x4 (Gen 3.x) slots
1
show more


Supported LRDIMM clock speeds
2133,2400,2666 MHz
show more


Maximum LRDIMM memory
64 GB
show more


Supported RDIMM clock speeds
2133,2400,2666 MHz
show more


Number of processors supported
Number of processors supported
1
show more


Number of DIMM slots
Number of DIMM slots
16
show more
