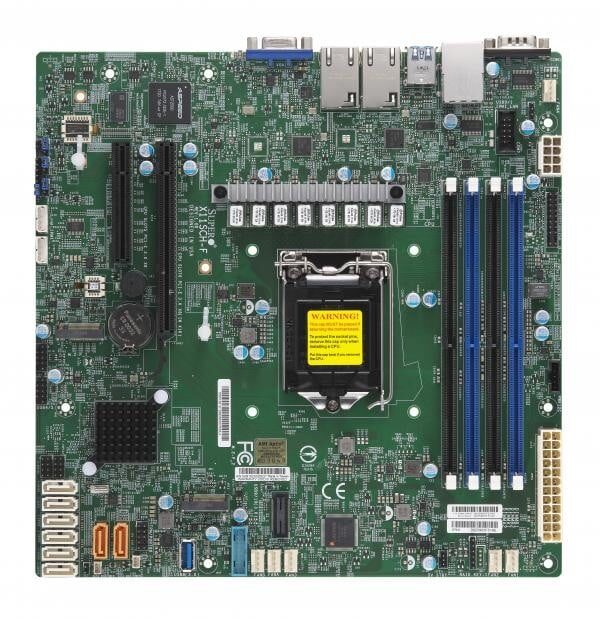

Supermicro MBD-X11SCH-F-O Motherboard Intel C246 LGA 1151 (Socket H4) Micro ATX

The Supermicro MBD-X11SCH-F-O is a motherboard designed for use with Intel processors, utilizing the LGA 1151 (Socket H4). It is compatible with Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, and Intel® Xeon® processor series. The motherboard supports DDR4-SDRAM memory types with a maximum internal memory capacity of 32 GB and features DIMM memory slots. It offers RAID configuration options including levels 0, 1, 5, and 10. The Ethernet interface is of the Gigabit Ethernet type, ensuring fast network connectivity. Designed as a component for PCs, it has a micro ATX form factor and belongs to the Intel motherboard chipset family.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 1151 (Socket H4)
show more


Compatible processor series
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
4
show more


Memory slots type
Memory slots type
DIMM
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2133,2400,2666 MHz
show more


Maximum internal memory
Maximum internal memory
32 GB
show more

Storage controllers

RAID levels
RAID levels
0, 1, 5, 10
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


USB 3.2 Gen 2 (3.1 Gen 2) connectors
3
show more


Number of SATA III connectors
Number of SATA III connectors
8
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel C246
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

BIOS

BIOS type
BIOS type
UEFI
show more


BIOS memory size
256 Mbit
show more


ACPI version
6.0
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more

Logistics data

Harmonized System (HS) code
84733020
show more

Weight & dimensions

Width
Width
243.8 mm
show more


Depth
Depth
243.8 mm
show more

Technical details

Compliance certificates
RoHS
show more

Other features

UEFI version
2.7
show more


Thermal Design Power (TDP)
95 W
