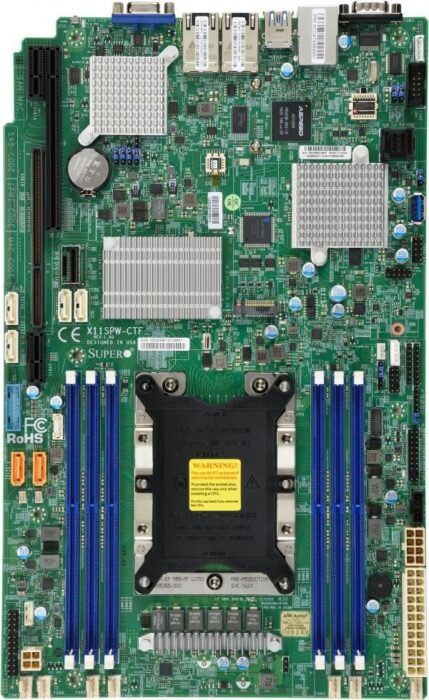

Supermicro X11SPW-CTF Intel C622 LGA 3647 (Socket P)

The Supermicro X11SPW-CTF is equipped with a processor manufactured by Intel and features an LGA 3647 (Socket P) processor socket. It can handle a maximum processor thermal power of up to 205 watts. The motherboard supports DDR4-SDRAM memory types, with a maximum internal memory capacity of 768 gigabytes, and operates at a memory voltage of 1.2 volts. For storage, it supports SATA III drive interfaces and offers RAID configurations including levels 0, 1, 5, and 10. It comes with an on-board graphics card model, the Aspeed AST2500. Additionally, it is equipped with a 10 Gigabit Ethernet interface for efficient network connectivity.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 3647 (Socket P)
show more


Processor number of cores supported
Processor number of cores supported
28
show more


Processor thermal power (max)
205 W
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
1600,1866,2133,2400,2666 MHz
show more


Maximum internal memory
Maximum internal memory
768 GB
show more


Maximum RDIMM memory
192 GB
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Internal I/O

Number of SATA III connectors
Number of SATA III connectors
10
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
7
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
2
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel C622
show more

Expansion slots

PCI Express x8 (Gen 3.x) slots
PCI Express x8 (Gen 3.x) slots
1
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
6.0
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more

Weight & dimensions

Width
Width
203.2 mm
show more


Depth
Depth
330.2 mm
show more

Technical details

Compliance certificates
RoHS
show more

Other features

PCI Express x4 (Gen 3.x) slots
1
show more


Supported DIMM module capacities
4GB, 8GB, 16GB, 32GB, 64GB, 128MB
show more


Supported LRDIMM module capacity
32GB, 64GB
show more


Supported LRDIMM clock speeds
1600,1866,2133,2400,2666 MHz
show more


Maximum LRDIMM memory
384 GB
show more


Supported RDIMM clock speeds
1600,1866,2133,2400,2666 MHz
show more


Supported RDIMM module capacity
4GB, 8GB, 16GB, 32GB
show more


Number of processors supported
Number of processors supported
2
show more


Number of DIMM slots
Number of DIMM slots
6
show more
