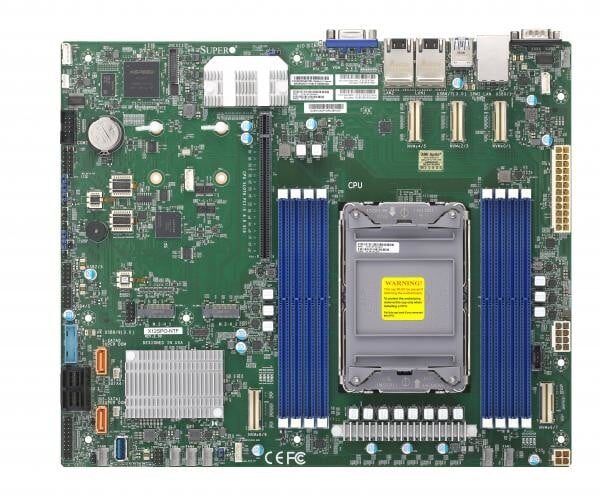

Supermicro MBD-X12SPO-NTF-B Coopere Lake/Ice Lake (LGA-4189) SKT-P++ C621A, 8x DDR4 3200

The Supermicro MBD-X12SPO-NTF-B is a motherboard designed for high-performance computing. It features an Intel processor with a LGA 4189 socket, compatible with the Intel® Xeon® processor series. The motherboard supports DDR4-SDRAM memory types and can handle up to 2 TB of internal memory through its DIMM memory slots. It offers versatile storage options with support for M.2, PCI Express 3.0, and SATA III storage drive interfaces, and is compatible with both HDD and SSD storage drive types. Additionally, it supports RAID levels 0, 1, 5, and 10 for enhanced data protection and performance. For graphics, it includes an ASPEED AST2600 graphics card. The motherboard is equipped with a 10 Gigabit Ethernet interface and an Intel® I350 LAN controller for fast and reliable network connectivity.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 4189
show more


Compatible processor series
Compatible processor series
Intel® Xeon®
show more


Maximum number of SMP processors
1
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
8
show more


Memory slots type
Memory slots type
DIMM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
2666,2933,3200 MHz
show more


Supported memory clock speed (max)
3200 MHz
show more


Supported memory module capacities
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
show more


Maximum internal memory
Maximum internal memory
2 TB
show more


Maximum RDIMM memory
2 TB
show more

Storage controllers

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
M.2, PCI Express 3.0, SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


Graphics card family
ASPEED
show more


Graphics card
AST2600
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
10
show more


Serial port headers
2
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


LAN controller
Intel® I350
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel C621A
show more


PC health monitoring
Fan, LED, Temperature, Voltage
show more


Component for
Component for
Server
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Power source type
Power source type
ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

Expansion slots

PCI Express x16 (Gen 4.x) slots
1
show more


Number of M.2 (M) slots
1
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
6.2
show more


System Management BIOS (SMBIOS) version
3.0
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage relative humidity (H-H)
10 – 95%
show more


Operating relative humidity (H-H)
10 – 85%
show more

Weight & dimensions

Width
Width
304.8 mm
show more


Depth
Depth
254 mm
show more
