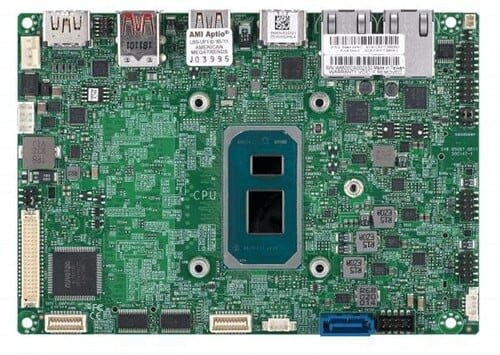

Supermicro MBD-X12STN-C-WOHS-O, Embedded 3.5" SBC, Intel TigerLake-UP3SoC

The Supermicro MBD-X12STN-C-WOHS-O is a motherboard compatible with Intel processors, specifically designed to house processors from the Intel® Celeron® series. It features an FCBGA 1449 processor socket. For memory, it supports DDR4-SDRAM with a capacity of up to 64 GB, utilizing DIMM slots for installation. Regarding storage, the motherboard supports SATA III drive interfaces. For display support, it includes HDMI connectivity with versions 1.4b and 2.0b available. Networking is handled by a 2.5 Gigabit Ethernet interface, ensuring fast and reliable internet connectivity.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
FCBGA 1449
show more


Compatible processor series
Compatible processor series
Intel® Celeron®
show more


Processor cores
Processor cores
2
show more

Memory

Supported memory types
Supported memory types
DDR4-SDRAM
show more


Number of memory slots
2
show more


Memory slots type
Memory slots type
DIMM
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC сompatibility
Non-ECC
show more


Supported memory module capacities
4GB, 8GB, 16GB, 32GB
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Unbuffered memory
Yes
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
4
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
show more


Number of SATA III connectors
Number of SATA III connectors
1
show more


Number of chassis fan connectors
1
show more


TPM connector
Yes
show more


Number of COM connectors
4
show more

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


HDMI ports quantity
HDMI ports quantity
2
show more


HDMI version
1.4b/2.0b
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
2.5 Gigabit Ethernet
show more


Wi-Fi
Wi-Fi
No
show more

Features

Audio chip
ALC 888S
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
SBC
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
6.2
show more


System Management BIOS (SMBIOS) version
3.0
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 85 °C
show more


Storage relative humidity (H-H)
10 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more
