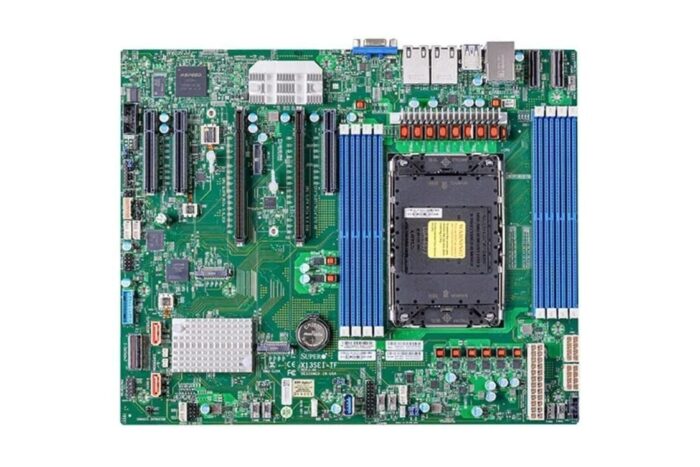

Supermicro MBD-X13SEI-TF-B LGA4677 Intel Xeon Scalable Motherboard with 10GbE and M.2 Slots

The Supermicro MBD-X13SEI-TF-B is a high-performance server motherboard designed for use with Intel processors. It features the LGA 4677 (Socket E) socket and is compatible with Intel Xeon processor series. The motherboard supports DDR5-SDRAM memory with a maximum capacity of up to 256 GB, utilizing DIMM memory slots for enhanced performance. For storage, the motherboard supports SATA III interfaces, enabling fast and reliable data transfers. This component is specifically designed for server applications and follows the ATX form factor, ensuring a broad range of compatibility with server cases. It belongs to the Intel chipset family and includes a UEFI AMI BIOS for modern, efficient system management and configuration.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor socket
Processor socket
LGA 4677 (Socket E)
show more


Compatible processor series
Compatible processor series
Intel® Xeon®
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
8
show more


Memory slots type
Memory slots type
DIMM
show more


Memory voltage
Memory voltage
1.1 V
show more


ECC сompatibility
ECC
show more


Supported memory clock speeds
Supported memory clock speeds
4000,4400,4800 MHz
show more


Supported memory clock speed (max)
4800 MHz
show more


Supported memory module capacities
16GB, 32GB, 64GB, 128GB, 256GB
show more


Maximum internal memory
Maximum internal memory
256 GB
show more


Maximum RDIMM memory
2 TB
show more

Storage controllers

Supported storage drive interfaces
SATA III
show more

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
show more


Number of SATA III connectors
Number of SATA III connectors
10
show more


Serial port headers
1
show more


TPM connector
Yes
show more

Rear panel I/O ports

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Network

Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
Intel C741
show more


Component for
Component for
Server
show more


Motherboard form factor
Motherboard form factor
ATX
show more


Motherboard chipset family
Motherboard chipset family
Intel
show more

Expansion slots

PCI Express x8 (Gen 4.x) slots
3
show more


PCI Express x16 (Gen 5.x) slots
2
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
6.4
show more


System Management BIOS (SMBIOS) version
3.5
show more

Weight & dimensions

Width
Width
312.4 mm
show more


Depth
Depth
256.5 mm
show more

Other features

Disk on Module (DOM) power connector
Yes
show more
