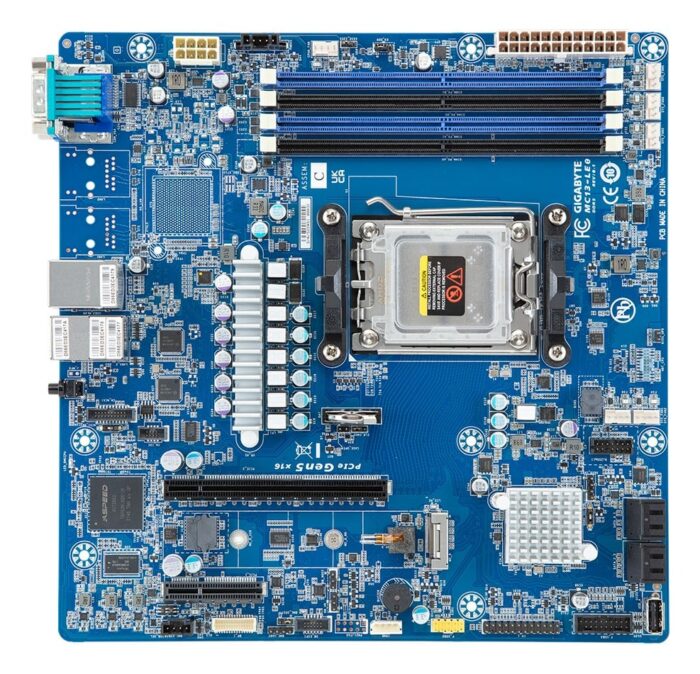

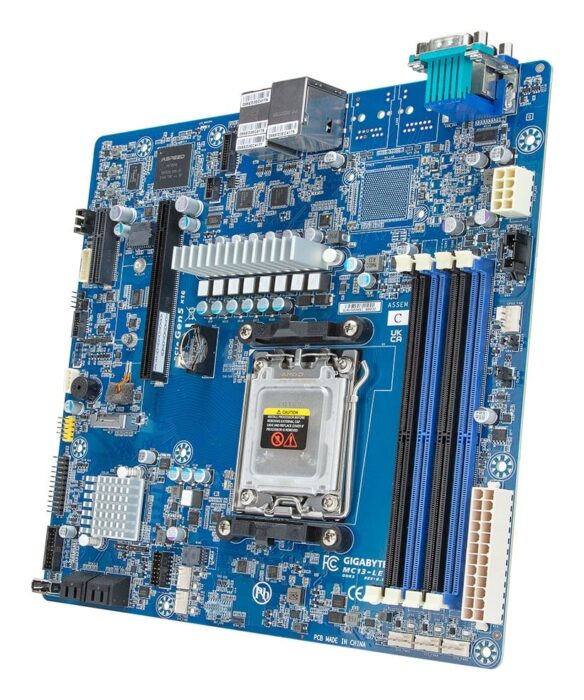

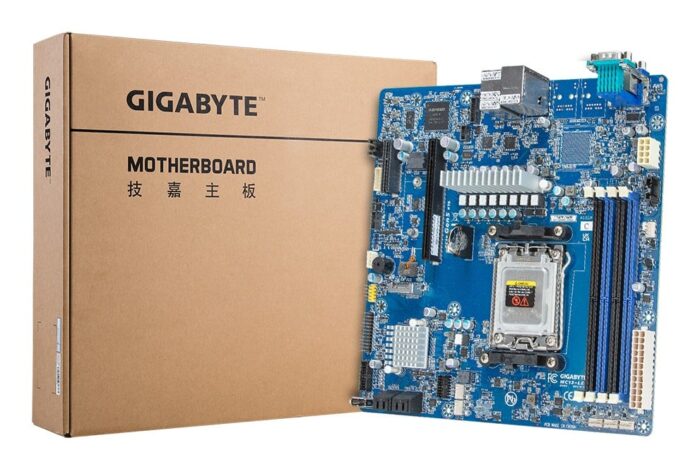

Gibabyte MC13-LE0, 1xSKT LGA 1718, AMD Ryzen 7000, SoC, 4xDIMM, SATA, 1xM.2, 2x10GbE, IPMI

The GIGABYTE MC13-LE0 is designed for powerful performance and compatibility with a range of AMD processors. It supports the AMD EPYC 4004, AMD Ryzen 7000 Series, and AMD Ryzen 9000 Series processors, fitting neatly within a Socket AM5. For memory, it accommodates DDR5-SDRAM, ensuring fast and efficient multitasking capabilities. Storage flexibility is optimized with support for M.2 and SATA III interfaces, along with RAID configurations (levels 0, 1, 10) for enhanced data management and backup options. Equipped with an on-board Aspeed AST2600 graphics card, it allows for reliable display performance. The motherboard is built for PCs and follows the micro ATX form factor, belonging to the AMD chipset family, making it a versatile choice for various computing needs.

Processor

Processor manufacturer
Processor manufacturer
AMD
show more


Processor socket
Processor socket
Socket AM5
show more


Compatible processor series
Compatible processor series
AMD EPYC 4004, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series
show more

Memory

Supported memory types
Supported memory types
DDR5-SDRAM
show more


Number of memory slots
4
show more

Storage controllers

Supported storage drive interfaces
M.2, SATA III
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 10
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2600
show more

Internal I/O

USB 2.0 connectors
USB 2.0 connectors
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) connectors
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more


ATX Power connector (24-pin)
Yes
show more


EPS power connector (8-pin)
Yes
show more


TPM connector
Yes
show more

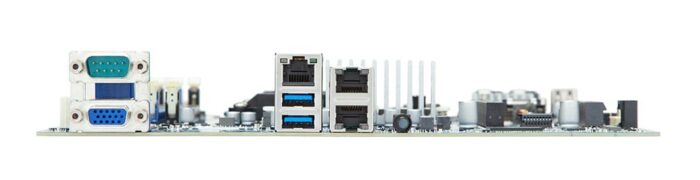

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
1
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Features

Motherboard chipset
Motherboard chipset
AMD B650
show more


Component for
Component for
PC
show more


Motherboard form factor
Motherboard form factor
micro ATX
show more


Motherboard chipset family
Motherboard chipset family
AMD
show more


Compatible operating systems
Compatible operating systems
EPYC 4004 Series:
Ubuntu 22.04
Ubuntu 24.04
Windows Server 2022

Ryzen 9000/7000 Series:
Windows 10 21H2
Windows 11

show more

Expansion slots

PCI Express x4 (Gen 4.x) slots
1
show more


PCI Express x16 (Gen 5.x) slots
1
show more


Number of M.2 (M) slots
1
show more

Operational conditions

Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 40 °C
show more


Storage relative humidity (H-H)
20 – 95%
show more


Operating relative humidity (H-H)
8 – 80%
show more

Packaging data

Package width
Package width
321 mm
show more


Package depth
Package depth
308.5 mm
show more


Package height
Package height
78.5 mm
show more

Weight & dimensions

Width
Width
244 mm
show more


Depth
Depth
244 mm
show more
