MS3580 Quantum T Fixed Bar Code Reader, Laser, GS1-128 (UCC/EAN-128), 0 – 4842 lx, 650 nm, 0 – 360°

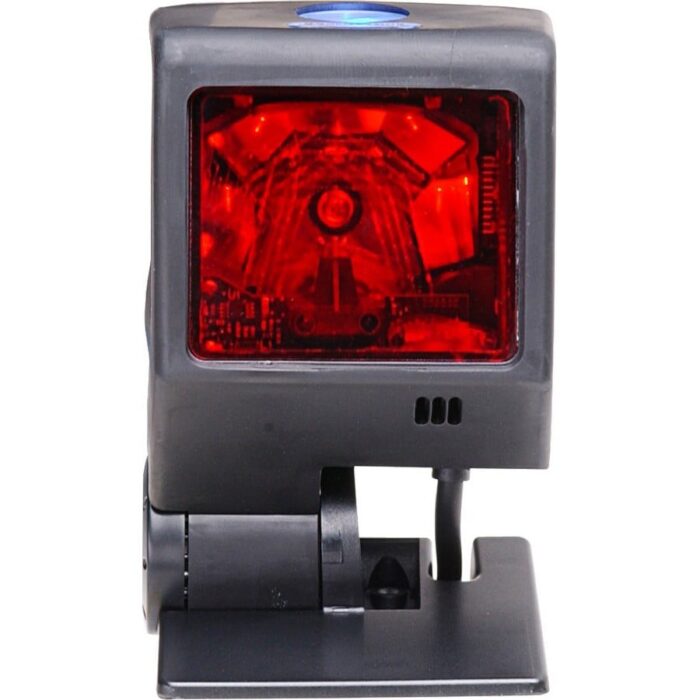

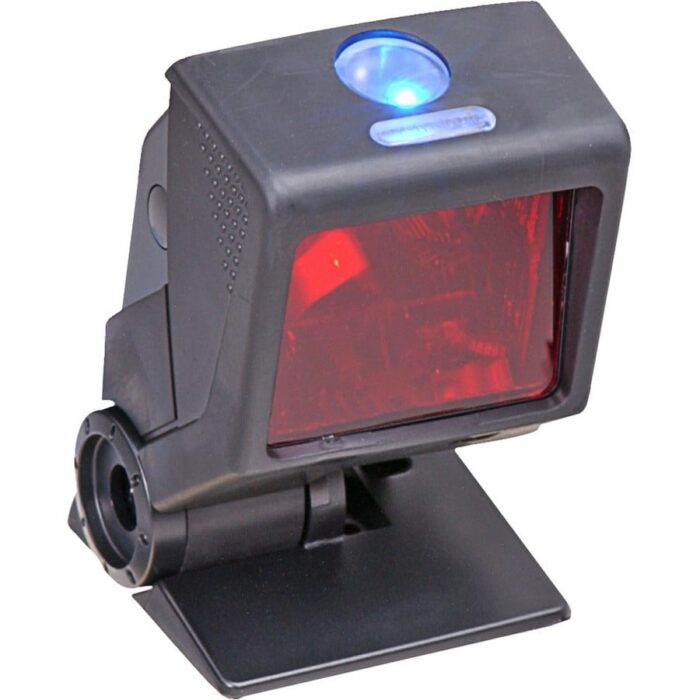

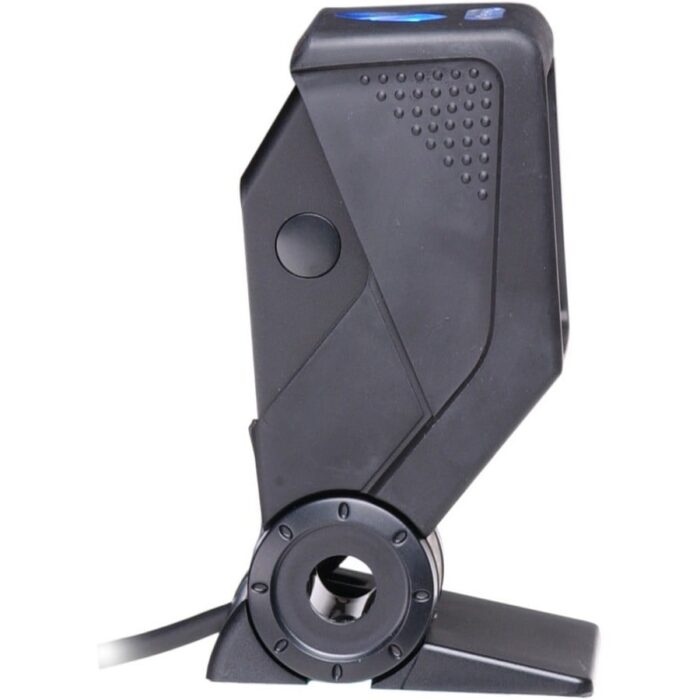

The Honeywell MS3580 Quantum T is a fixed bar code reader that utilizes laser sensor technology. It supports linear (1D) barcodes such as GS1-128 (UCC/EAN-128). The device employs wired connectivity and offers standard USB interfaces. It is available in black and has been certified under IEC60825-1, EN60825-1, FCC, ICES, and EN55022. The bar code reader operates using an AC power source, with a typical power consumption of 1.4 watts and a standby power consumption of 1.2 watts. The product weighs 170 grams and has dimensions of 67 mm in width and 66 mm in depth.

Scanning

Type
Type
Fixed bar code reader
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Not supported
show more


Sensor type
Sensor type
Laser
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
GS1-128 (UCC/EAN-128)
show more


Light levels (direct sunlight)
0 – 4842 lx
show more


Wavelength
Wavelength
650 nm
show more


Tilt reading angle
0 – 360°
show more


Pitch reading angle
0 – 60°
show more


Yaw reading angle
0 – 60°
show more


Maximum scan width
27.9 cm
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
USB
show more

Performance

Buzzer
Yes
show more


Product colour
Product colour
Black
show more


Certification
IEC60825-1, EN60825-1, FCC, ICES, EN55022
show more

Power

Power source type
Power source type
AC
show more


Power consumption (typical)
Power consumption (typical)
1.4 W
show more


Power consumption (standby)
Power consumption (standby)
1.2 W
show more


Input voltage
Input voltage
5 V
show more

Weight & dimensions

Width
Width
67 mm
show more


Depth
Depth
66 mm
show more


Height
Height
108 mm
show more


Weight
Weight
170 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-20 – 40 °C
show more

Logistics data

Harmonized System (HS) code
84716070
