Honeywell Eclipse 5145 1D Kit RS232 Black

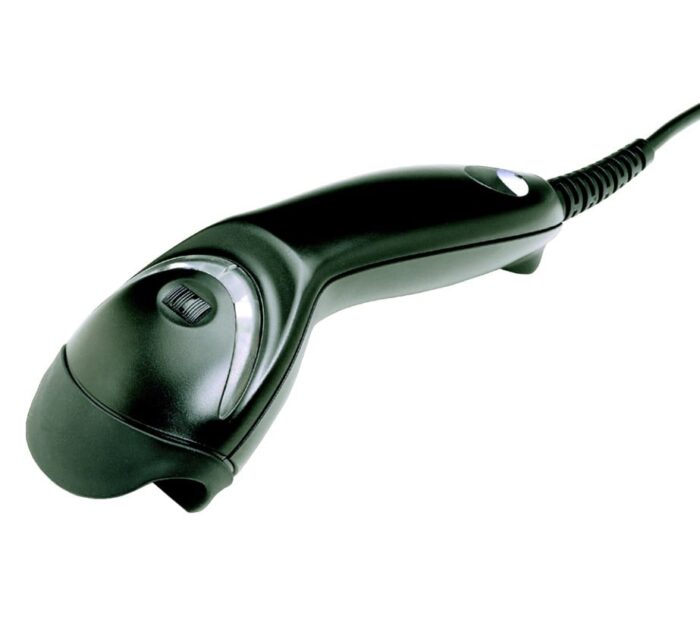

The Honeywell MS5145 Eclipse is a handheld barcode reader designed for 1D scanning. It utilizes a laser sensor to accurately capture barcode information. This device features wired connectivity and comes with standard RS-232 interfaces. The cable length is 2.1 meters, providing ample reach for various applications. The reader is available in a sleek black color and is certified for 1D, GS1, FCC Part 15, ICES-003, RoHS, and EN55022 Class B standards, ensuring compliance and reliability. It operates with a DC power source, consuming 0.672 watts on average, and requires an input voltage of 5 volts. The device is lightweight, weighing 100 grams, and has dimensions of 63 mm in width and 169 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Not supported
show more


Sensor type
Sensor type
Laser
show more


Working distance
150 cm
show more


Read rate (max)
42 reads/s
show more


Light levels (direct sunlight)
0 – 4842 lx
show more


Wavelength
Wavelength
650 nm
show more


Tilt reading angle
0 – 52°
show more


Pitch reading angle
0 – 68°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
RS-232
show more


Cable length
Cable length
2.1 m
show more

Performance

LED indicators
Yes
show more


Product colour
Product colour
Black
show more


Certification
1D, GS1, FCC Part 15, ICES-003, RoHS, EN55022 Class B
show more

Power

Power source type
Power source type
DC
show more


Power consumption (typical)
Power consumption (typical)
0.672 W
show more


Input voltage
Input voltage
5 V
show more


Power consumption
675 mA
show more

Weight & dimensions

Width
Width
63 mm
show more


Depth
Depth
169 mm
show more


Height
Height
51 mm
show more


Weight
Weight
100 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more
