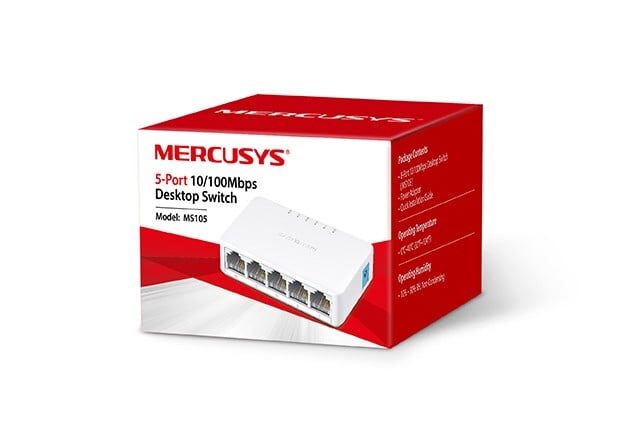

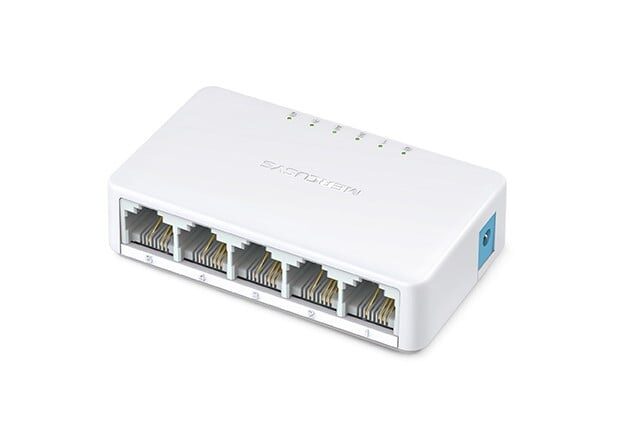

TP-LINK MS105 5-Port 10/100Mbps Desktop Switch, SPEC: 5× 10/100 Mbps Ports

The Mercusys MS105, crafted by TP-LINK, is a high-performance unmanaged switch designed to offer seamless and fast Ethernet connectivity. It features five RJ-45 Ethernet ports that support speeds of 10/100 Mbps, making it suitable for various networking needs in both home and small office environments. Each port operates in full duplex mode, allowing data to be transmitted simultaneously in both directions, which significantly boosts overall network efficiency.

This switch complies with essential networking standards such as IEEE 802.3, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility and reliable performance across different network configurations. Its compact design makes it perfect for desktop placement, conserving workspace while delivering essential connectivity for a range of devices. The straightforward setup process, powered via a DC-in jack, simplifies maintenance and enhances the user experience.

Ideal for expanding network connections, the Mercusys MS105 enables users to easily connect multiple devices, including computers, printers, and storage servers, to a single network. It stands out with its robust performance and reliability, making it an excellent choice for those seeking to enhance their network infrastructure without the complexities associated with managed switches. Trust in TP-LINK's quality and innovation to effectively meet your networking needs.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
2000
show more


Packet buffer memory
0.768 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
White
show more


LED indicators
LAN, Power
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


Input current
0.6 A
show more


Input voltage
Input voltage
5 V
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
82 mm
show more


Depth
Depth
49 mm
show more


Height
Height
21 mm
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Packaging data

Package width
Package width
87 mm
show more


Package depth
Package depth
80 mm
show more


Package height
Package height
57 mm
show more


Package weight
Package weight
140 g
show more

Certificates

Certification
CE, RoHS
show more
