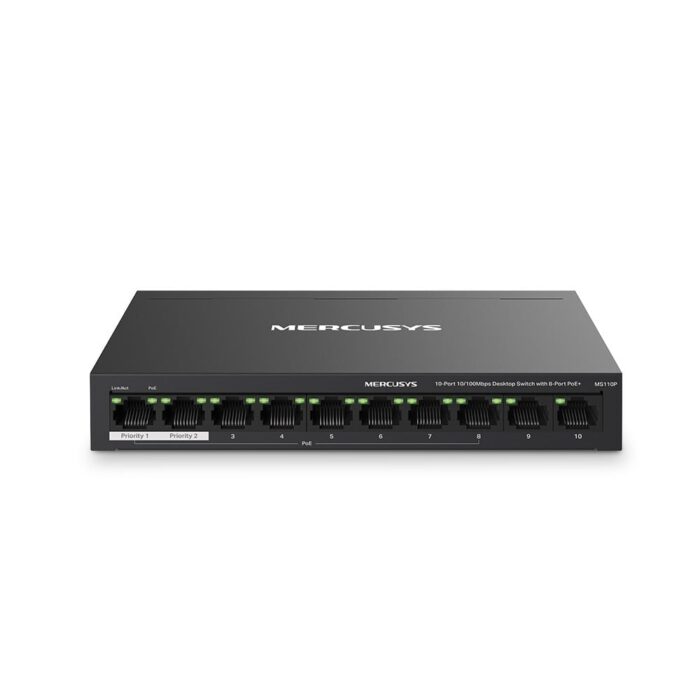

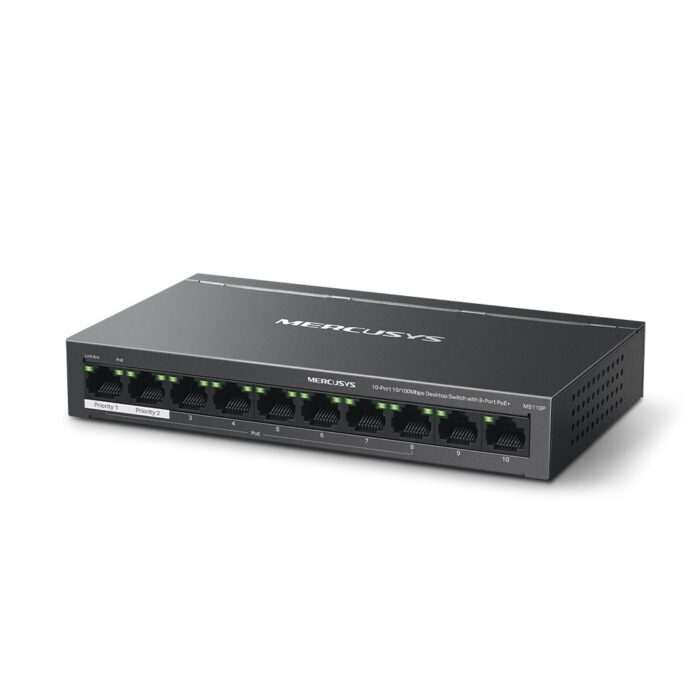

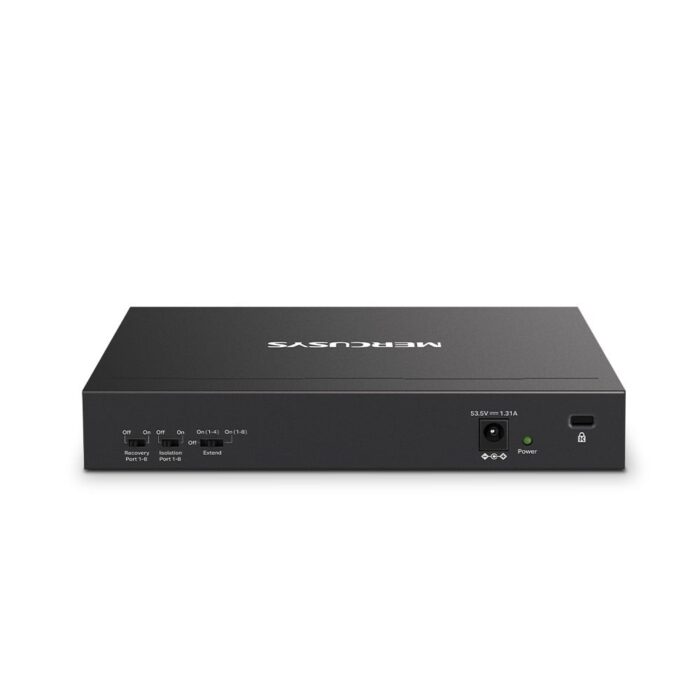

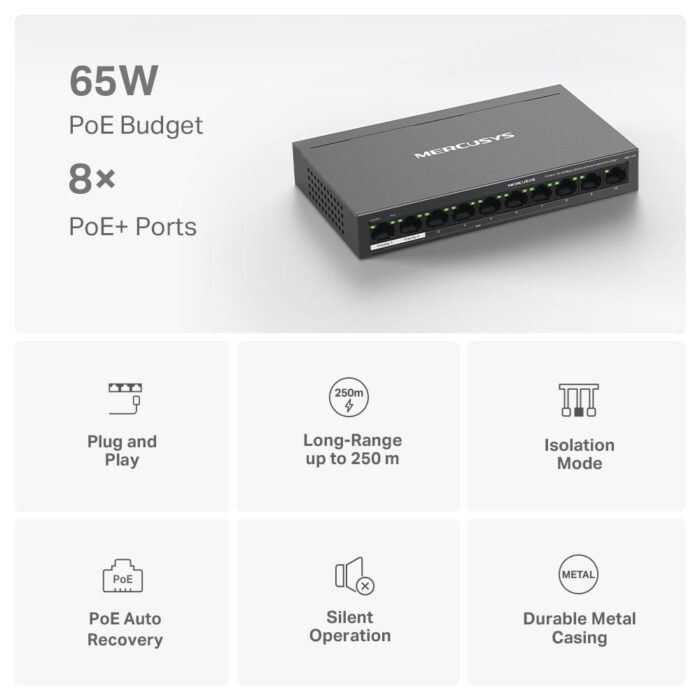

TP-Link MS110P 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Enhance your network connectivity with the TP-Link MS110P, a desktop switch designed for efficient network traffic management. This device features 10 ports, each capable of supporting speeds up to 100Mbps, making it suitable for various networking tasks. With eight PoE+ (Power over Ethernet Plus) ports, the MS110P allows for the transmission of power and data over a single cable, simplifying the setup of devices like IP cameras, VoIP phones, and wireless access points. This capability reduces the need for additional power supplies and outlets, providing a cleaner and more efficient networking solution.

The TP-Link MS110P is designed for easy installation and minimal maintenance, featuring a plug-and-play setup that does not require software installation or configuration. Its compact design ensures it can be placed in small spaces or on desktops, making it a versatile addition to any office or home network setup. The robust metal casing of the switch is built to withstand daily use while ensuring sustained performance and durability, setting it apart from many competitors in the market.

Additionally, the device supports Auto-MDI/MDIX, eliminating the need for crossover cables and simplifying the installation process. The TP-Link brand is renowned for its commitment to quality and innovation in networking solutions, and the MS110P exemplifies this dedication. With its combination of performance, reliability, and ease of use, this switch is an excellent choice for enhancing your network infrastructure.

Management features

Switch type
Switch type
Managed
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
10
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
show more


10G support
10G support
No
show more


Policy-based routing
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

MAC address table
MAC address table
2000 entries
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black
show more


Wall mountable
Wall mountable
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
53.5 V
show more


Input current
1.31 A
show more


Power consumption (typical)
Power consumption (typical)
2.96 W
show more


Power consumption (max)
Power consumption (max)
77.52 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
8
show more


Power over Ethernet plus (PoE+) ports quantity
2
show more


Power over Ethernet (PoE) power per port
65 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more


Heat dissipation
Heat dissipation
263.568 BTU/h
show more

Weight & dimensions

Width
Width
171 mm
show more


Depth
Depth
98 mm
show more


Height
Height
27 mm
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
No
show more
