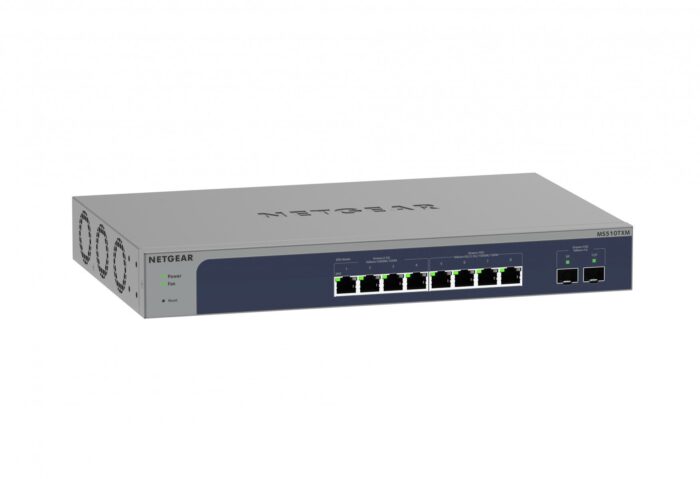

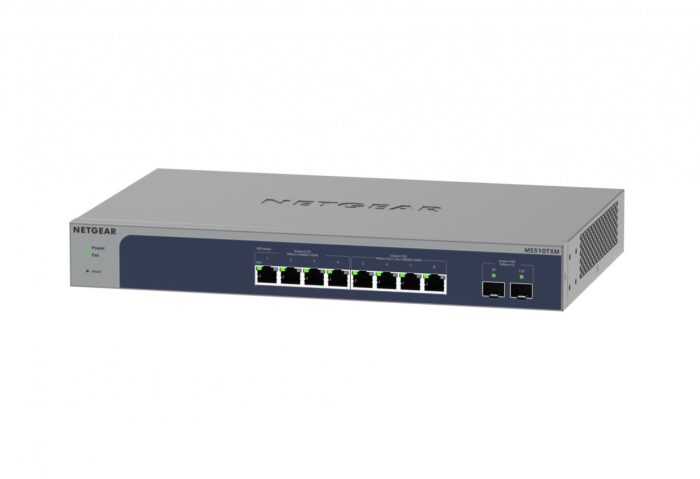

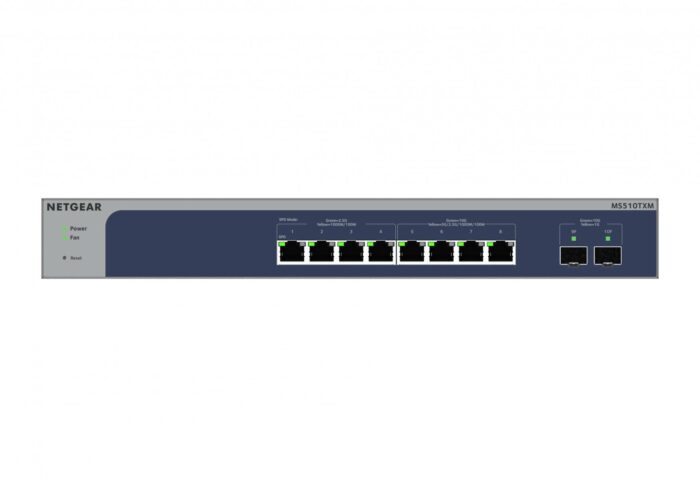

NETGEAR 8-Port Multi-Gigabit/10G Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

The NETGEAR 8-Port Multi-Gigabit/10G Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM) is a managed switch designed for high-performance network management. Operating at Layer 2+, it features eight RJ-45 Ethernet ports that support 10G Ethernet speeds, accommodating connections at 100/1000/10000 Mbps. The switch comes with an extensive MAC address table capable of storing up to 32,000 entries, and boasts a robust switching capacity of 140 Gbit/s. It adheres to multiple networking standards including IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, among others. This model is also suitable for rack mounting, providing flexibility in its installation and integration into existing network setups.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2+
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


Cloud-managed
Yes
show more


System event log
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


SFP+ module slots quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


Broadcast storm control
Yes
show more


VLAN support
VLAN support
Yes
show more


Number of VLANs
256
show more

Data transmission

Switching capacity
Switching capacity
140 Gbit/s
show more


MAC address table
MAC address table
32000 entries
show more


Number of queues
8
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more


Packet buffer memory
2 MB
show more

Security

DHCP features
DHCPv6 snooping
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


Queue scheduling algorithms
WRR+SP
show more


Password protection
Password protection
Yes
show more

Multicast features

Multicast support
Yes
show more


Number of multicast groups filtered
256
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Grey
show more


LED indicators
Activity, Fan fail, Link, Power, Speed
show more


Number of fans
Number of fans
2 fan(s)
show more

Performance

Built-in processor
Built-in processor
Yes
show more


Processor frequency
Processor frequency
1000 MHz
show more


Internal memory
Internal memory
256 MB
show more


Flash memory
64 MB
show more


Noise level
Noise level
25 dB
show more


Firmware upgradeable
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
1059519 h
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


Power consumption (max)
Power consumption (max)
47 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 3000 m
show more


Heat dissipation
Heat dissipation
160.458 BTU/h
show more

Weight & dimensions

Width
Width
330 mm
show more


Depth
Depth
206 mm
show more


Height
Height
43 mm
show more


Weight
Weight
2.08 kg
show more

Packaging content

Cables included
AC
show more


User guide
Yes
show more

Packaging data

Rack rails
Yes
show more

Logistics data

Harmonized System (HS) code
85176990
show more
