Ubiquiti NBE-M5-16 – High Quality at an Affordable Price
The Ubiquiti NBE-M5-16 is an efficient solution operating in the 5 GHz band, featuring an integrated radio module with a power level of 28 dBm. It is equipped with a 560 MHz Atheros MIPS 74KC processor, 64 MB of internal memory, and 8 MB of flash memory. The radio system includes a 10/100 Ethernet Port interface and is powered by Power over Ethernet (PoE).
Compact Size
This device is compact in size and built with high-quality components to ensure reliable operation in temperatures ranging from -40 to 70 degrees Celsius.
Installation

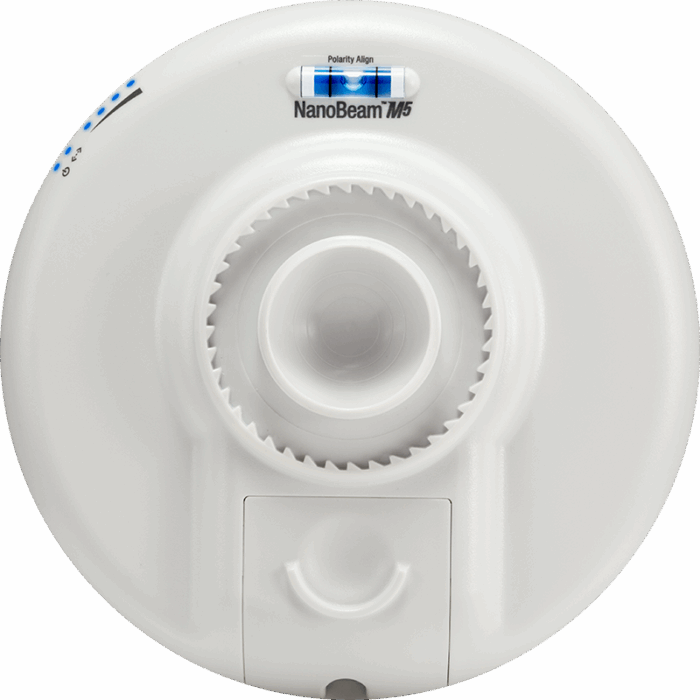

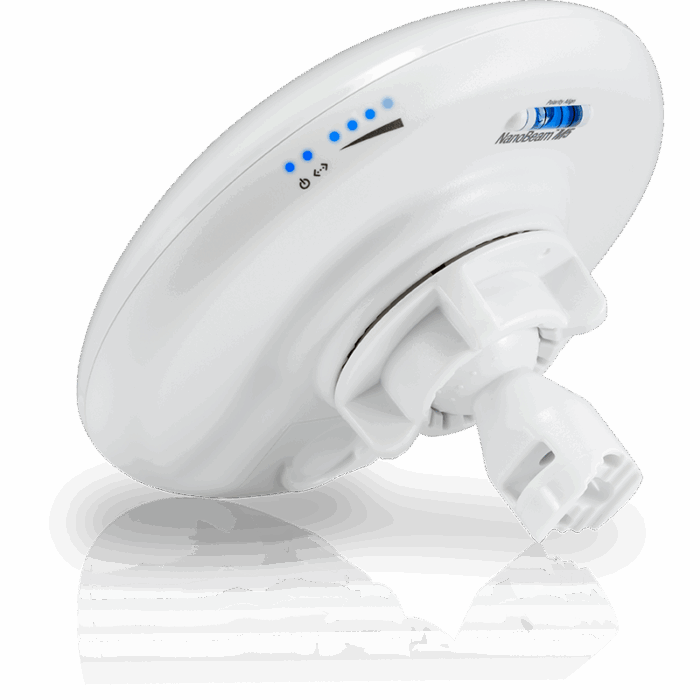

The installation of Ubiquiti NanoBeam M devices is quick and straightforward, featuring a round handle for easy and accurate installation.
Key Features
– Operates in the 5 GHz band
– Offers 150+ Mbps bandwidth
– Provides a range of over 10 km
– Features a 16 dBi antenna power gain
– Equipped with dual linear polarization
– Constructed to be durable and resistant to various atmospheric conditions
Use
The NBE-M5-16 device can function in either router or bridge mode.
Comparison
NBE-M2-13 | NBE-M5-16 | NBE-M5-19 | NBE-5AC-19
FREQUENCY
2.4 GHz | 5 GHz | 5 GHz | 5 GHz
THROUGHPUT
150+ Mbps | 150+ Mbps | 150+ Mbps | 450+ Mbps
RANGE
15+ km | 10+ km | 15+ km | 15+ km
DIMENSIONS
189 x 189 x 125 mm | 140 x 140 x 54 mm | 189 x 189 x 125 mm | 189 x 189 x 125 mm
Manufacturer's Content
Refer to the manufacturer’s documentation for more details and read the manual for further guidance on specifications.
| Mechanical | |
|---|---|
| Dimensions | 140 x 140 x 54 mm (5.5 x 5.5 x 2.1") |
| Weight | 320 g (0.7 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount (Kit included), wall-mount |
| Wind loading | 21.4 N @ 200 km/h (4.8 lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mechanical | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN, signal srtength |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% Noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| System | |
| Gain | 16 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency MHz | |
| Worldwide | 5150 – 5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 5250 – 5350 5470 – 5725 5725 – 5850 |
