NBG7510 AX1800 Dual-Band WiFi 6 Router EU RoHs

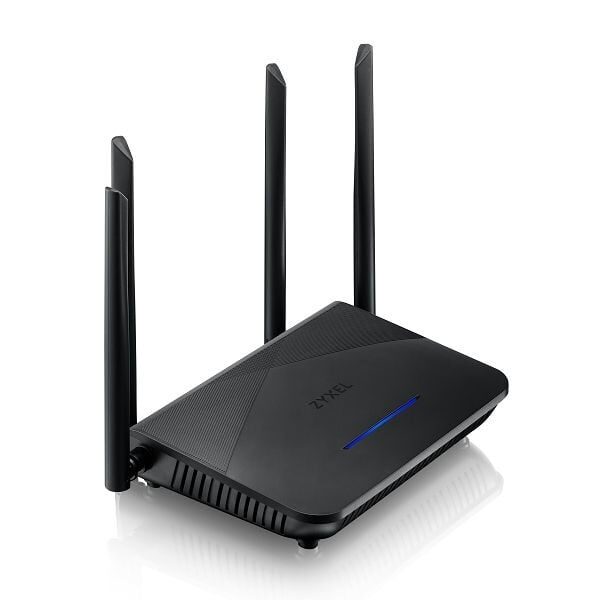

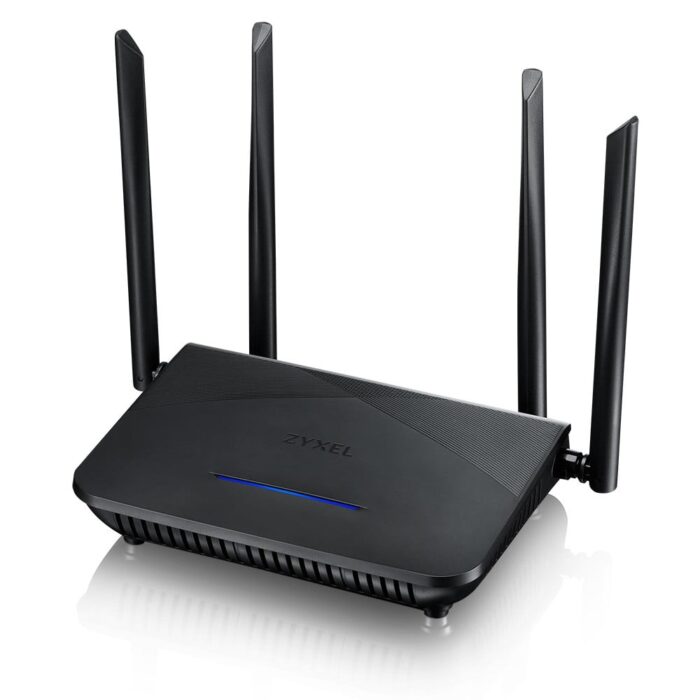

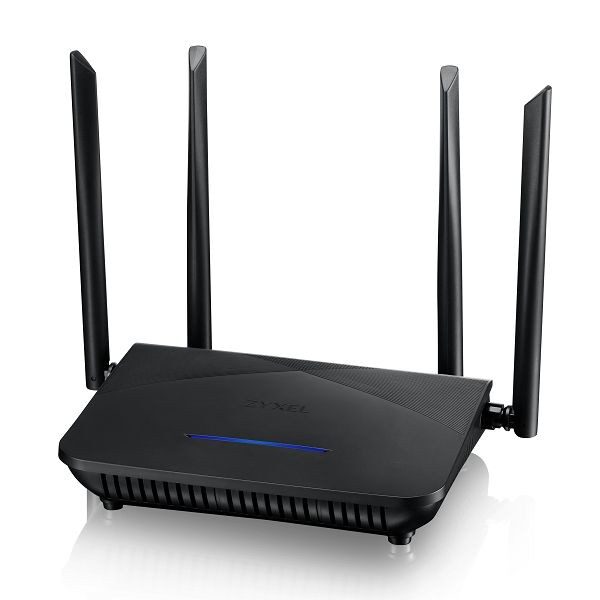

The Zyxel NBG7510 is a tabletop router designed for high-speed internet connections. It features an RJ-45 WAN connection type, supporting dual-band Wi-Fi with frequencies of 2.4 GHz and 5 GHz. The router adheres to the Wi-Fi 5 (802.11ac) standard and can reach a maximum WLAN data transfer rate of 1800 Mbit/s. For wired connections, it offers a Gigabit Ethernet LAN interface with data rates of 10, 100, and 1000 Mbit/s, utilizing 10/100/1000Base-T(X) cabling technology. This product is available in black and holds certifications including CE, FCC, BSMI, and NCC.

WAN connection

Ethernet WAN
Yes
show more


DSL WAN
DSL WAN
No
show more


3G/4G USB modem compatibility
No
show more


WAN connection type
RJ-45
show more

Wireless LAN features

Wi-Fi band
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
show more


WLAN data transfer rate (max)
1800 Mbit/s
show more


Wi-Fi standards
Wi-Fi standards
802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
show more


WLAN data transfer rate (first band)
600 Mbit/s
show more


WLAN data transfer rate (second band)
1200 Mbit/s
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN interface type
Ethernet LAN interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Cabling technology
Cabling technology
10/100/1000Base-T(X)
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


VPN support
IPSec/PPTP/L2TP
show more

Mobile network

5G
Yes
show more

Ports & interfaces

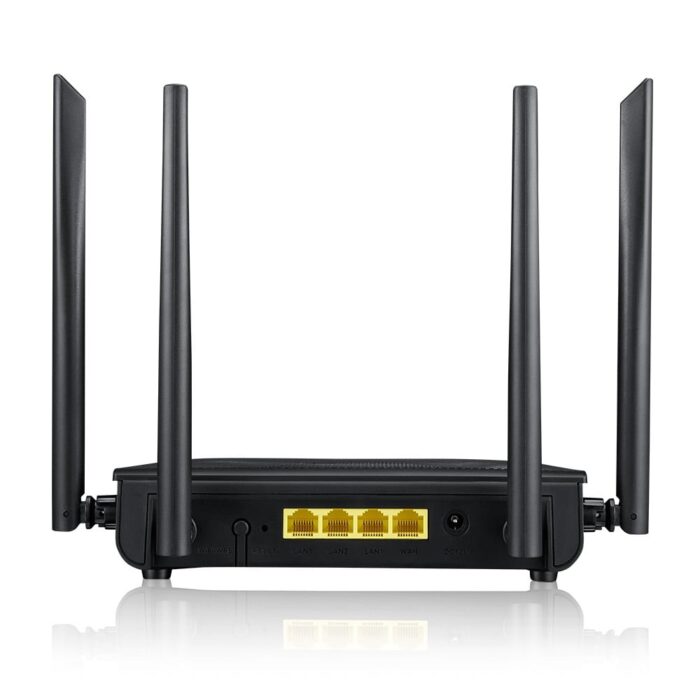

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
5
show more


USB port
USB port
Yes
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more

Management features

Web-based management
Web-based management
Yes
show more


Reset button
Yes
show more


WPS push button
Yes
show more

Security

Filtering
Yes
show more


MAC address filtering
MAC address filtering
Yes
show more


Network address translation (NAT)
Yes
show more

Protocols

DHCP client
DHCP client
Yes
show more


DHCP server
DHCP server
Yes
show more


Universal Plug and Play (UPnP)
Yes
show more

Design

Product colour
Product colour
Black
show more


Product type
Product type
Tabletop router
show more

Certificates

Certification
CE, FCC, BSMI, NCC
show more

Packaging content

Cables included
DC, LAN (RJ-45)
show more


Manual
Yes
show more


Quick installation guide
Yes
show more


Quick start guide
Quick start guide
Yes
show more

Antenna

Antenna design
External
show more


Antenna gain level (max)
Antenna gain level (max)
5 dBi
show more


Antennas quantity
2
show more


Detachable antenna(s)
No
show more

Features

Firmware upgradeable
Yes
show more


Safety
Safety
CE-LVD, BSMI
show more

Power

Power source type
Power source type
DC
show more


Output voltage
12 V
show more


Output current
1 A
show more


Power consumption (typical)
Power consumption (typical)
12 W
show more

Operational conditions

Storage relative humidity (H-H)
10 – 90%
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-30 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Weight & dimensions

Weight
Weight
331 g
show more


Height
Height
196 mm
show more


Depth
Depth
157 mm
show more


Width
Width
225 mm
show more

Packaging data

Number of products included
Number of products included
1 pc(s)
show more

Logistics data

Harmonized System (HS) code
85176990
