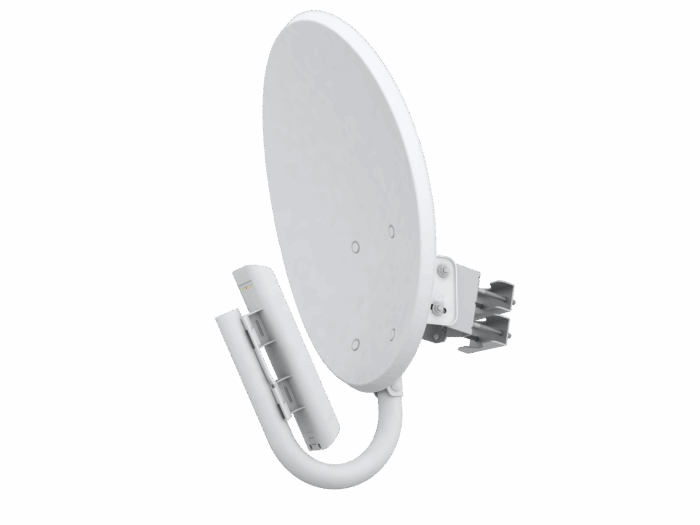

Ubiquiti Networks NBM365 Network Antenna TNC 22.5 dBi

NBM365 is an innovative Ubiquiti system that offers a high-quality solution for operating in the 3.65 GHz band, providing a bandwidth of over 150 Mbps. This comprehensive system by Ubiquiti stands out with its excellent quality to price ratio. The NanoBridge M series integrates Ubiquiti's InnerFeed and airMax (MIMO TDMA Protocol) technologies, offering a simpler yet highly efficient and reliable solution for high bandwidth needs.

The system operates with an Atheros MIPS 24KC 400 MHz processor and features 32 MB of internal memory along with 8 MB of flash drive memory. It can be powered through Power over Ethernet (PoE).

Installation of the NBM365 is quick and effortless. The durable construction ensures high performance even in adverse weather conditions and temperatures ranging from -30 to 75 degrees Celsius.

The NBM365 complements the NanoBridge M series with its antenna, which boasts a gain of 22 dBi.

Key features of the system include operation in the 3.65 GHz band, bandwidth over 150 Mbps, a range of 30 km, an antenna gain between 21.5 to 22.5 dBi, and a robust build that resists harsh weather. It also incorporates InnerFeed and airMax technology.

This device is low-cost, efficient, and solidly designed, making it versatile and suitable for various environments.

For comparison:
– NBM9 operates in the 900 MHz frequency, with a throughput of over 150 Mbps, a range of over 20 km, and a gain between 10.6 to 11.3 dBi. Its dimensions are 543 x 440 x 725 mm and it features one 10/100 Ethernet Port.
– NBM3 functions in the 3 GHz frequency, also with over 150 Mbps throughput, a range of over 30 km, and a gain between 21.5 to 22.5 dBi. Its dimensions are 492 x 440 x 705 mm and it includes two 10/100 Ethernet Ports.
– NBM365 works in the 3.65 GHz frequency, with similar specifications as NBM3, including throughput, range, gain, dimensions, and networking interfaces.

Further information can be found in the manufacturer's documentation and manual.
