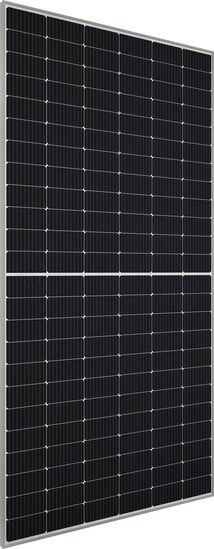

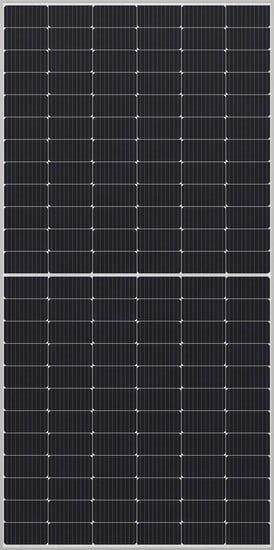

Photovoltaic Module SHARP 540W, Half-Cut, Multi BB, Silver Frame, White Backsheet, 35 mm Frame

The Sharp NU-JD540 is a high-performance solar panel with a rated power of 540 watts. It operates at a voltage of 41.64 volts at maximum power and a current of 12.97 amps. This panel is made using monocrystalline silicon cells, known for their efficiency and durability. It features an MC4 connector type and comes in a sleek black color. Manufactured in China, the dimensions of this solar panel are 1134 mm in width, 35 mm in depth, and 2279 mm in height.

Power

Rated power
Rated power
540 W
show more


Power tolerance
5%
show more


Maximum system voltage
1500 V
show more


Short-circuit current (Isc)
13.66 A
show more


Voltage at open-circuit (Voc)
50.34 V
show more


Voltage at maximum power (Vmp)
41.64 V
show more


Current at maximum power (Imp)
12.97 A
show more

Features

Solar cell type
Monocrystalline silicon
show more


Connector type
Connector type
MC4
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Aluminium
show more


Protection class
II
show more


International Protection (IP) code
International Protection (IP) code
IP68
show more


Fire-resistance rating
Class C (UL 790)
show more


Fire-resistant
Yes
show more


Cell efficiency
20.9%
show more


Number of cells
144
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 90 °C
show more

Logistics data

Country of origin
Country of origin
China
show more

Weight & dimensions

Width
Width
1134 mm
show more


Depth
Depth
35 mm
show more


Height
Height
2279 mm
show more


Weight
Weight
27.8 kg
show more
