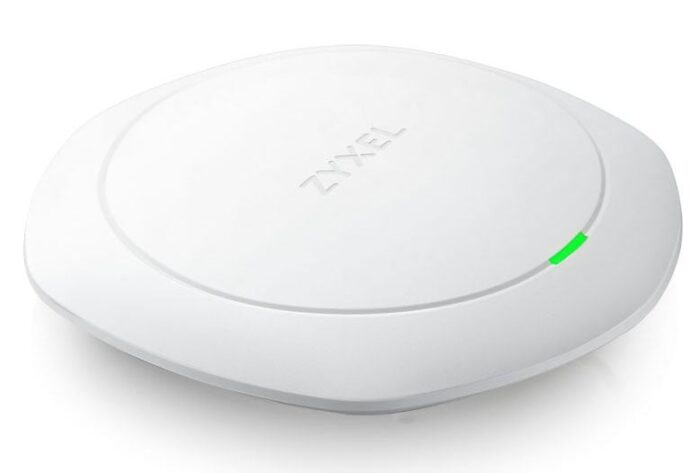

NWA5123 AC HD Wave 2 Standalone / Controller 2×2:3×3 MU-MIMO Access Point

The Zyxel NWA5123 AC HD is a dual-band wireless access point operating on both 2.4 GHz and 5 GHz frequencies. It offers a maximum data transfer rate of 1300 Mbit/s, ensuring high-speed connectivity. The device supports advanced security algorithms including 802.1x RADIUS, EAP, LEAP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, and WPA2-PSK, providing robust protection for your network. The Ethernet LAN data rates are 10, 100, and 1000 Mbit/s, ensuring versatile and efficient wired connections. Additionally, it features Power over Ethernet (PoE) for convenient power and data transmission through a single cable. The Zyxel NWA5123 AC HD comes in a sleek white color.

Features

2.4 GHz
Yes
show more


5 GHz
Yes
show more


Maximum data transfer rate
Maximum data transfer rate
1300 Mbit/s
show more


Wi-Fi data rate (max)
1300 Mbit/s
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Throughput data rate
1600 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
show more


Channel bandwidth
80 MHz
show more


MIMO
Yes
show more


Modulation
Modulation
16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK
show more


Wi-Fi Multimedia (WMM) features
WMM power saving
show more


VLAN support
VLAN support
Yes
show more


Maximum Likelihood Detection (MLD)
Yes
show more


Maximal-Ratio Combining (MRC)
Yes
show more


Cyclic Delay Diversity (CDD)
Yes
show more


Quality of Service (QoS) support
Yes
show more


Receiver sensitivity
-103 dBm
show more

Security

Security algorithms
Security algorithms
802.1x RADIUS, EAP, LEAP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
show more


MAC address filtering
MAC address filtering
Yes
show more


Number of SSID supported
16
show more


Access Control List (ACL)
Yes
show more

Protocols

DHCP client
DHCP client
Yes
show more


Management protocols
SNMP v2c/v3
show more

Management features

Switch type
Switch type
Managed
show more


Batch upgrade
Yes
show more


Firmware upgradeable
Yes
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


RS-232 interface
Yes
show more


DC-in jack
DC-in jack
Yes
show more

Power

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


AC input frequency
50 – 60 Hz
show more


AC input voltage
AC input voltage
100 – 240 V
show more


Output voltage
12 V
show more


Output current
2 A
show more


Power consumption (typical)
Power consumption (typical)
15.5 W
show more

Design

Placement
Placement
Ceiling, Wall
show more


Product colour
Product colour
White
show more


Cable lock slot
Cable lock slot
Yes
show more


Cable lock slot type
Kensington
show more


Internal
Internal
No
show more

Antenna

Antenna gain level (max)
Antenna gain level (max)
3 dBi
show more

Weight & dimensions

Width
Width
211 mm
show more


Depth
Depth
223 mm
show more


Height
Height
39 mm
show more


Weight
Weight
750 g
show more

Packaging data

Package width
Package width
251 mm
show more


Package depth
Package depth
247 mm
show more


Package height
Package height
55 mm
show more


Package weight
Package weight
990 g
show more

Packaging content

AC adapter included
No
show more


Mounting kit
Yes
show more

Operational conditions

Operating relative humidity (H-H)
10 – 90%
show more


Operating temperature (T-T)
Operating temperature (T-T)
-20 – 60 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Storage relative humidity (H-H)
10 – 90%
show more

Logistics data

Harmonized System (HS) code
85176990
show more
