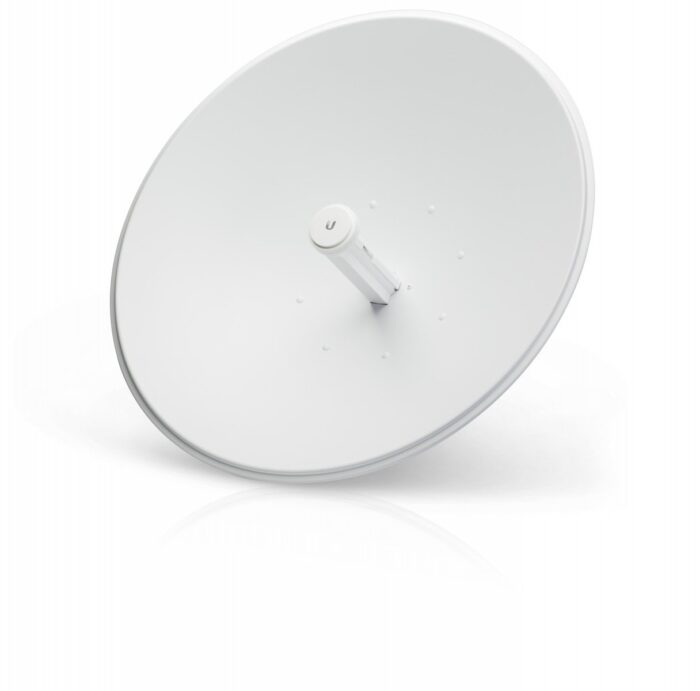

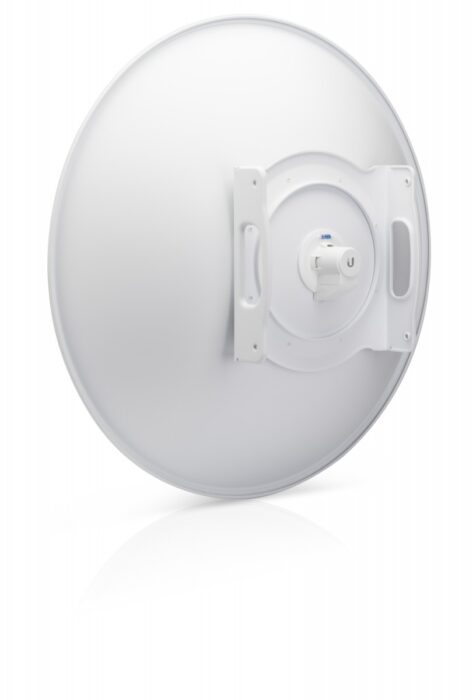

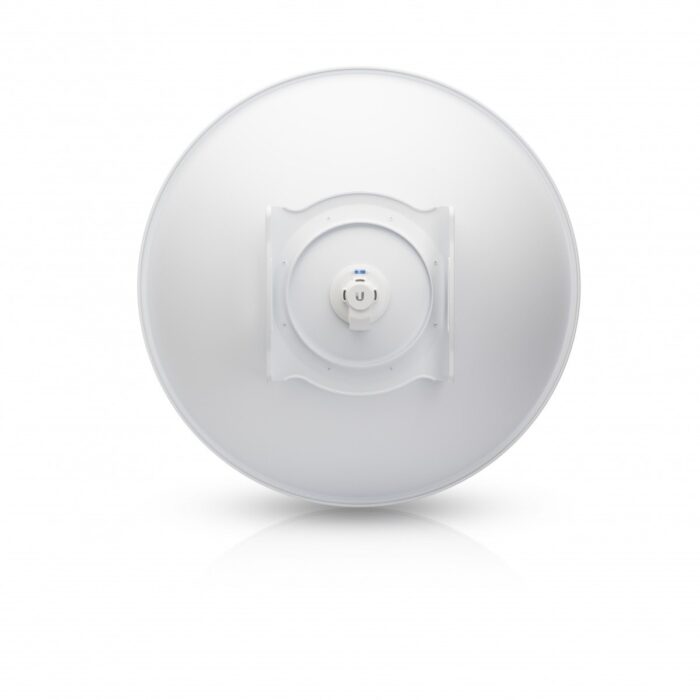

Ubiquiti Networks PBE-M5-620 Network Antenna Sector Antenna 29 dBi

The PBE-M5-620 is a reliable radio system from Ubiquiti, designed with innovative solutions such as InnerFeed and AirMax technologies. It operates on the 802.11n MIMO 2×2 standard in the 5 GHz band and offers a bandwidth of 150 Mbps.

**Construction**
This device is compact yet highly durable, capable of operating in temperatures from -40 to 70 degrees Celsius and handling relative humidity levels up to 95%. Its elegant casing is designed to seamlessly blend with any environment.

**Antenna**
The PBE-M5-620 is outfitted with a maximum gain antenna of 29 dBi and utilizes InnerFeed technology for optimal performance.

**Performance**
The system is powered by a 560 MHz Atheros MIPS 74KC processor and includes 64 MB of internal memory alongside an 8 MB flash drive. AirMax technology is employed to enhance efficiency and minimize interference.

**Key Features**
– Operates in the 5 GHz band
– Offers a bandwidth of over 150 Mbps
– Has a range of more than 30 km
– Provides 29 dBi gain
– Built with solid construction
– Features Dual-Linear polarization

**Installation**
The PBE-M5-620 is designed for intuitive installation, ensuring a quick and hassle-free setup process for the user.

**Comparison**

| | PBE-M5-620 | PBE-M5-400 | PBE-M5-300 | PBE-M2-400 |
|—————–|———|———|———|———|
| Frequency Band | 5 GHz | 5 GHz | 5 GHz | 2.4 GHz |
| Antenna Gain | 29 dBi | 25 dBi | 22 dBi | 18 dBi |
| Dish Reflector | 620 mm | 400 mm | 300 mm | 400 mm |
| Network Interface | 10/100/1000 | 10/100/1000 | 10/100 | 10/100 |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 150+ Mbps |
| Range | 30+ km | 25+ km | 20+ km | 20+ km |

For more detailed information, consult the manufacturer's documentation and manual.
