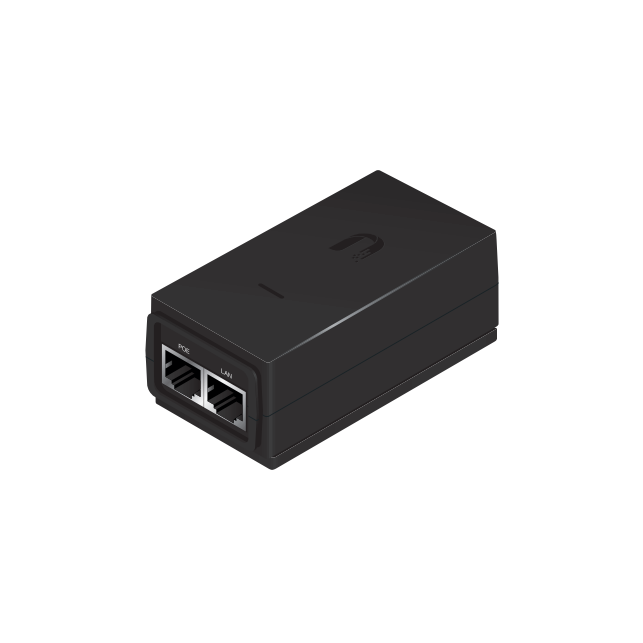

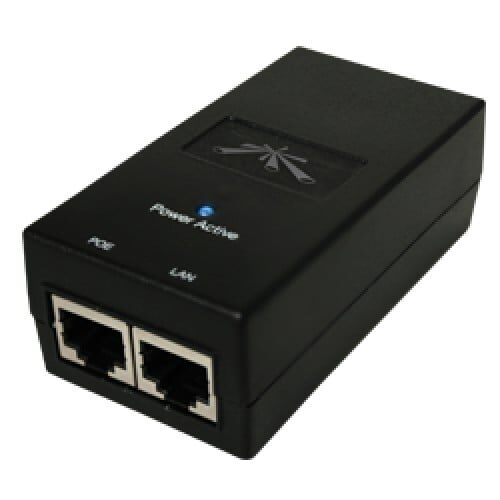

Ubiquiti Networks POE-24-12W-G PoE Adapter 24V

The Ubiquiti POE-24-12W-G adapter is part of Ubiquiti’s reliable and high-quality product range. It features an input voltage of 90-260 V and operates at a frequency of 47-63 Hz. This adapter is designed to be compatible with the airGateway series.

Construction:
The POE-24-12W-G is equipped with two Ethernet LAN ports (RJ-45) and is dedicated to powering devices with 24 V and 0.5 A. It includes a power signal LED and a reset button for easy operation.

Use:
The adapter is suitable for use with CPE client stations and base stations, and it can operate in temperatures up to 40 degrees Celsius. Optional mounting brackets allow for wall installation.

Key Features:
– Two Ethernet LAN (RJ-45) ports
– 24 V PoE
– 90-260 V voltage compatibility

Comparison:

– POE-15-12W: Output Voltage – 15VDC @ 0.8A, Gigabit LAN Port – No, Dimensions – 85 x 44 x 29 mm
– POE-24-12W: Output Voltage – 24VDC @ 0.5A, Gigabit LAN Port – No, Dimensions – 87 x 44 x 29 mm
– POE-24-12W-G: Output Voltage – 24VDC @ 0.5A, Gigabit LAN Port – Yes, Dimensions – 87 x 44 x 29 mm
– POE-24-24W: Output Voltage – 24VDC @ 1.0A, Gigabit LAN Port – No, Dimensions – 88 x 57 x 33 mm
– POE-24-24W-G: Output Voltage – 24VDC @ 1.0A, Gigabit LAN Port – Yes, Dimensions – 88 x 57 x 33 mm

For more details, please refer to the manufacturer's documentation.
