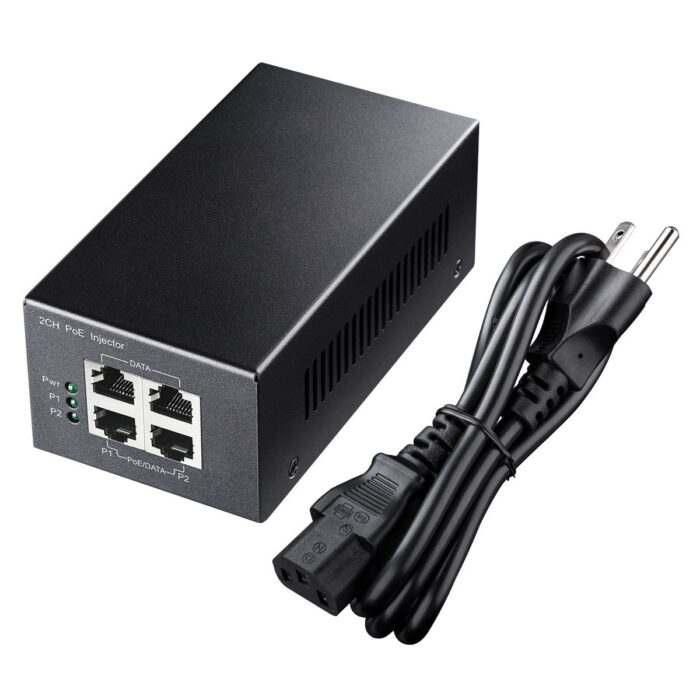

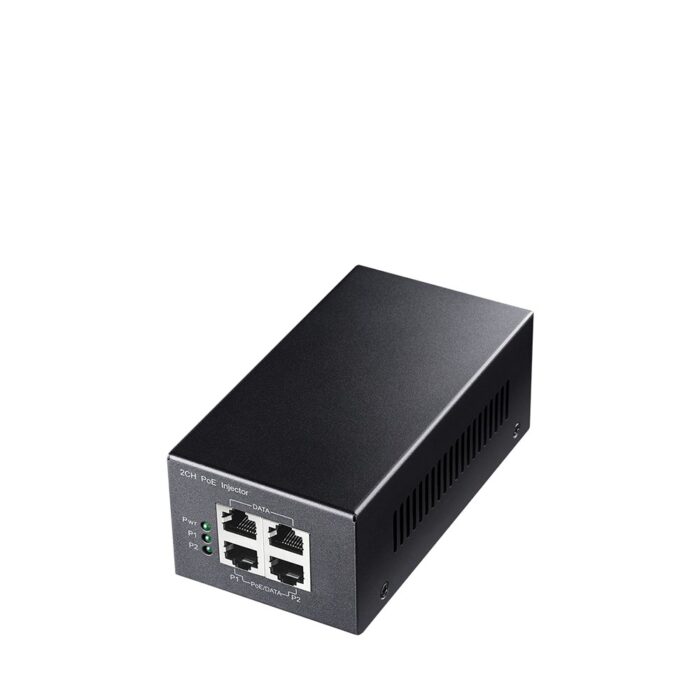

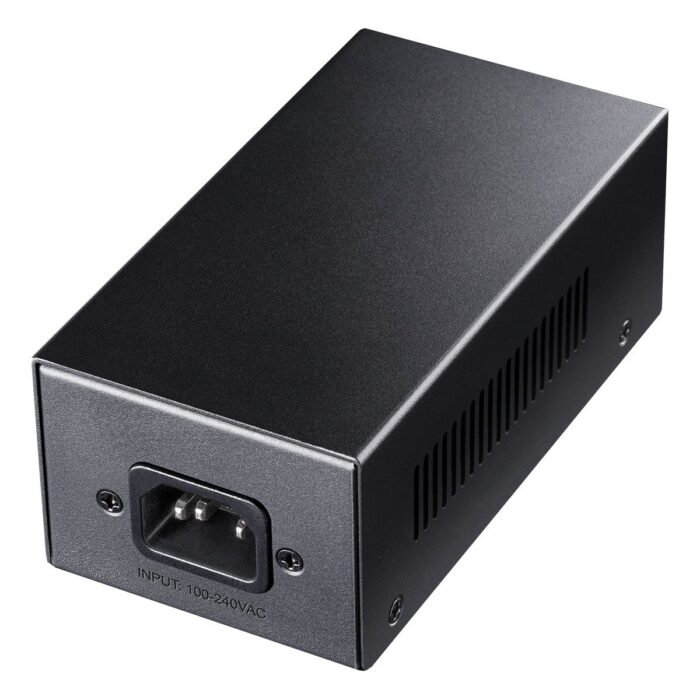

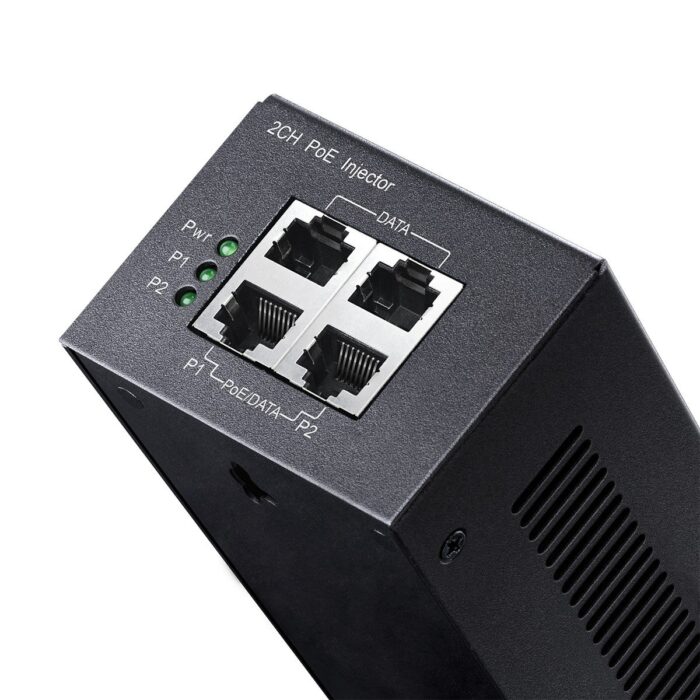

Cudy 2-Channel 30W Gigabit PoE+/PoE Injector

The Cudy POE220 features a Gigabit Ethernet interface and supports Ethernet LAN data rates of 10, 100, and 1000 Mbit/s. It adheres to networking standards IEEE 802.3af and IEEE 802.3at. The product comes in a sleek black color and includes LED indicators for power. Its pin assignment and polarity are 1/2 (-) and 3/6 (+). The device operates with a PoE voltage of 54 V and has an output power of 30 W. It accommodates an AC adapter input voltage ranging from 100 to 240 V. The dimensions of the product are 131 mm in width, 70 mm in depth, and 40 mm in height. The package includes one unit of the product.

Network

Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at
show more

Features

Product colour
Product colour
Black
show more


Wall mountable
Wall mountable
Yes
show more


Easy to install
Yes
show more


Plug and Play
Plug and Play
Yes
show more


LED indicators
Power
show more


Power protection features
Power protection features
Over current, Over voltage, Overload
show more


Pin assignment & polarity
1/2 (-), 3/6 (+)
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
4
show more


RJ-45 input ports
2
show more


RJ-45 output ports
2
show more

Power

Power over Ethernet (PoE) voltage
Power over Ethernet (PoE) voltage
54 V
show more


Output power
Output power
30 W
show more


AC adapter input voltage
100 – 240 V
show more


AC adapter frequency
50 – 60 Hz
show more


Input current
0.5 A
show more


Total Power over Ethernet (PoE) budget
60 W
show more


Power over Ethernet (PoE) power per port
30 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 40 °C
show more


Operating relative humidity (H-H)
10 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 50 °C
show more


Storage relative humidity (H-H)
10 – 90%
show more

Weight & dimensions

Width
Width
131 mm
show more


Depth
Depth
70 mm
show more


Height
Height
40 mm
show more

Packaging content

Number of products included
Number of products included
1 pc(s)
show more


Power cord included
Yes
show more


Quick installation guide
Yes
show more

Packaging data

Package type
Package type
Box
show more
