Cudy 90W Gigabit PoE+/PoE Injector

The Cudy POE400 is equipped with a Gigabit Ethernet interface and supports Ethernet LAN data rates of 10, 100, and 1000 Mbit/s. It adheres to networking standards IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt. The product comes in black and is capable of operating over distances of up to 100 meters. It features LED indicators for PoE and power. The Power over Ethernet voltage is 56 V, with an output power of 90 W. The AC adapter can handle input voltages ranging from 100 to 240 V. The dimensions of the product are 178.5 mm in width, 80 mm in depth, and 46 mm in height. Only one unit is included in the package.

Network

Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
show more

Features

Product colour
Product colour
Black
show more


Wall mountable
Wall mountable
Yes
show more


Plug and Play
Plug and Play
Yes
show more


Surge protection
Yes
show more


Maximum operating distance
Maximum operating distance
100 m
show more

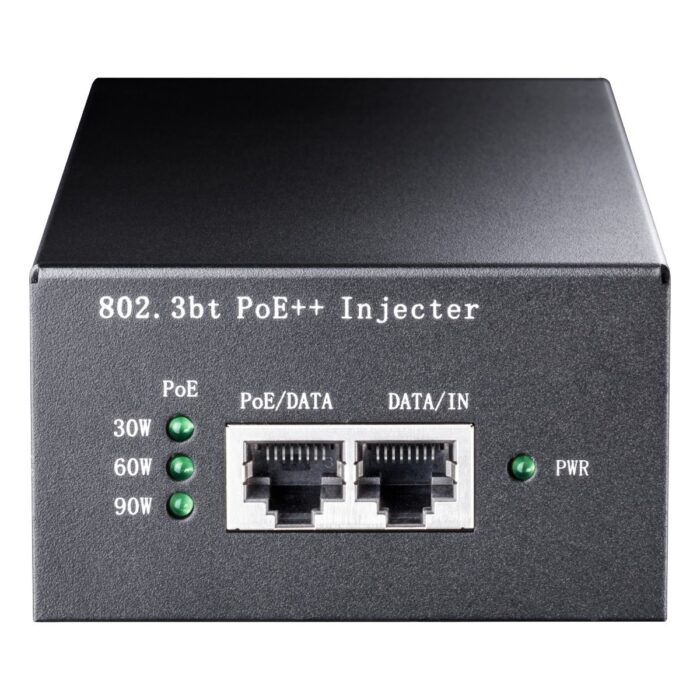

LED indicators
PoE, Power
show more


Power protection features
Power protection features
Over current, Over voltage, Overload
show more


Pin assignment & polarity
1/2 (-), 3/6 (+),4/5 (+), 7/8 (-)
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


RJ-45 input ports
1
show more


RJ-45 output ports
1
show more

Power

Power over Ethernet (PoE) voltage
Power over Ethernet (PoE) voltage
56 V
show more


Output power
Output power
90 W
show more

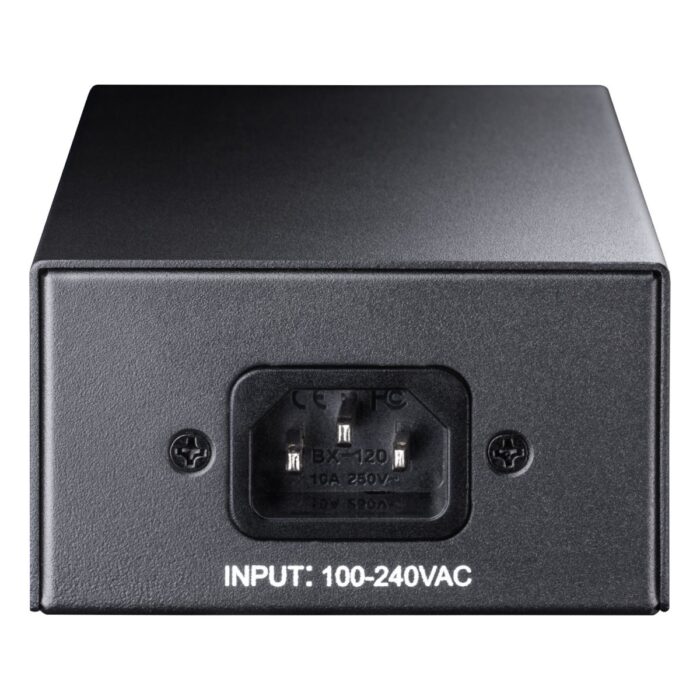

AC adapter input voltage
100 – 240 V
show more


AC adapter frequency
50 – 60 Hz
show more


Input current
1 A
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Operating relative humidity (H-H)
10 – 80%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Storage relative humidity (H-H)
10 – 80%
show more

Weight & dimensions

Width
Width
178.5 mm
show more


Depth
Depth
80 mm
show more


Height
Height
46 mm
show more

Packaging content

Number of products included
Number of products included
1 pc(s)
show more


Power cord included
Yes
show more
