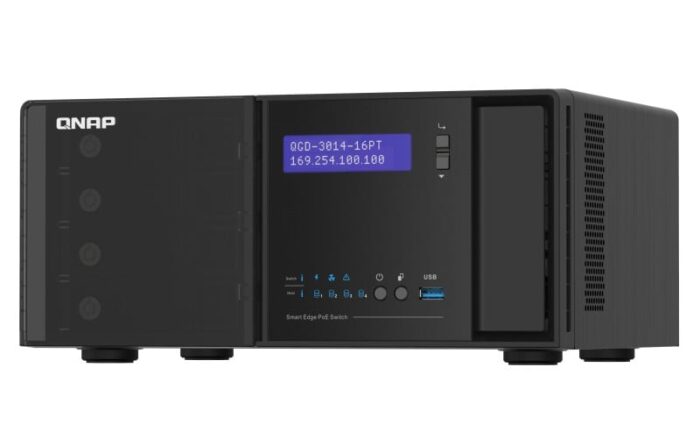

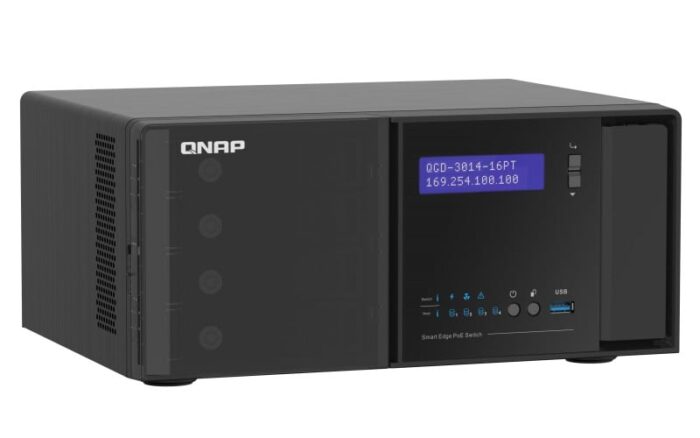

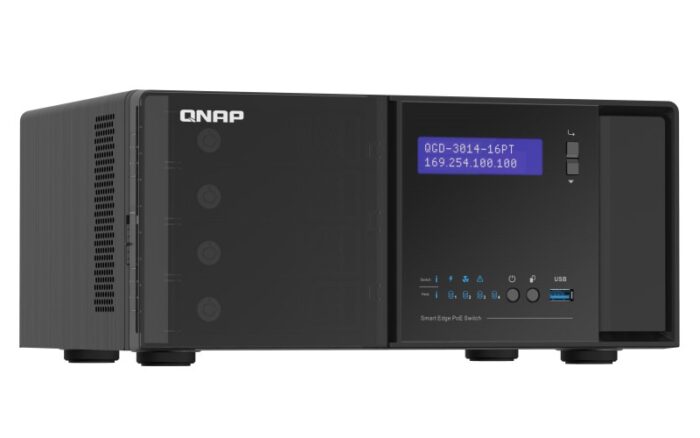

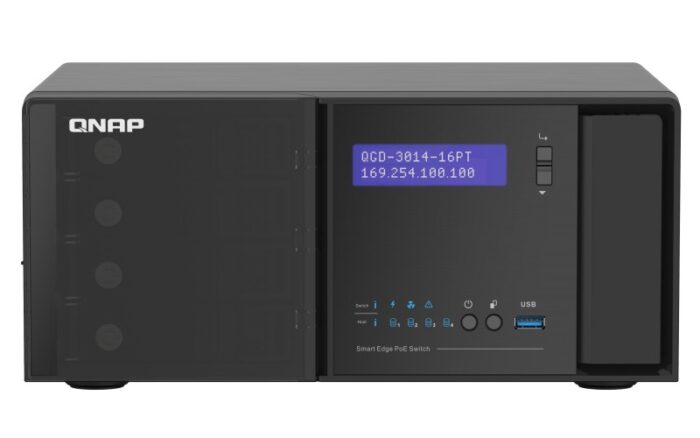

QNAP QGD-3014-16PT-8G Managed L2 Switch, 16 Port PoE Power over Ethernet, 1GbE 10/100/1000 LAN, Intel Celeron J4125, 8GB RAM DDR4, Black

The QNAP QGD-3014-16PT-8G is a managed switch equipped with 14 Gigabit Ethernet (10/100/1000) RJ-45 ports. It supports full duplex operation and has a MAC address table capable of storing up to 8000 entries. The switch boasts a switching capacity of 32 Gbit/s and adheres to several networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, and IEEE 802.3u. Additionally, the QGD-3014-16PT-8G features Power over Ethernet (PoE) capability and can be mounted in a rack for convenient integration into your network infrastructure.

Management features

Switch type
Switch type
Managed
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


Configuring Location Settings (CLI)
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
14
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
14
show more


Combo SFP ports quantity
2
show more


HDMI stacking ports
2
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
1000BASE-T
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Port-based VLAN
show more

Optical fiber

Fiber ethernet cabling technology
1000BASE-X
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Throughput
16 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Jumbo frames support
Yes
show more

Security

DHCP features
DHCP client, DHCP server
show more


IGMP snooping
Yes
show more


Loop protection
Yes
show more


Security algorithms
Security algorithms
256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
show more

Multicast features

Multicast MAC address table
8000 entries
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


Reset button
Yes
show more


LED indicators
Activity, Fault, Link, PoE, Speed
show more


Number of fans
Number of fans
1 fan(s)
show more


Electromagnetic compatibility
Electromagnetic compatibility
CLASS A
show more

Performance

Built-in processor
Built-in processor
Yes
show more


Processor manufacturer
Processor manufacturer
Intel
show more


Processor model
Processor model
Intel Celeron J4125
show more


Processor frequency
Processor frequency
2000 MHz
show more


Memory type
Memory type
DDR4-SDRAM
show more


Internal memory
Internal memory
8192 MB
show more


Flash memory
4000 MB
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
250 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
16
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
140 W
show more

Other features

I/O ports
I/O ports
3x USB 3.2 Gen 1, 2x 2.5GbE
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
295 mm
show more


Depth
Depth
224.8 mm
show more


Height
Height
130 mm
show more


Weight
Weight
4.08 kg
show more

Packaging content

Cables included
AC, LAN (RJ-45)
show more


Quick start guide
Quick start guide
Yes
show more

Packaging data

Package weight
Package weight
5.34 kg
show more

Certificates

Certification
CE, FCC, VCCI, BSMI
show more

Logistics data

Harmonized System (HS) code
85176990
show more
