QNAP QSW-3205-5T Switch 5 x RJ-45 (100M/1G/2.5G/5G/10G)

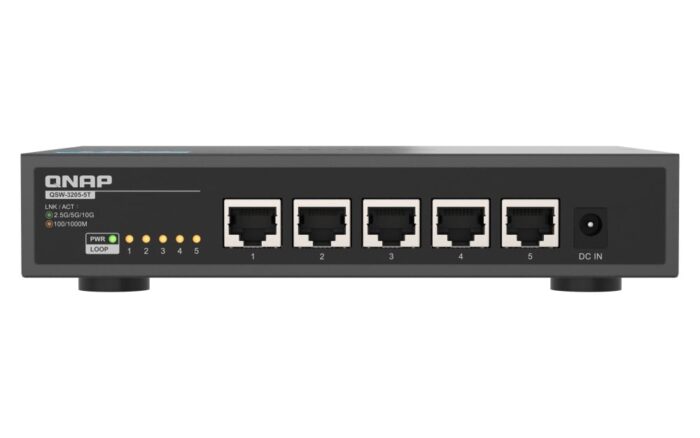

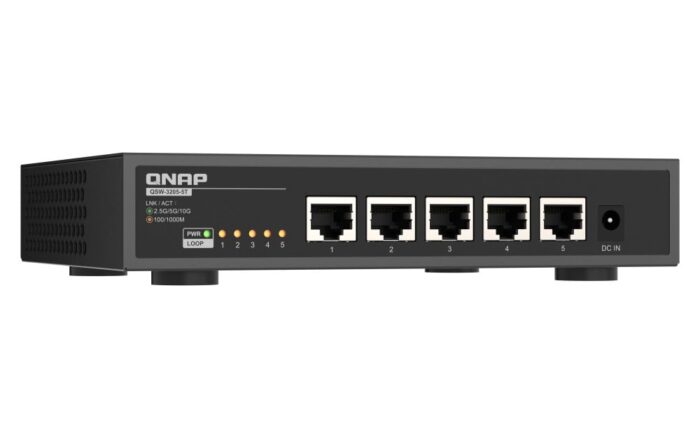

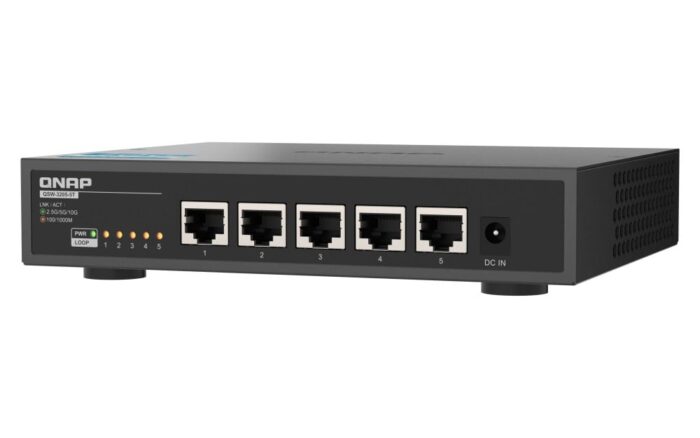

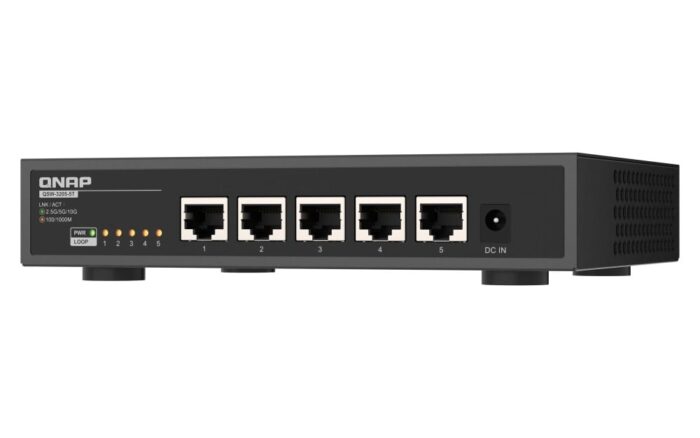

The QNAP QSW-3205-5T is an unmanaged switch designed for efficient and high-speed networking. It features 5 basic switching RJ-45 Ethernet ports, each supporting 10G Ethernet (100/1000/10000) connections. The switch boasts a MAC address table with a capacity of 16,000 entries and a substantial switching capacity of 100 Gbit/s. It adheres to several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, and IEEE 802.3x. For power, it uses a DC-in jack connector. The switch is designed with a desktop form factor, making it a convenient choice for various setups.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
Yes
show more

Data transmission

Switching capacity
Switching capacity
100 Gbit/s
show more


Throughput
50 Gbit/s
show more


MAC address table
MAC address table
16000 entries
show more

Security

Loop protection
Yes
show more

Design

Form factor
Form factor
Desktop
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


Input current
12 A
show more


Input voltage
Input voltage
3 V
show more


Power consumption (max)
Power consumption (max)
36 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
15 – 95%
show more

Weight & dimensions

Width
Width
210 mm
show more


Depth
Depth
160 mm
show more


Height
Height
44 mm
show more


Weight
Weight
960 g
show more

Packaging content

Manual
Yes
show more

Packaging data

Package width
Package width
305 mm
show more


Package depth
Package depth
153 mm
show more


Package height
Package height
56 mm
show more


Package weight
Package weight
1.2 kg
show more

Certificates

Certification
CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
show more
