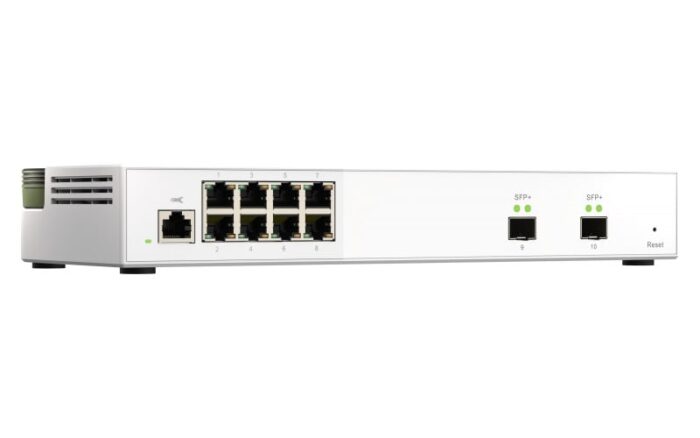

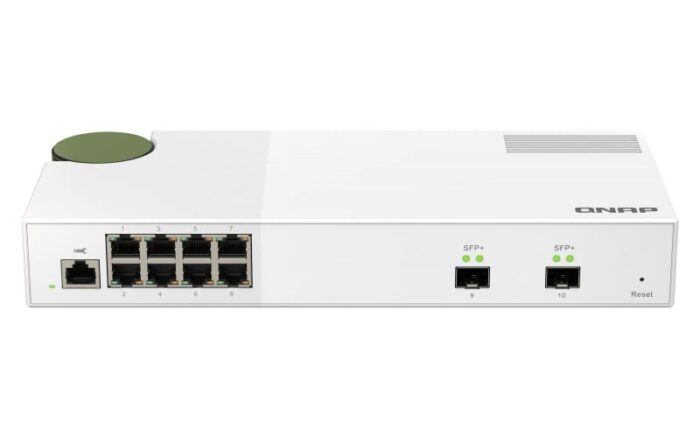

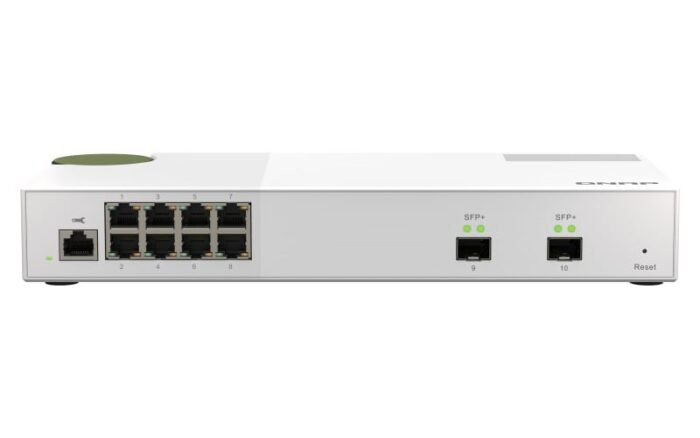

QNAP QSW-M2108-2S Network Switch Managed L2 2.5G Ethernet (100/1000/2500) Grey

The QNAP QSW-M2108-2S is a managed switch designed to operate at Layer 2. It is equipped with eight basic switching RJ-45 Ethernet ports, each capable of handling 2.5G Ethernet speeds (100/1000/2500). It includes a console port with RJ-45 connectivity and supports full duplex communication. The switch features a MAC address table with a capacity for 16,000 entries and offers a switching capacity of 80 Gbit/s. It adheres to several networking standards including IEEE 802.1Q, 802.1ab, 802.1p, 802.1w, 802.3, 802.3ab, and 802.3ad, among others. The device operates with a DC input voltage of 12 V.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
show more


2.5G Ethernet (copper) ports quantity
8
show more


SFP+ module slots quantity
2
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Copper ethernet cabling technology
100BASE-T, 1000BASE-T
show more


Full duplex
Full duplex
Yes
show more


Auto-negotiation
Yes
show more


Flow control support
Yes
show more


Spanning tree protocol
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Tagged VLAN
show more

Optical fiber

Fiber ethernet cabling technology
1000BASE‑LX, 1000BASE‑SX
show more

Data transmission

Switching capacity
Switching capacity
80 Gbit/s
show more


Throughput
40 Gbit/s
show more


MAC address table
MAC address table
16000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Security

DHCP features
DHCP client
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Grey
show more


Reset button
Yes
show more


LED indicators
Activity, Link, Power, Speed, Status
show more


Number of fans
Number of fans
1 fan(s)
show more


Electromagnetic compatibility
Electromagnetic compatibility
CLASS A
show more

Performance

Firmware upgradeable
Yes
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


DC input voltage
12 V
show more


Power consumption (max)
Power consumption (max)
23 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
290 mm
show more


Depth
Depth
127 mm
show more


Height
Height
42.5 mm
show more


Weight
Weight
1.12 kg
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Packaging data

Package weight
Package weight
1.52 kg
show more

Certificates

Certification
CE, FCC, VCCI, BSMI
show more

Logistics data

Harmonized System (HS) code
85176990
show more
