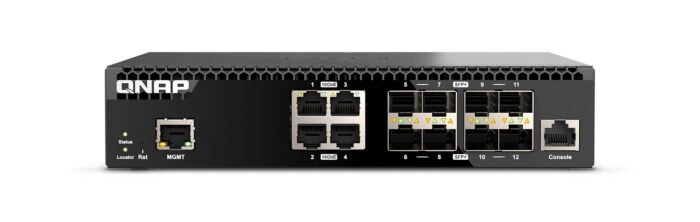

QNAP QSW-M3212R-8S4T Network Switch Unmanaged 10Gb Ethernet (100/1000/2500/5000/10000), Black, 12-Port

The QNAP QSW-M3212R-8S4T is a managed switch designed for advanced networking needs. It features 12 basic switching RJ-45 Ethernet ports that support 10G Ethernet speeds (100/1000/10000), offering high-speed connectivity for your network. The switch includes an RJ-45 console port for easy management and configuration. With a MAC address table accommodating up to 16,000 entries, this switch ensures efficient data handling and traffic management. It boasts a robust switching capacity of 240 Gbit/s, making it well-suited for demanding environments. The QSW-M3212R-8S4T supports a range of networking standards, including IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3ad, ensuring compatibility with various network devices and protocols. Designed for rack mounting, it comes in a compact 1U form factor, making it ideal for efficient space utilization in server rooms and data centers.

Management features

Switch type
Switch type
Managed
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
12
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


SFP+ module slots quantity
8
show more


Number of management ports
1 pc(s)
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more

Data transmission

Switching capacity
Switching capacity
240 Gbit/s
show more


Throughput
120 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Number of fans
Number of fans
2 fan(s)
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (max)
Power consumption (max)
80 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Warranty period
2 year(s)
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
207 mm
show more


Depth
Depth
199.5 mm
show more


Height
Height
43.3 mm
show more


Weight
Weight
1.48 kg
show more

Packaging data

Package weight
Package weight
2.19 kg
show more

Certificates

Certification
CE, FCC, VCCI, BSMI
show more
