QNAP QSW-M3216R-8S8T Network Switch Unmanaged 10Gb Ethernet (100/1000/2500/5000/1000), Black, 16-Port

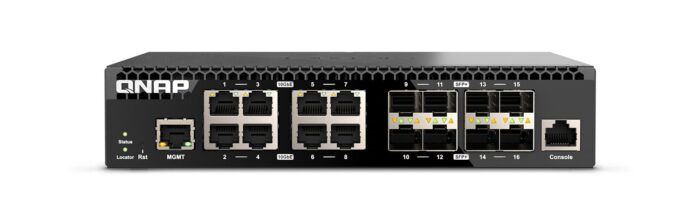

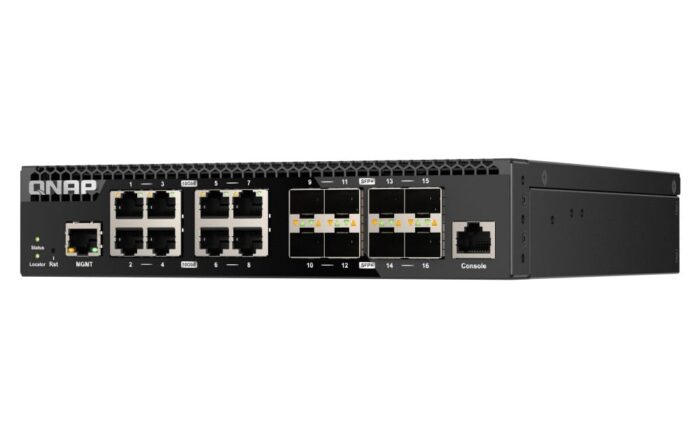

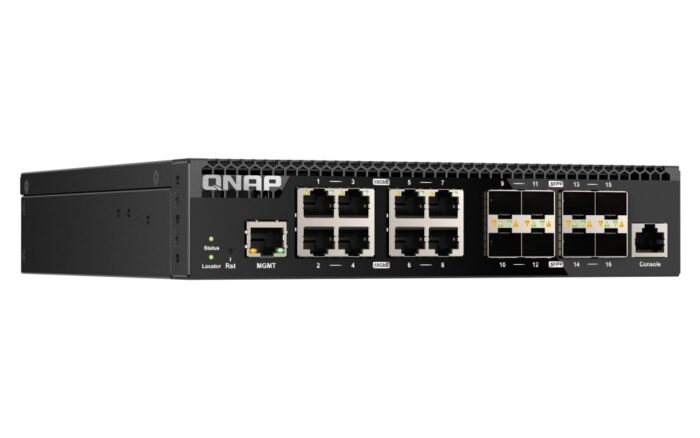

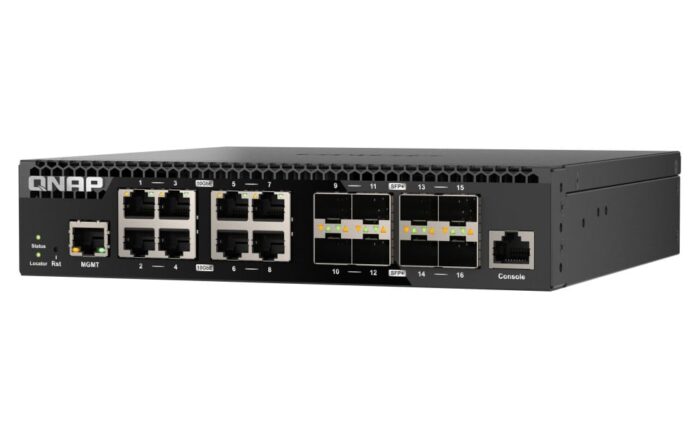

The QNAP QSW-M3216R-8S8T is a managed switch designed for L2/L3 network layers. It features 8 basic switching RJ-45 Ethernet ports, capable of 10G Ethernet (100/1000/10000) connectivity. Additionally, the switch includes 8 installed SFP+ modules for enhanced networking options. It is equipped with a console port using an RJ-45 interface. This switch can handle up to 16,000 MAC address entries and boasts a high switching capacity of 320 Gbit/s. It supports various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z. Designed for efficiency in data centers or enterprise environments, the QSW-M3216R-8S8T is rack-mountable with a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L3
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


Installed SFP+ modules quantity
Installed SFP+ modules quantity
8
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
320 Gbit/s
show more


Throughput
160 Gbit/s
show more


MAC address table
MAC address table
16000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Security

Access Control List (ACL)
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (max)
Power consumption (max)
48.632 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
207 mm
show more


Depth
Depth
199.5 mm
show more


Height
Height
43.3 mm
show more


Weight
Weight
1.52 kg
show more
