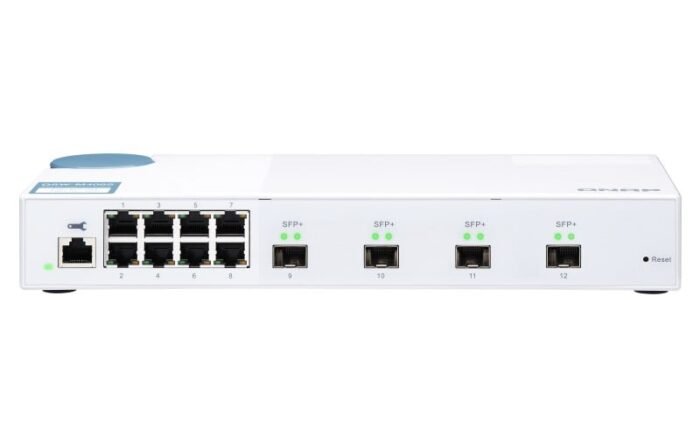

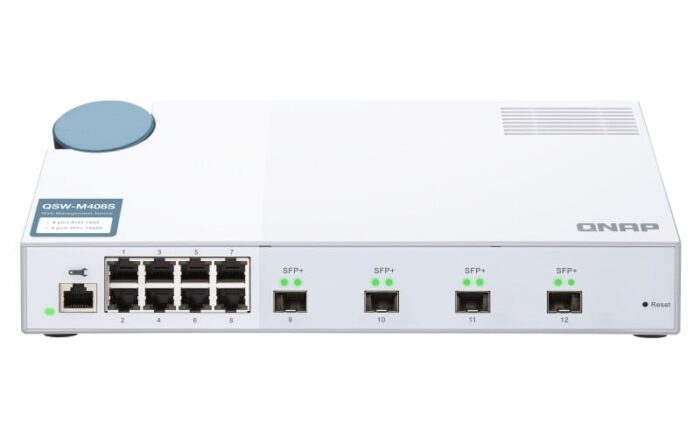

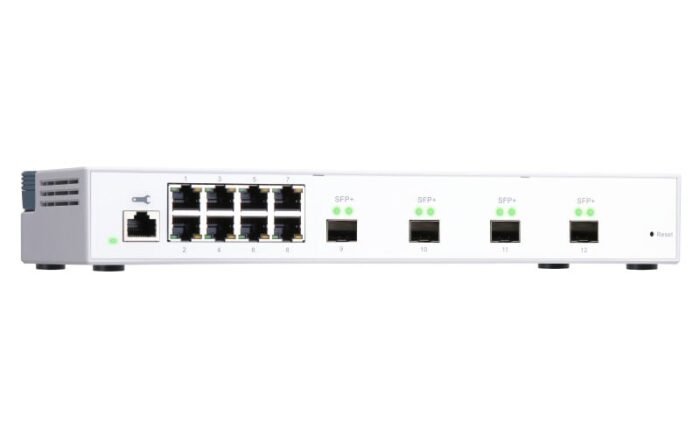

QNAP QSW-M408S Network Switch Managed L2 Gigabit Ethernet (10/100/1000) White

The QNAP QSW-M408S is a managed network switch designed for effective and efficient data management. It operates at Layer 2 and features eight RJ-45 Ethernet ports that support Gigabit Ethernet, enabling data transfer rates of 10/100/1000 Mbps. The switch includes an RJ-45 console port for easy management and operates in full duplex mode, which allows simultaneous two-way data transmission. It has a MAC address table capable of holding up to 16,000 entries and offers a substantial switching capacity of 96 Gbit/s. The QSW-M408S complies with various networking standards, including IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3ad, ensuring compatibility with a wide range of network environments and protocols.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
8
show more


SFP+ module slots quantity
4
show more


Fiber ports quantity
Fiber ports quantity
4
show more


Fiber optic connector
Fiber optic connector
SFP+
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
show more


Cable types supported
Cat5, Cat5e, Cat6
show more


Full duplex
Full duplex
Yes
show more


Flow control support
Yes
show more


Auto-negotiation
Yes
show more


Spanning tree protocol
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Port-based VLAN, Private VLAN
show more

Data transmission

Switching capacity
Switching capacity
96 Gbit/s
show more


Throughput
48 Gbit/s
show more


MAC address table
MAC address table
16000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Security

DHCP features
DHCP client
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
White
show more


Reset button
Yes
show more


LED indicators
Activity, Link, Power, Speed, Status
show more


Number of fans
Number of fans
0 fan(s)
show more


Electromagnetic compatibility
Electromagnetic compatibility
CLASS A
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
12.17 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
290 mm
show more


Depth
Depth
127 mm
show more


Height
Height
42.5 mm
show more


Weight
Weight
1.15 kg
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Packaging data

Package weight
Package weight
1.56 kg
show more

Certificates

Certification
CE, FCC, VCCI, BSMI
show more

Logistics data

Harmonized System (HS) code
85176990
show more
