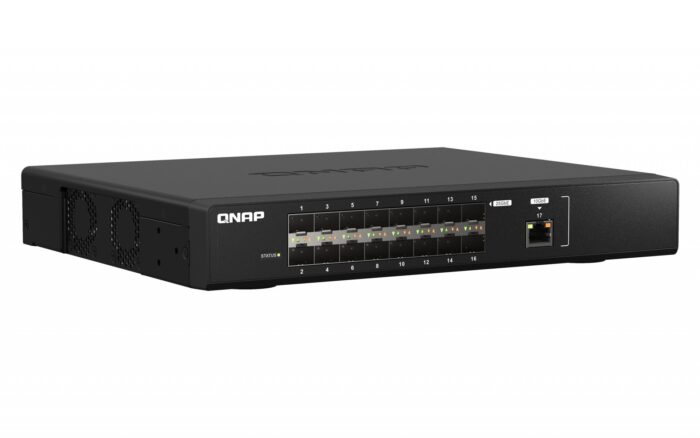

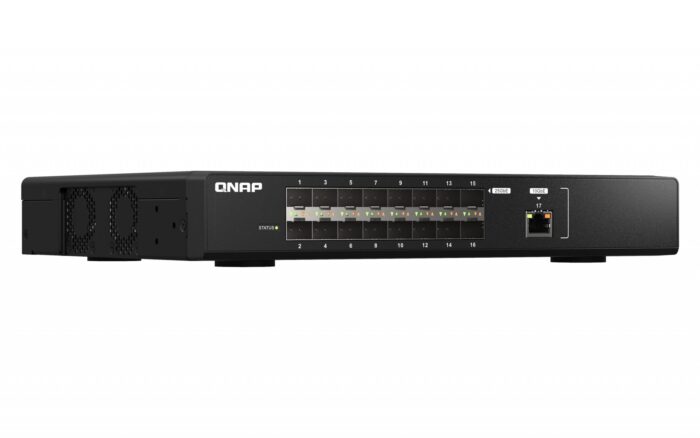

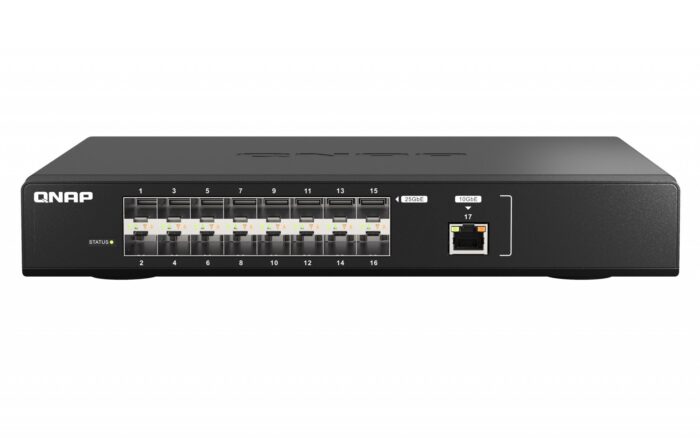

QNAP QSW-M5216-1T Network Switch Managed L2 10G Ethernet (100/1000/10000) Black

The QNAP QSW-M5216-1T is a managed switch designed for efficient network management and operations. It operates at layer 2 of the OSI model. The switch includes an RS-232 console port for direct management access. It is equipped with a MAC address table that can accommodate up to 32,000 entries, ensuring robust network connectivity. With a switching capacity of 820 Gbit/s, the switch supports high-performance data transfer. It adheres to several networking standards for seamless integration, including IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3ad. Additionally, the device is suitable for rack mounting, allowing for convenient deployment in server rooms or data centers.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Fiber ports quantity
Fiber ports quantity
16
show more


Fiber optic connector
Fiber optic connector
SFP28
show more


Console port
RS-232
show more


SFP28 ports quantity
16
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Auto-negotiation
Yes
show more

Data transmission

Switching capacity
Switching capacity
820 Gbit/s
show more


Throughput
410 Gbit/s
show more


MAC address table
MAC address table
32000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Security

DHCP features
DHCP client
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black
show more


Reset button
Yes
show more


LED indicators
Activity, Link, Power, Speed, Status
show more


Electromagnetic compatibility
Electromagnetic compatibility
CLASS A
show more

Performance

Firmware upgradeable
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
80 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
285 mm
show more


Depth
Depth
237.7 mm
show more


Height
Height
43.5 mm
show more


Weight
Weight
2.15 kg
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more


Rack mount kit
Yes
show more

Packaging data

Package weight
Package weight
2.85 kg
show more

Certificates

Certification
CE, FCC, VCCI, BSMI
show more

Logistics data

Harmonized System (HS) code
85176990
show more
