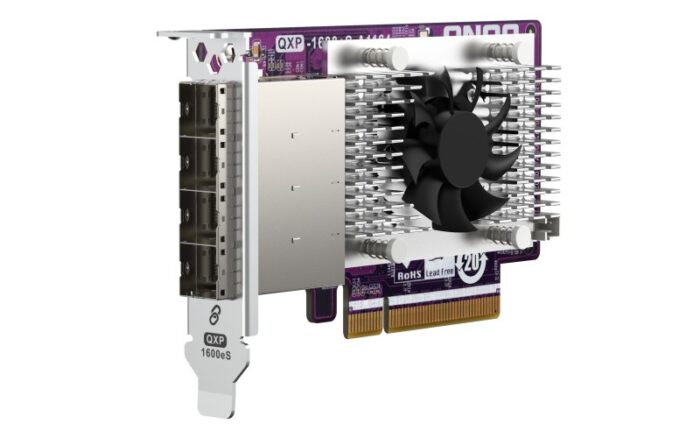

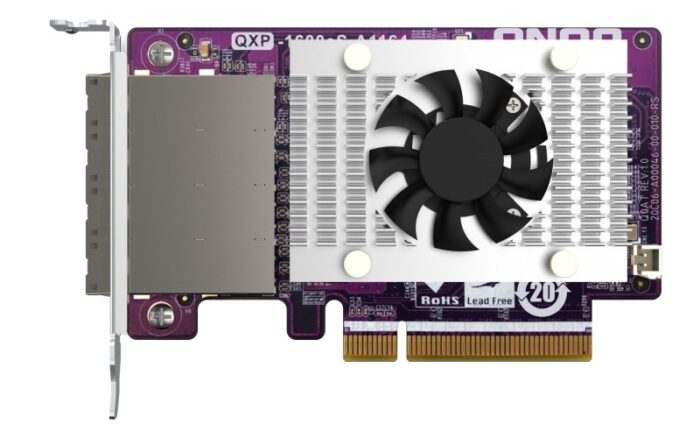

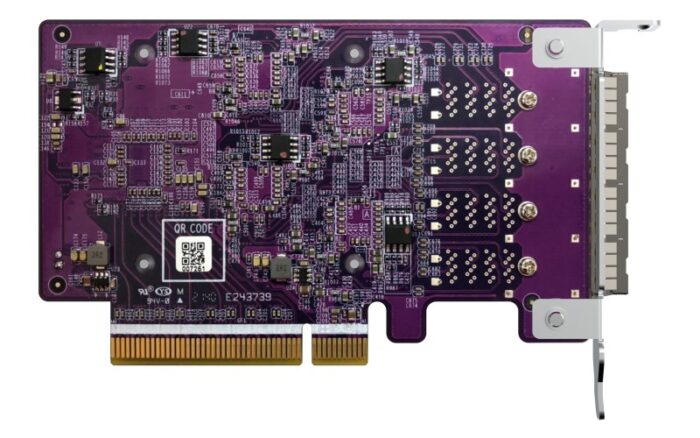

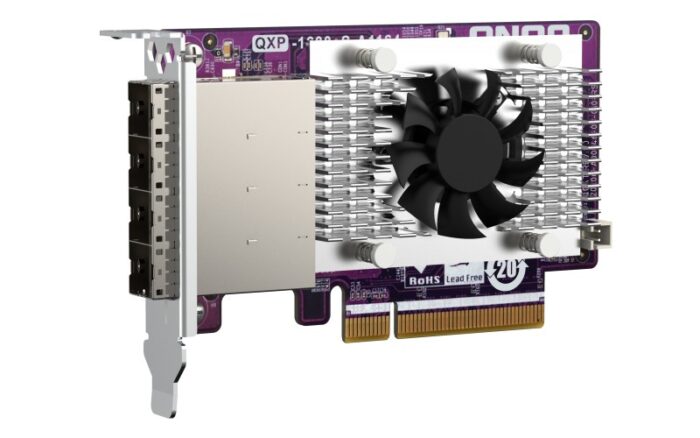

QNAP QXP-1600eS-A1164 Interface Cards/Adapter Internal Mini-SAS

The QNAP QXP-1600eS-A1164 is an expansion card with a PCIe host interface and a Mini-SAS output interface. It adheres to the PCIe 3.0 standard. This product supports a variety of operating systems, including Windows 8, Windows 8.1, Windows 10, and Windows 11. For Linux users, it is compatible with Kernel versions 3.12, 3.17, 3.3, 4.6.4, and 5.8. For server environments, it supports Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, and Windows Server 2016 x64. In terms of dimensions, the expansion card measures 117.7 mm in width, 68.9 mm in depth, and 18.3 mm in height.

Ports & interfaces

Host interface
Host interface
PCIe
show more


Output interface
Output interface
Mini-SAS
show more


Expansion card standard
PCIe 3.0
show more


External mini-SAS ports
4
show more


Internal SATA ports quantity
4
show more

Design

Internal
Internal
Yes
show more

System requirements

Windows operating systems supported
Windows operating systems supported
Windows 10, Windows 11, Windows 8, Windows 8.1
show more


Linux operating systems supported
Linux operating systems supported
Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel 5.8
show more


Server operating systems supported
Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019
show more

Weight & dimensions

Width
Width
117.7 mm
show more


Depth
Depth
68.9 mm
show more


Height
Height
18.3 mm
show more

Packaging data

Quantity
Quantity
1
show more


Mounting brackets included
Yes
show more

Logistics data

Harmonized System (HS) code
84733020
