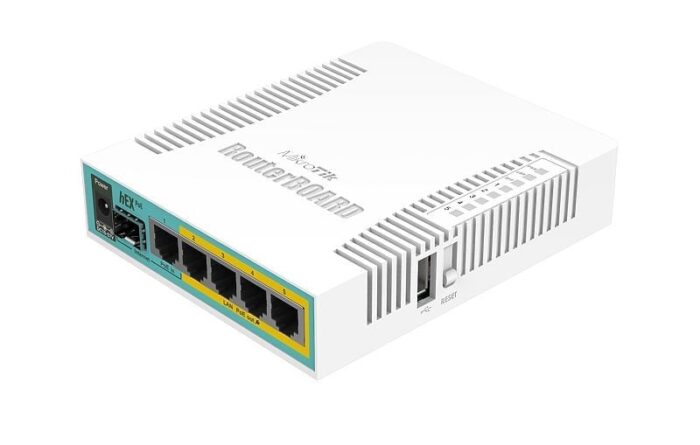

Mikrotik RB960PGS hEX PoE Wired Router White (RB960PGS)

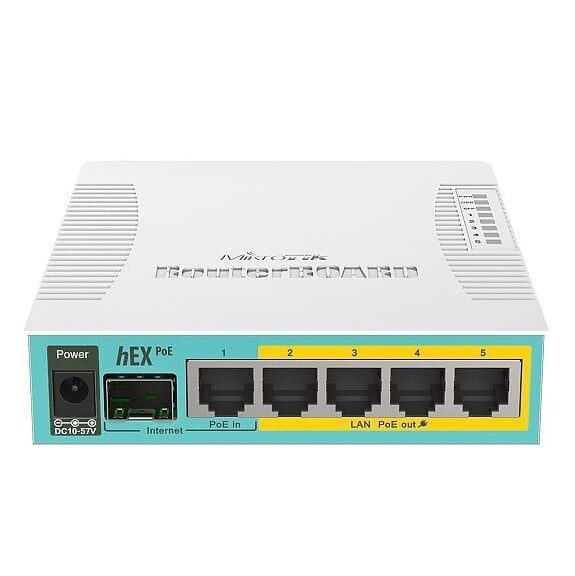

The Mikrotik RB960PGS hEX PoE is a white, wired router designed for environments where wireless connectivity is unnecessary. It features five Gigabit Ethernet ports and is equipped with both a USB 2.0 port and an SFP port for optical fiber connections. Ports 2 through 5 are capable of powering other PoE-enabled devices using the same voltage supplied to the unit itself.

This router is compact, budget-friendly, and user-friendly, while boasting a potent 800 MHz CPU that supports all advanced configurations provided by RouterOS. This setup minimizes the need for multiple power adapters and cables. It supports a maximum current of 1A per port, and the Ethernet ports are shielded for protection.

The device is compatible with passive PoE input and can output passive or 802.3af/at PoE. Ports 2 through 5 can power PoE-enabled devices using the same voltage as the unit. It can also power devices that support at/af mode B (4,5+)(7,8-) if a 48-57 input voltage is used.

Product Highlights:

– Offers 5x Gigabit Ethernet with PoE output for four ports
– Includes an SFP port, USB, 800MHz CPU, and 128MB RAM
– Runs on RouterOS L4

Key Specifications:

– Networking Standard: IEEE 802.3at
– Ethernet LAN Data Rates: 10, 100, 1000 Mbit/s
– Flash Memory: 16 MB
– Internal Memory: 128 MB
– Ethernet LAN (RJ-45) Ports: 5
– USB Ports: 1

Network

Networking standards
Networking standards
IEEE 802.3at
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more

Management features

Web-based management
Web-based management
Yes
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
5
show more


USB version
USB version
2.0
show more


USB ports quantity
1
show more


DC-in jack
DC-in jack
Yes
show more

Protocols

DHCP server
DHCP server
Yes
show more


DHCP client
DHCP client
Yes
show more

Security

Firewall
Yes
show more

Packaging content

AC adapter included
Yes
show more

Features

Built-in processor
Built-in processor
Yes
show more


Processor frequency
Processor frequency
800 MHz
show more


Processor cores
Processor cores
1
show more


Flash memory
16 MB
show more


Internal memory
Internal memory
128 MB
show more

Design

Product colour
Product colour
White
show more

Power

Power supply
Power supply
9 W
show more


Power source type
Power source type
DC
show more


Output current
1 A
show more

Weight & dimensions

Width
Width
114 mm
show more


Depth
Depth
137 mm
show more


Height
Height
29 mm
show more

Logistics data

Harmonized System (HS) code
85176990
