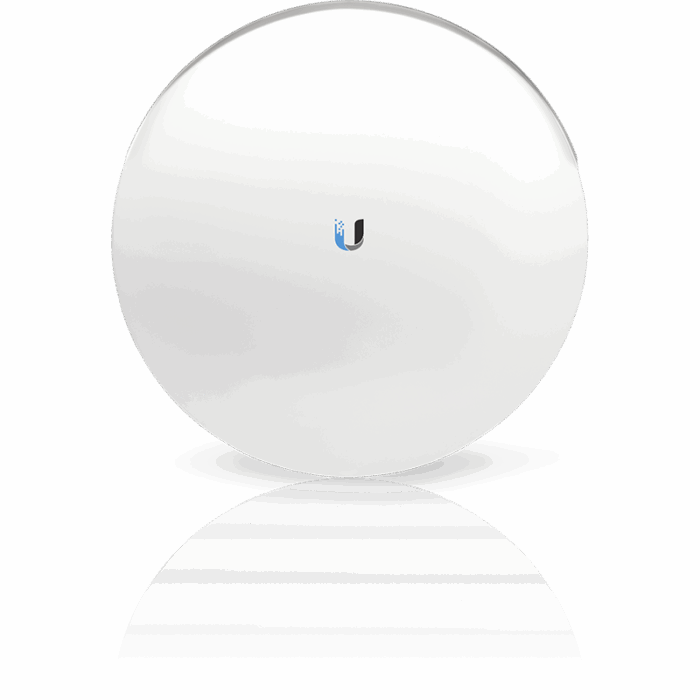

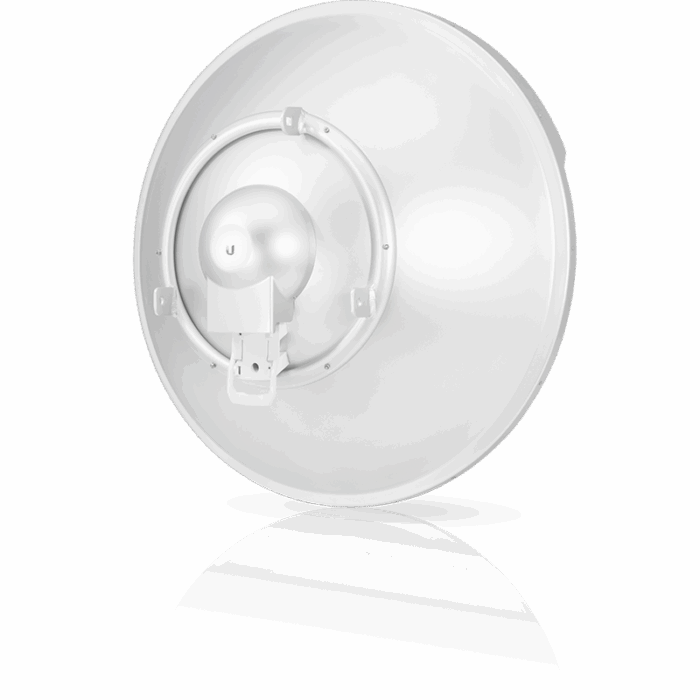

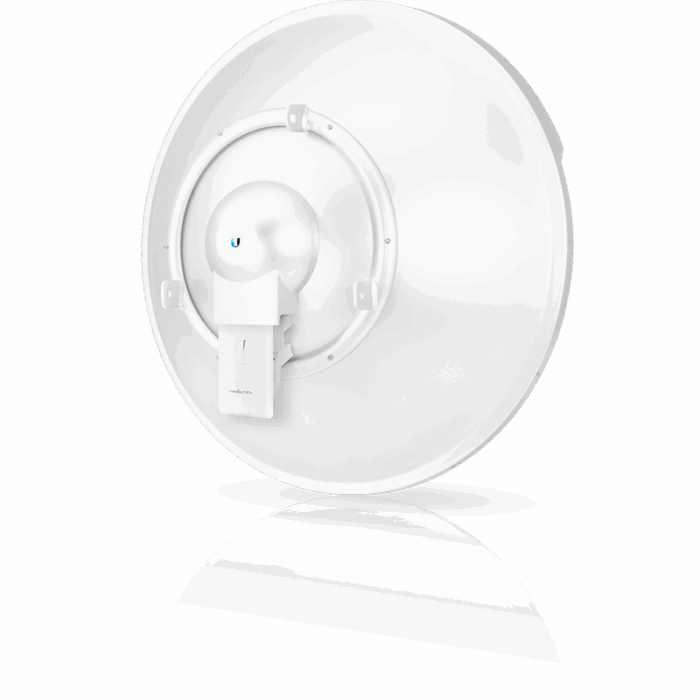

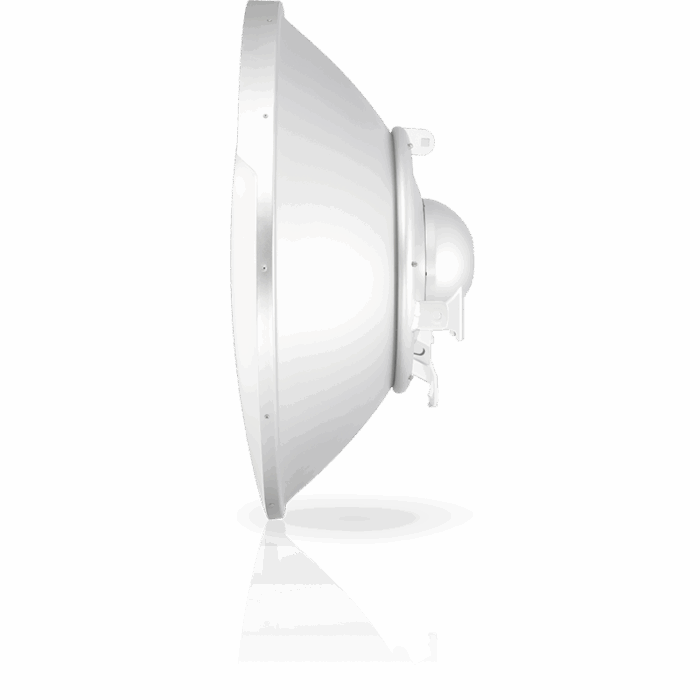

The Ubiquiti RD-5G31-AC antenna is a compact, high-capacity, and reliable device designed for professional use. This parabolic antenna is intended to work with RocketM5/Rocket5ac devices, which are sold separately. It operates within the 5.1 – 5.8 GHz frequency band and offers a maximum gain of 31 dBi, complying with the 802.11ac standard.
The antenna's compact size is a significant advantage, offering an increased signal-to-noise ratio and reducing the likelihood of interference from nearby devices. Its lightweight and small dimensions make it an ideal choice for users who need a comfortable and compact solution.
Constructed from durable components and featuring innovative technologies, the antenna offers the highest possible quality and durability. It has a maximum gain of 31 dBi and is commonly used to create long-range Point-to-Point connections.
Key features of the Ubiquiti RD-5G31-AC include operation in the 5 GHz band, 31 dBi gain, dual-linear polarization, and dimensions of 748 x 748 x 349 mm. It boasts a compact and waterproof design.
Installation of the antenna is straightforward and does not require specialized tools, making deployment both quick and easy.
For more detailed information, refer to the manufacturer's documentation and manual.
| RD-5G31-AC | |
|---|---|
| Dimensions | 748 x 748 x 349 mm (29.45 x 29.45 x 13.74") |
| Weight | With Mount: 7.6 kg (16.76 lb) |
| Frequency Range | 5.1 – 5.8 GHz |
| Gain | 31 dBi |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,028 N @ 200 km/h (231 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included |
