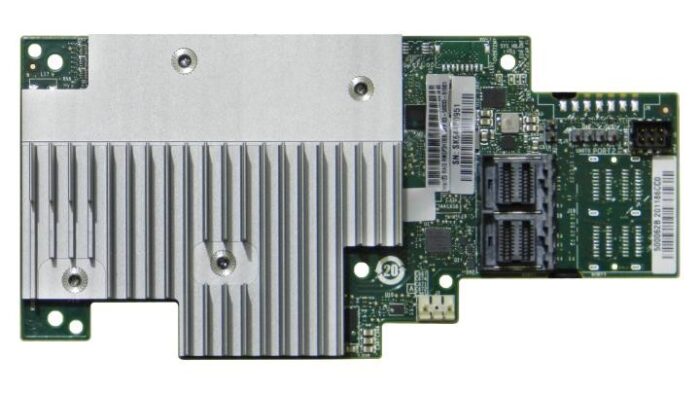

Intel RAID Controller RMSP3HD080E – 8 Channel SATA 6Gb/s / SAS 12G

The Intel RMSP3HD080E is a RAID module featuring supported storage drive interfaces including PCI Express, SAS, and Serial ATA, with a host interface of PCI Express x8. It supports RAID levels 0, 1, 10, 5, and 50, with a data transfer rate of 12 Gbit/s. Designed as a Mezzanine Module, it utilizes the LSISAS3408 processor model. This module is compatible with operating systems such as Windows, Linux, and VMWare. The packaging includes one Intel RAID Module, along with four standoffs and four standoff locking pins.

Ports & interfaces

Supported storage drive interfaces
PCI Express, SAS, Serial ATA
show more


Host interface
Host interface
PCI Express x8
show more


PCI Express slots version
3.0
show more


Internal mini-SAS ports
2
show more

Performance

RAID levels
RAID levels
0, 1, 10, 5, 50
show more


Data transfer rate
Data transfer rate
12 Gbit/s
show more


Form factor
Form factor
Mezzanine Module
show more


Chipset
Chipset
SAS3408
show more


JBOD function
Yes
show more


Number of devices supported
Number of devices supported
63
show more


S.M.A.R.T. support
Yes
show more


Export Control Classification Number (ECCN)
4A994B
show more


Commodity Classification Automated Tracking System (CCATS)
NA
show more


Compatible products
Compatible products
S2600WF0, S2600WFT, R1208WFTYS, R1304WF0YS, R1304WFTYS, R2208WF0ZS, R2208WFTZS, R2224WFTZS, R2308WFTZS, R2312WF0NP, R2312WFTZS
show more

Processor

Built-in processor
Built-in processor
Yes
show more


Processor model
Processor model
LSISAS3408
show more

Technical details

Expected discontinuance date
Q2'23
show more


Extended warranty available for purchase (select countries)
Yes
show more


Last order date
2019-08-03 05:00:37
show more


Target market
Entry
show more


Last change
63903513
show more


Status
Launched
show more


PCI Express host interface
PCIe x8 Gen3
show more


Product type
Product type
RAID
show more


RAID connector orientation
Vertical
show more


RAID keying
SIOM
show more


Launch date
Q3'17
show more

System requirements

Windows operating systems supported
Windows operating systems supported
Yes
show more


Linux operating systems supported
Linux operating systems supported
Yes
show more


Compatible operating systems
Compatible operating systems
Windows, Linux, VMWare
show more

Weight & dimensions

Packaging content
(1) Intel RAID Module, (4) standoffs, and (4) standoff locking pins
show more

Logistics data

Harmonized System (HS) code
8471801000
show more

Other features

RAID ARK ID
99490
show more


Market segment
Server
show more


Supported devices
PCIe/SAS/SATA
show more


Internal ports
8
show more
