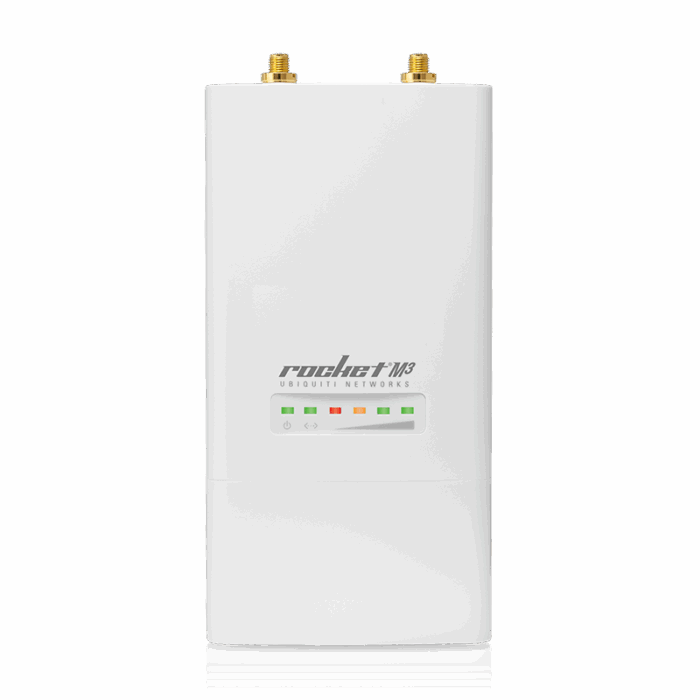

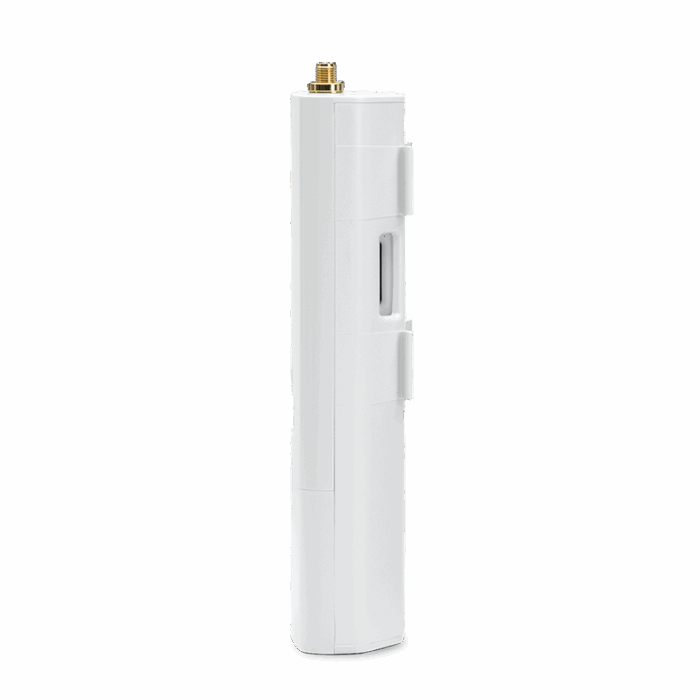

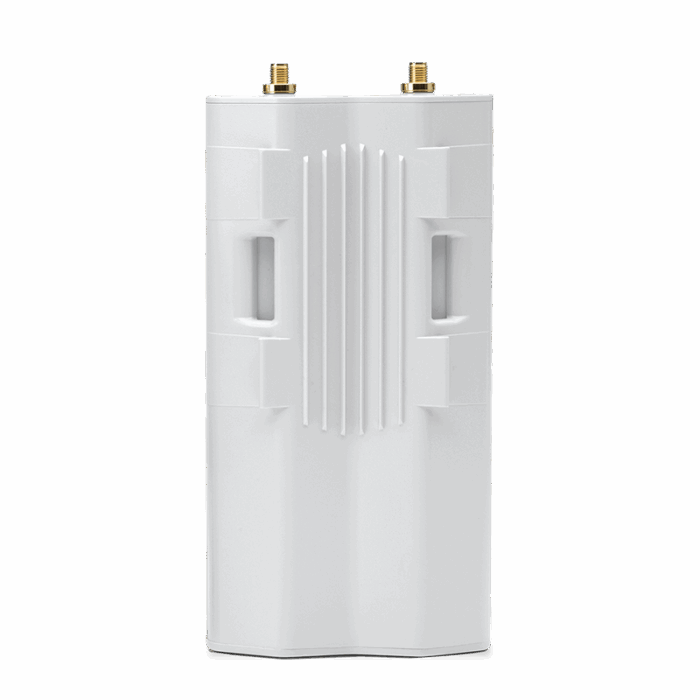

The product operates within the 3370 – 3730 MHz frequency range, offering speeds of over 150 Mbps. It includes a 10/100 Ethernet port, provides 25 dBm power, and features 64 MB SDRAM and 8 MB Flash memory. Weighing 500 grams, the Rocket™M radio device boasts enhanced radio performance and a customizable industrial design, making it ideal for deployment in Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) applications.
The Rocket™ radios integrate effortlessly with airMAX® Sector, RocketDish™, Omni, and Yagi antennas for both PtP and PtMP connections. Each airMAX antenna is equipped with a built-in Rocket mount, eliminating the need for tools during installation.
Utilizing Ubiquiti's airMAX® technology, which has been successful in millions of global deployments, the product delivers exceptional performance in outdoor environments. The TDMA airMAX protocol offers an unparalleled level of scalability, high throughput, and low latency within unlicensed, multipoint networks.
The Rocket™M is designed to withstand tough environments and is available in various frequency models, supporting multiple channel bandwidths based on the specific model and local regulations.
The airView Spectrum Analyzer is a valuable tool that allows operators to identify noise patterns and assess frequency usage and activity levels on-site. This enables the setup of new access points on less congested channels, optimizing wireless performance. For more information, please visit the producer's website.
| Mechanical | |
|---|---|
| Dimensions | 160 x 80 x 30 mm (6.3 x 3.2 x 1.2") |
| Weight | 500 g (1.1 lb) |
| Enclosure material | UV-stabilized plastic |
| Hardware | |

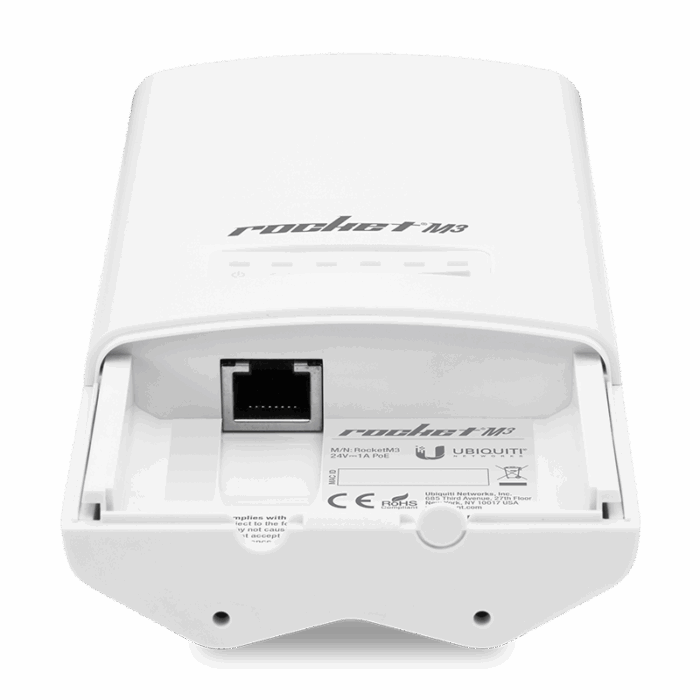

| Networking interface | (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8) |
| Power supply | 24V, 1A PoE adapter (Included) |
| Max. power consumption | 6.5W |
| Supported voltage range | 20–27V DC |
| RF connectors | (2) RP-SMA (waterproof) |
| Operating frequency | 3400 – 3730 MHz* *RocketM3 not supported in the USA. |
| Shock and vibration | ETSI300-019-1.4 |
| Ambient operating temperature | -30 to 75°C (-22 to 167°F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Operating mode | Access Point, station |
| Software management | Bluetooth management for easy setup over UISP Mobile app WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| Security | WPA2 AES only |
| Services | Services web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing |
| Utilities | Antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test |
| QoS | Supports packet level classification WMM and user customer level: High/Medium/Low |
