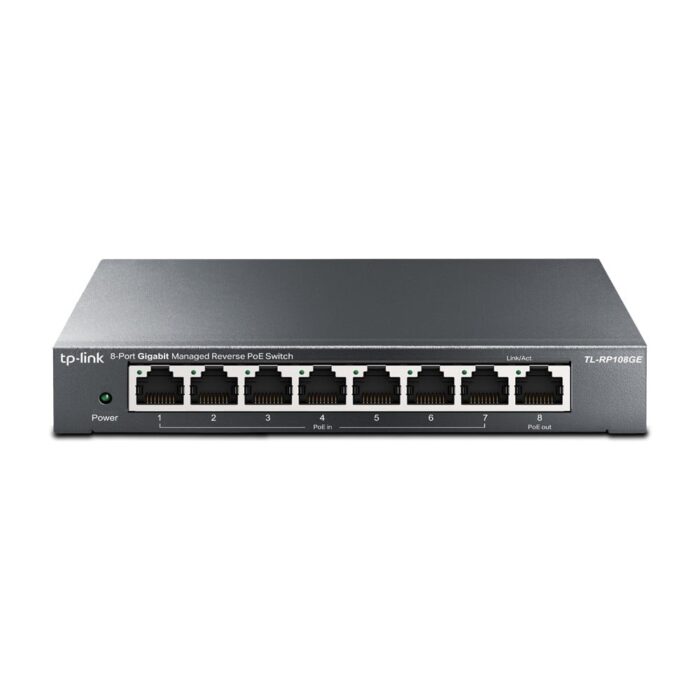

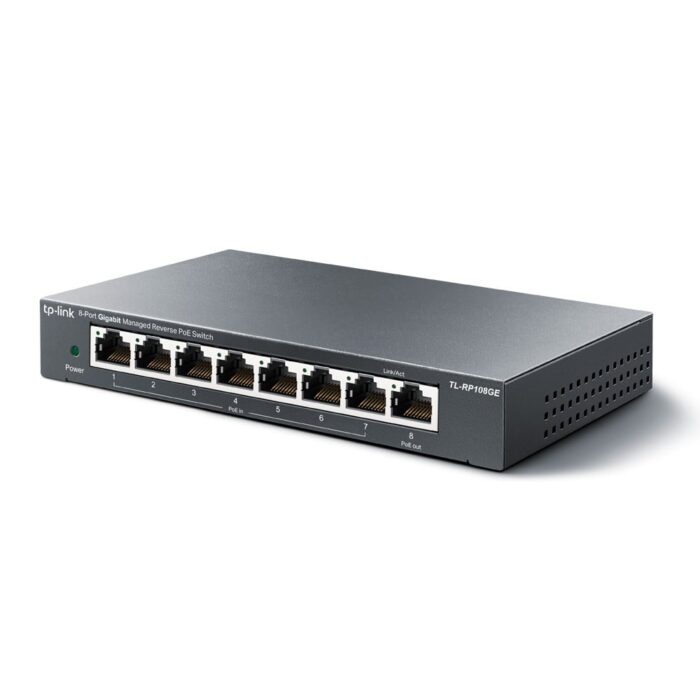

TP-Link RP108GE TL-RP108GE 8-Port Gigabit Managed Reverse PoE Switch

The TP-Link 8-Port Gigabit Managed Reverse PoE Switch (RP108GE) is designed for superior network management and scalability. As a Layer 2 managed switch, it offers advanced control features to optimize data traffic and enhance network security. Featuring eight Gigabit Ethernet ports that support speeds of 10/100/1000 Mbps, this switch ensures high-speed connectivity, making it ideal for efficiently handling large data transfers.

With full duplex capability, the RP108GE enables simultaneous data transmission and reception, significantly boosting network throughput and minimizing traffic bottlenecks. Its MAC address table supports up to 4000 entries, and its robust switching capacity of 16 Gbit/s ensures smooth information processing even during peak load conditions. The switch complies with various networking standards, including IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, and IEEE 802.3x, enhancing its compatibility with diverse network setups.

A standout feature of the TP-Link RP108GE is its Power over Ethernet (PoE) capability, which simplifies the deployment of network devices such as IP cameras and wireless access points by removing the need for separate power supplies. This innovative technology not only streamlines installation but also improves the overall efficiency of your network infrastructure. Combining performance, versatility, and advanced features, the TP-Link 8-Port Gigabit Managed Reverse PoE Switch is an excellent choice for any network environment.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Rate limiting
Yes
show more


Broadcast storm control
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Port-based VLAN, Tagged VLAN
show more


Number of VLANs
4000
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


Forwarding rate
11.9 Mpps
show more


MAC address table
MAC address table
4000 entries
show more


Store-and-forward
Yes
show more


Static route
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
16000
show more

Security

IGMP snooping
Yes
show more


Loop protection
Yes
show more

Design

Product colour
Product colour
Black
show more


Reset button
Yes
show more


LED indicators
Yes
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
No
show more


Input current
1 A
show more


Input voltage
Input voltage
5 V
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) type supported
Passive PoE
show more


Power over Ethernet (PoE) ports quantity
8
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
158 mm
show more


Depth
Depth
99.1 mm
show more


Height
Height
25 mm
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
