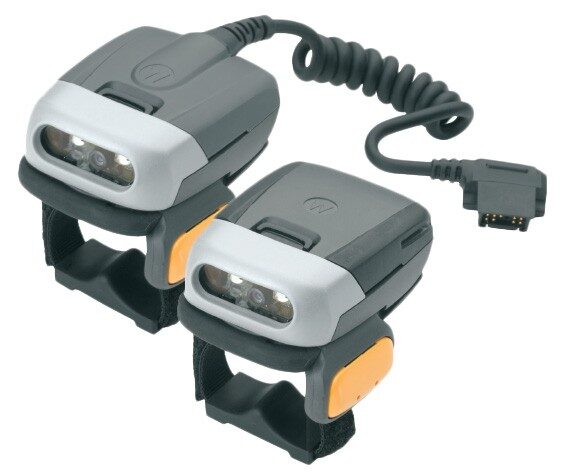

Zebra RS507X 1D/2D Laser Black, Grey

The Zebra RS507X is a versatile scanner capable of handling both 1D and 2D barcode types. It utilizes laser sensor technology, supporting linear (1D) barcodes such as Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI, PDF417, and U.P.C. This device features wireless connectivity and standard Bluetooth interfaces, allowing for simple integration with various systems. The scanner is available in black and grey and is designed with an IP54 international protection rating, indicating a solid level of protection against dust and water. It operates with a processor frequency of 624 MHz. The Zebra RS507X is compact and lightweight, weighing 140.8 grams, with dimensions of 53 mm in width and 74 mm in depth. For safety compliance and assurance, the scanner is certified by UL, CSA, IEC, EN, and CDRH standards.

Scanning

Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Code 39, MaxiCode, MicroPDF417, PDF417, TLC-39
show more


Sensor type
Sensor type
Laser
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI, PDF417, U.P.C.
show more


Optical sensor resolution (W x H)
752 x 480 pixels
show more


Wavelength
Wavelength
655 nm
show more


Tilt reading angle
-35 – 35°
show more


Pitch reading angle
-60 – 60°
show more


Yaw reading angle
-50 – 50°
show more


Decoding standards
Codabar, Code 39, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Code 11, Code 32 (PARAF), Code 93, MSI, RSS-14, 2 of 5, 2 of 5 IATA, 2 of 5 Industrial, Trioptic, UPC-E1, 4-CB, Aztec, MicroPDF417, PDF417, MaxiCode, Data Matrix, KIX Post, Planet Code, Postnet, QR Code, EAN/UCC, TLC39
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wireless
show more


Standard interfaces
Standard interfaces
Bluetooth
show more


Bluetooth
Bluetooth
Yes
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP54
show more


LED indicators
Yes
show more


Buzzer
Yes
show more


Processor frequency
Processor frequency
624 MHz
show more


Product colour
Product colour
Black, Grey
show more

Weight & dimensions

Width
Width
53 mm
show more


Depth
Depth
74 mm
show more


Height
Height
33 mm
show more


Weight
Weight
140.8 g
show more

Packaging data

External power adapter
Yes
show more

Operational conditions

Operating relative humidity (H-H)
5 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more

Other features

Safety
Safety
UL, CSA, IEC, EN, CDRH
show more
