SFP+ Module 10G Multi Mode 300m 850nm Compatible Module

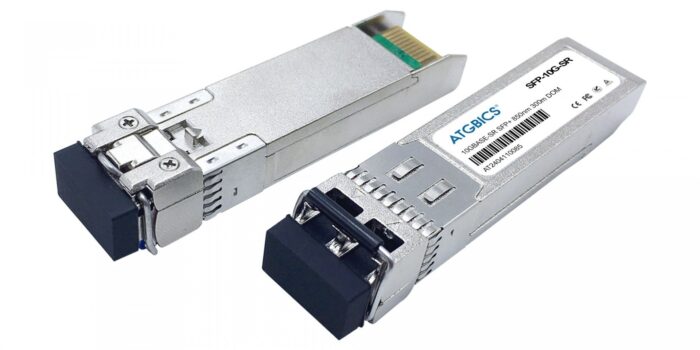

The ATGBICS S+85DLC03D is a MikroTik compatible transceiver designed for fiber optic communication. It supports SFP+ 10GBase-SR, operating with an 850nm wavelength on multimode fiber (MMF) for distances up to 300 meters, with an LC connector and diagnostic monitoring (DOM). This transceiver has a maximum data transfer rate of 10,000 Mbit/s and utilizes the SFP+ interface type. It features a sleek silver color and a durable metal housing, ensuring compatibility with MikroTik devices. The input voltage is 3.3V, with a maximum voltage of 3.5V, and it typically consumes 1W of power. It holds various compliance certifications, including TÜV mark, UKCA, UL, US FDA, REACH, FCC, RoHS, and CE. Importantly, it does not contain lead.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
10000 Mbit/s
show more


Interface type
SFP+
show more


Single-mode fiber (SMF) supported
No
show more


Multi-mode fiber (MMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC
show more


SFP transceiver standard
SW, SR
show more


Maximum transfer distance
Maximum transfer distance
300 m
show more


Wavelength
Wavelength
850 nm
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


Fiber ethernet cabling technology
10GBASE
show more


Digital Diagnostics Monitoring (DDM)
Yes
show more


Wavelength-division multiplexing (WDM)
No
show more

Features

Product colour
Product colour
Silver
show more


Housing material
Housing material
Metal
show more


Plug and Play
Plug and Play
Yes
show more


Hot-Plug support
Hot-Plug support
Yes
show more


Hot-swap
Yes
show more


Easy to install
Yes
show more


Brand compatibility
Brand compatibility
MikroTik
show more

Power

Input voltage
Input voltage
3.3 V
show more


Maximum voltage
3.5 V
show more


Power consumption (typical)
Power consumption (typical)
1 W
show more

Certificates

Compliance certificates
TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE
show more


Certification
CE, FCC, RoHS, REACH
show more

Sustainability

Doesn't contain
Lead
show more


Sustainability compliance
Yes
show more

Operational conditions

Minimum operating temperature
0 °C
show more


Maximum operating temperature
70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
13.4 mm
show more


Depth
Depth
56.5 mm
show more


Height
Height
8.5 mm
show more


Weight
Weight
20 g
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Packaging data

Package type
Package type
Box
show more

Logistics data

Country of origin
Country of origin
United Kingdom
show more
