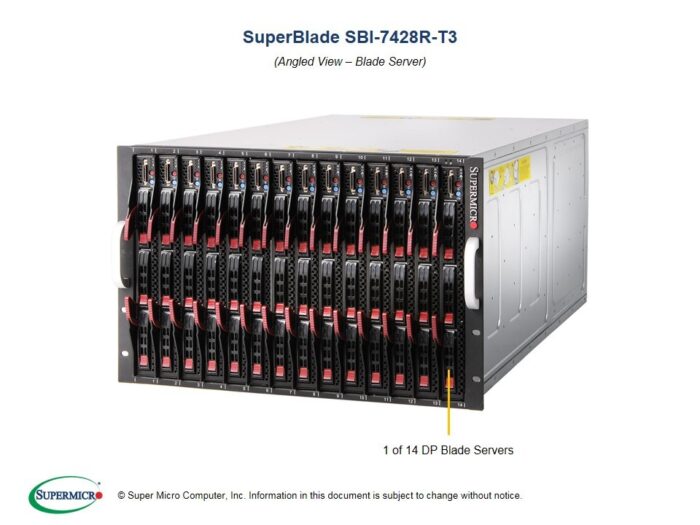

Supermicro Processor Blade SBI-7428R-T3 Intel C612 LGA 2011 (Socket R) Black

The Supermicro Processor Blade SBI-7428R-T3 is equipped with an Intel C612 motherboard chipset and features a processor socket of LGA 2011 (Socket R), supporting a system bus rate of 9.6 GT/s. The blade is compatible with DDR4-SDRAM memory types and accommodates DIMM modules with capacities of 8GB, 16GB, and 32GB, allowing for a maximum internal memory capacity of 512 GB. It supports 2.5" storage drive sizes and interfaces with Serial ATA, offering RAID levels of 0 and 1 to enhance data management and redundancy. The blade comes with an on-board graphics card model, the Aspeed AST2400, and features an Intel I350 LAN controller for network connectivity.

Processor

Built-in processor
Built-in processor
No
show more


Motherboard chipset
Motherboard chipset
Intel® C612
show more


Processor socket
Processor socket
LGA 2011 (Socket R)
show more


Number of processors supported
Number of processors supported
2
show more


System bus rate
System bus rate
9.6 GT/s
show more


Maximum cache
55 MB
show more


Compatible processor series
Compatible processor series
Intel® Xeon®
show more


Intel Xeon series
E5-2600
show more

Memory

Number of DIMM slots
Number of DIMM slots
16
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported DIMM module capacities
8GB, 16GB, 32GB
show more


Maximum internal memory
Maximum internal memory
512 GB
show more


Supported RDIMM clock speeds
1600,1866,2133 MHz
show more


Memory form factor
Memory form factor
288-pin DIMM
show more


Memory voltage
Memory voltage
1.2 V
show more


Memory bus
Memory bus
72 bit
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
3
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Number of 2.5" bays
3
show more


Storage drive sizes supported
Storage drive sizes supported
2.5"
show more


Supported storage drive interfaces
Serial ATA
show more


RAID levels
RAID levels
0, 1
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2400
show more

Network

LAN controller
Intel® I350
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more

BIOS

BIOS type
BIOS type
AMI
show more


BIOS memory size
128 Mbit
show more


ACPI version
3.0
show more


BIOS features
PCI 2.2
show more

Design

Product colour
Product colour
Black
show more


LED indicators
Fault, Network, Power
show more


Certification
UL60950-1 – CSA/CUL 60950-1, EN60950-1, CE – Low Voltage Directive 73/23/EEE, TUV
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
3.9 kg
show more


Height
Height
288 mm
show more


Depth
Depth
480 mm
show more


Width
Width
30.2 mm
show more
