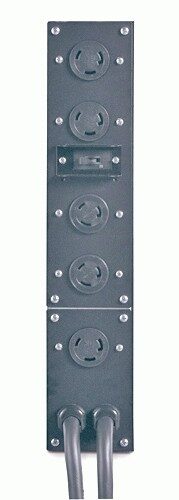

APC Service Bypass Panel – 200/208/240V Power Distribution Unit (PDU) Black

APC Service Bypass Panel – 200/208/240V. The product is black in color. It features an input connection type of NEMA L6-30P, and offers output connections of 2x NEMA L6-20R and 2x NEMA L6-30R. The cable length is 3.05 meters. It operates at an AC input frequency range of 50 to 60 Hz, with a load capacity of 5000 VA and a maximum input current per phase of 24 A. The panel is certified by CSA, EN 60950, GOST, IEC 60950, and UL 1778.

Design

Product colour
Product colour
Black
show more

Ports & interfaces

Input connection type
Input connection type
NEMA L6-30P
show more


Output connections
2x NEMA L6-20R
2x NEMA L6-30R
show more

Features

Cable length
Cable length
3.05 m
show more

Power

AC input frequency
50 – 60 Hz
show more


Load capacity
5000 VA
show more


Maximum input current per phase
24 A
show more


Maximum total current draw per phase
24 A
show more

Certificates

Certification
CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-25 – 65 °C
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
432 mm
show more


Depth
Depth
660 mm
show more


Height
Height
89 mm
show more


Weight
Weight
13.6 kg
show more

Packaging data

Package weight
Package weight
24.5 kg
show more


Package width
Package width
610 mm
show more


Package depth
Package depth
991 mm
show more


Package height
Package height
203 mm
show more
