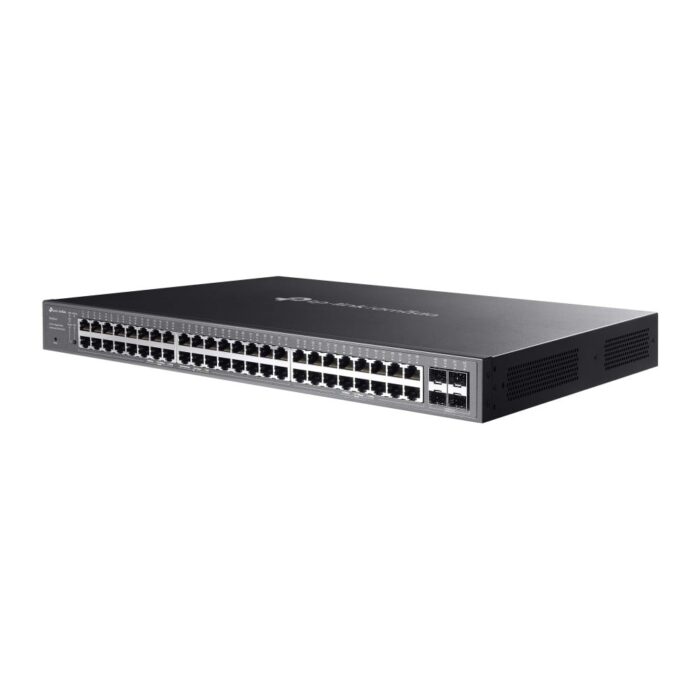

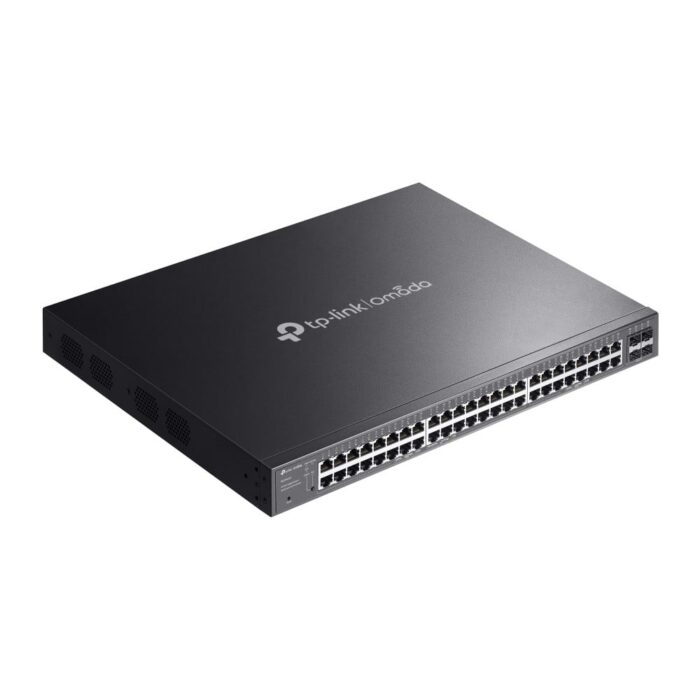

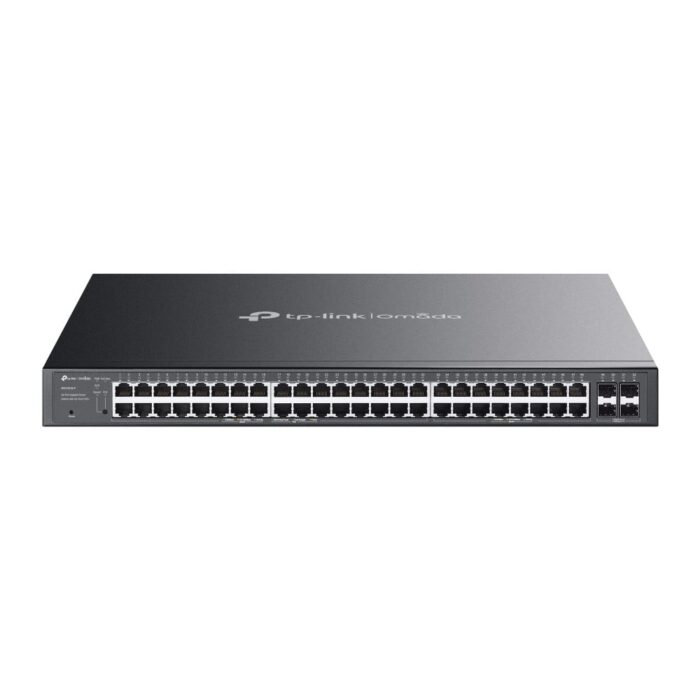

TP-Link SG2452LP Switch Smart 48xG (32 PoE+) 4xSFP

The TP-Link Omada 52-Port Gigabit Smart Switch with 32-Port PoE+ is a managed switch that operates at layers L2/L2+. It features 48 RJ-45 Ethernet ports, all supporting Gigabit Ethernet speeds (10/100/1000). The switch can handle up to 16,000 MAC address entries and has a switching capacity of 104 Gbit/s. It complies with several networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, and IEEE 802.3x. The device includes an AC-in jack for power connection and supports Power over Ethernet (PoE). It is designed for rack mounting with a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L2+
show more


Quality of Service (QoS) support
Yes
show more


Cloud-managed
Yes
show more


Web-based management
Web-based management
Yes
show more


Configuring Location Settings (CLI)
Yes
show more


ARP inspection
Yes
show more


System event log
Yes
show more


MIB support
Y
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
48
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
4
show more


Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3x
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


IP routing
Yes
show more


Active link detection
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
104 Gbit/s
show more


Forwarding rate
77.37 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Static route
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Security

DHCP features
DHCP relay, DHCP server
show more


IGMP snooping
Yes
show more


Loop protection
Yes
show more


Authentication type
Authentication type
RADIUS
show more


MAC address filtering
MAC address filtering
Yes
show more


Security algorithms
Security algorithms
SNMP, SNMPv2, SNMPv3
show more


SSH/SSL support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (max)
Power consumption (max)
304.5 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
32
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
230 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
1035.4 BTU/h
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
330 mm
show more


Height
Height
44 mm
show more
